Fiber 2X4 Bare Fiber Optical Switch for Telecommunication and Local Area Network
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Fiber 2x4 Bare Fiber optical Switch |
| Application: |
Medicine |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
ISO9001 |
Product Description

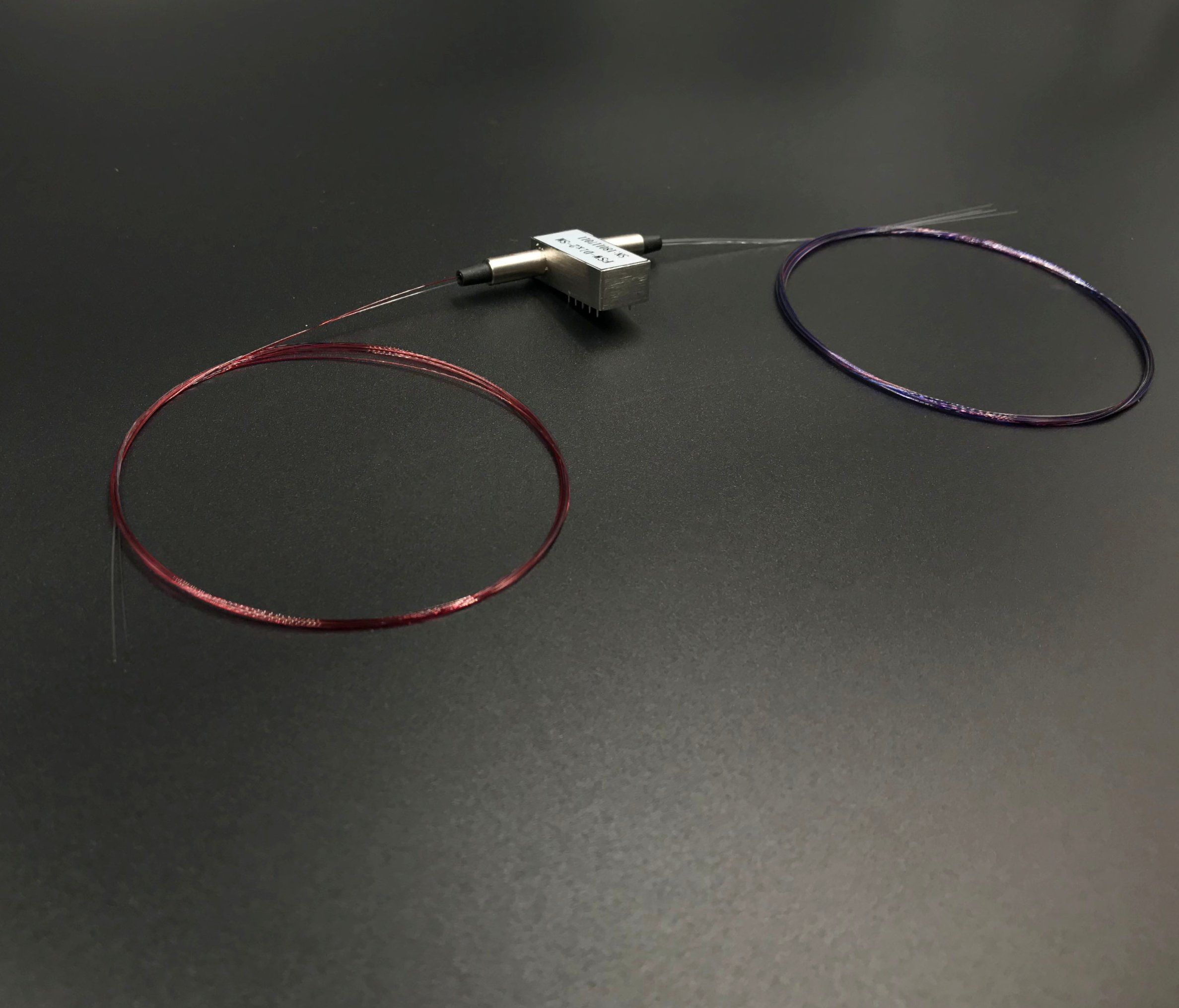

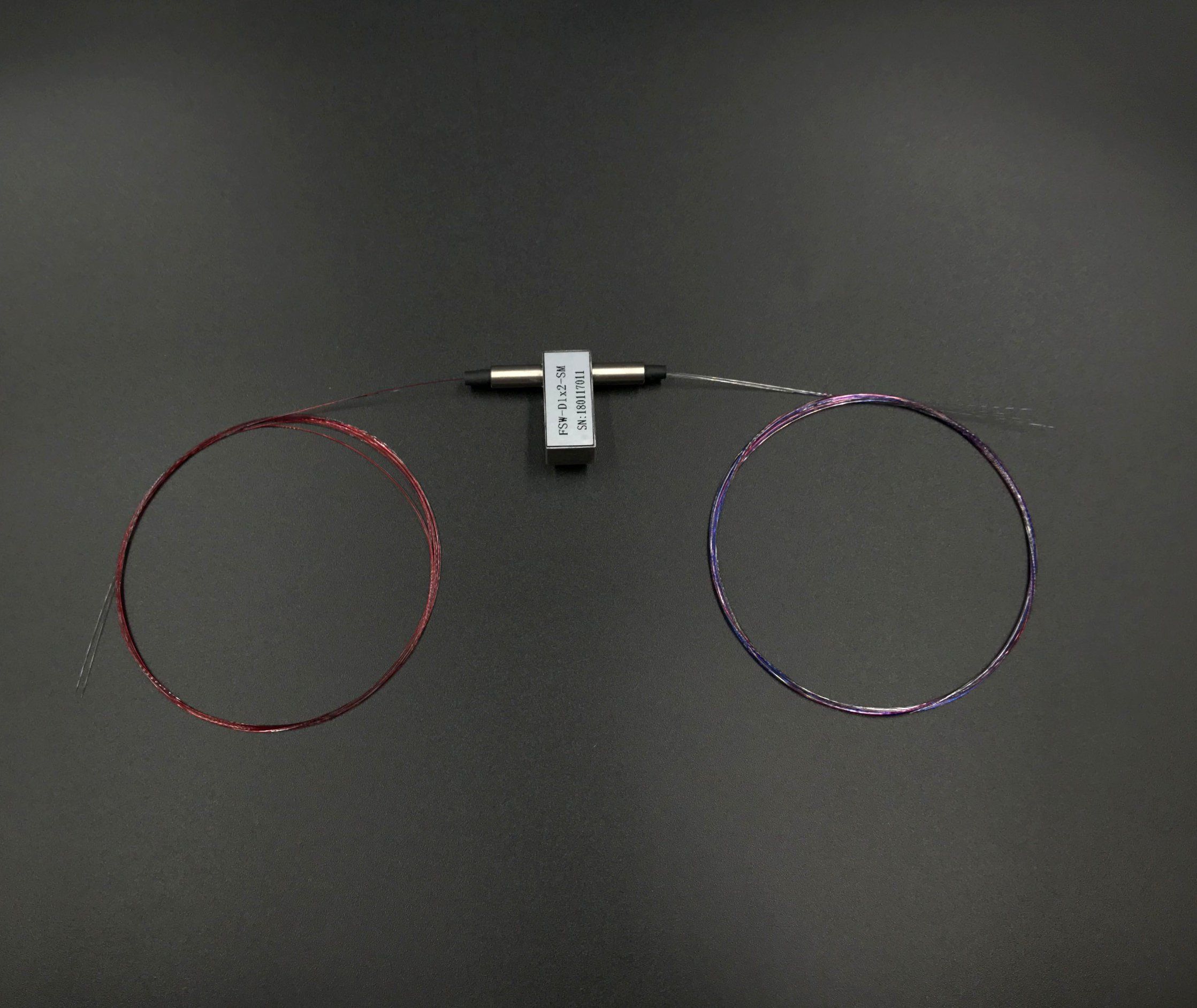

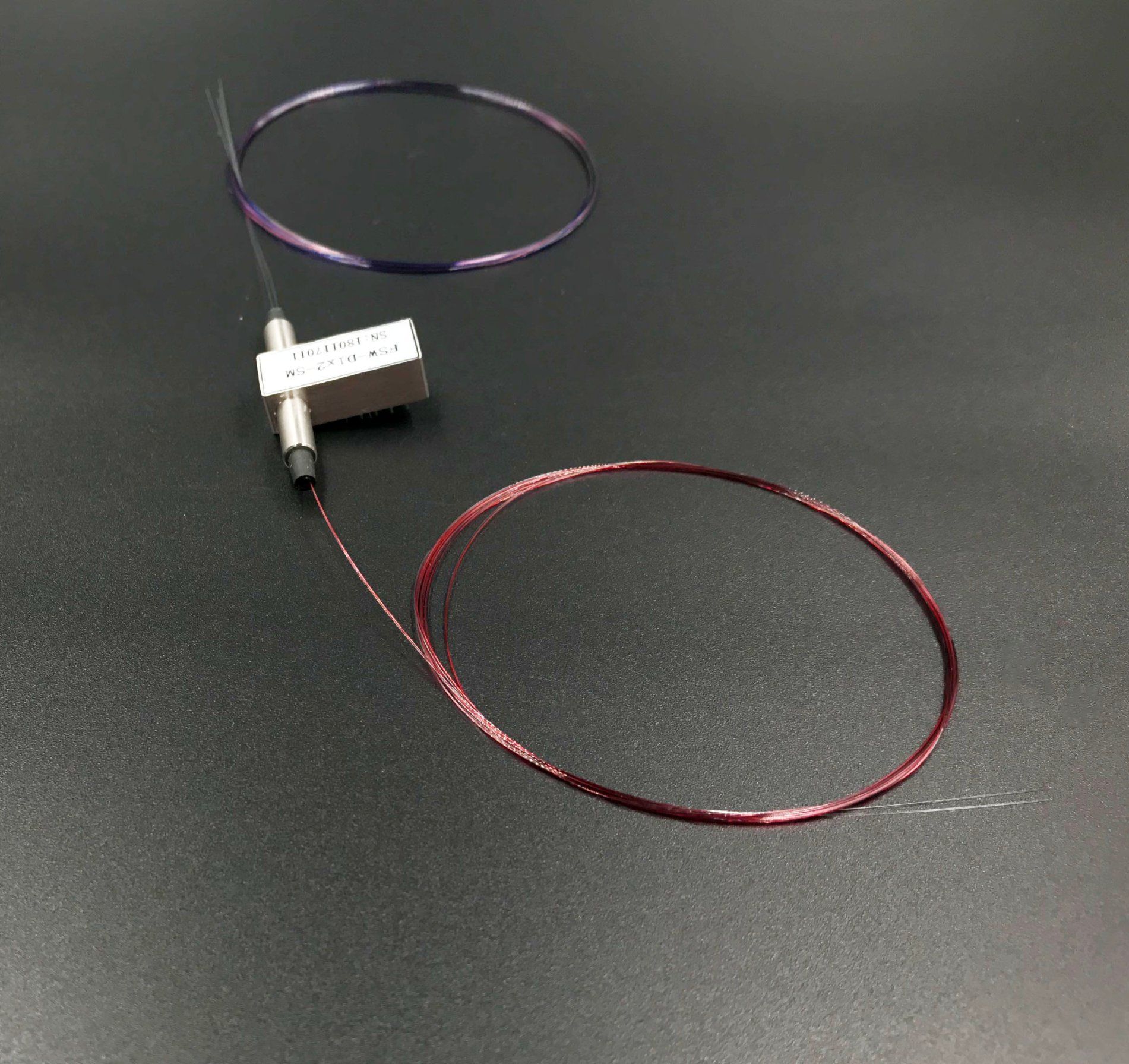

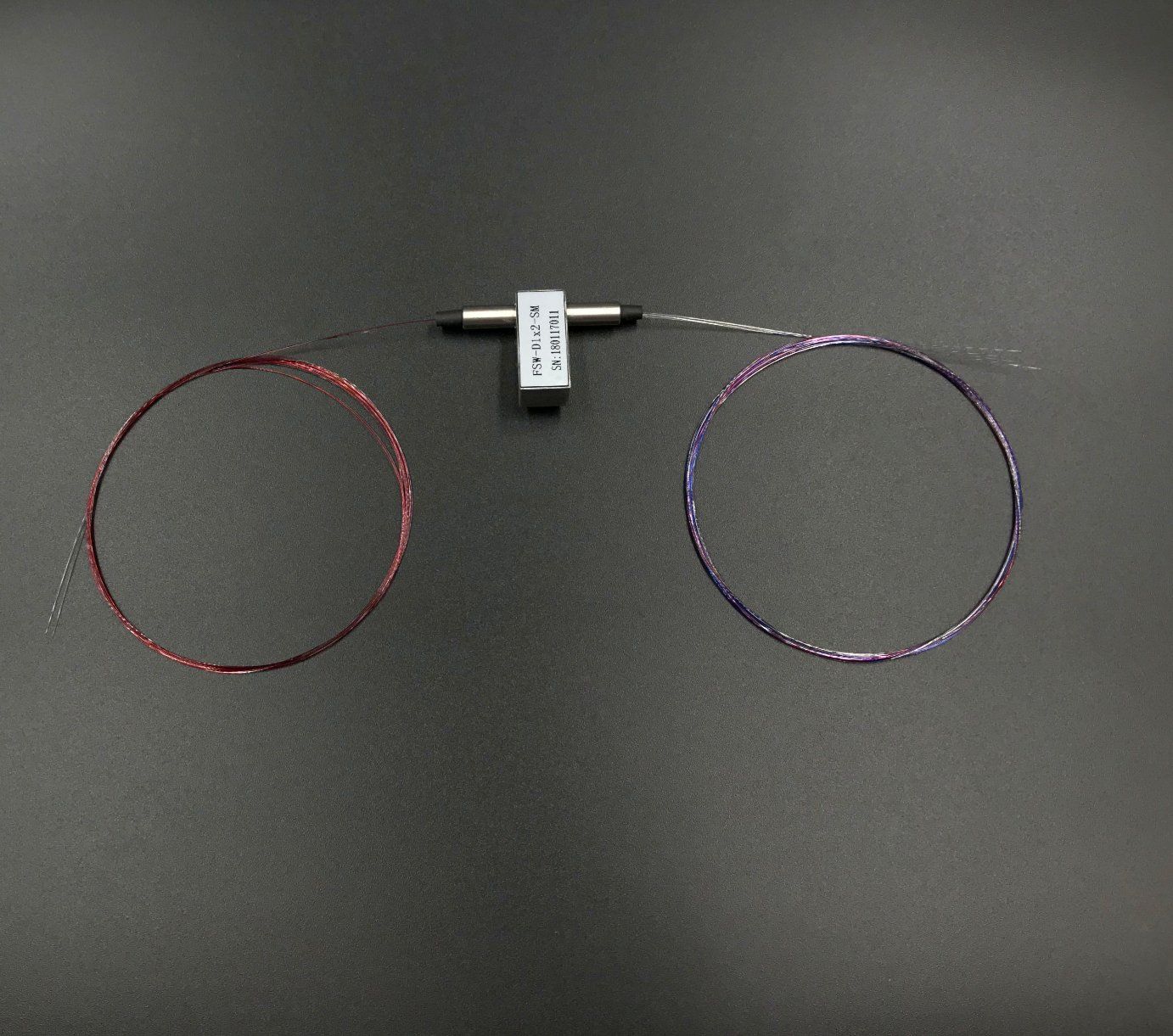

Dual 1x2 Mechanical Optical Switch(2X4)
Product Description:
The dual 1x2 fiber optic switch connects optical channels by directing or blocking an incoming optical signal into the output fiber. This is achieved using a patent pending opto-mechanical configuration and activated via an electrical control signal. A latching version preserves the selected optical path after the drive signal has
been removed, while the non-latching versions default to either the open or closed state when power is removed. The switch has integrated electrical position sensors. The new material based advanced design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as unmatched low cost.
| Applications: | Features: |
| Channel Blocking | Unmatched Low Cost |
| Configurable Add/Drop | Low Optical Distortions |
| System Monitoring | High Isolation |
| Instrumentation | High Reliability |
| | Epoxy-Free Optical Path |
Specifications:
| Parameters | Specifications | Unit |
| Operating Wavelength | 1260~1620(SM),850(MM) | nm |
| Insertion Loss | ≤1.0 | dB |
| Wavelength Dependent Loss | ≤0.25 | dB |
| Polarization Dependent Loss | ≤0.05 | dB |
| Temperature Dependent Loss | ≤0.25 | dB |
| Return Loss | SM≥55 MM≥35 | dB |
| Cross Talk | SM≥55 MM≥35 | dB |
| Switch Time | ≤8 | ms |
| Repeatability | ≤±0.02 | dB |
| Durability | ≥107 | times |
| Operating Voltage | 3 or 5 | V |
| Switch Type | Non-Latching/Latching | |
| Operating Temperature | -20~+70 | ºC |
| Storage Temperature | -40~+85 | ºC |
| Optical Power | ≤500 | mW |
| Dimension | 27.0L×12.0W×8.2H | mm |
Pin Configurations: | Type | Optical Path | Electric Drive | Status Sensor |
| D1×2 | Pin 1 | Pin 5 | Pin 6 | Pin 10 | Pin 2-3 | Pin 3-4 | Pin 7-8 | Pin 8-9 |
| Latching | P1-P3′,P2-P4′ | -- | -- | GND | V+ | Close | Open | Open | Close |
| P1-P1′,P2-P2′ | V+ | GND | -- | -- | Open | Close | Close | Open |
| Non-Latching | P1-P3′,P2-P4′ | -- | -- | -- | -- | Close | Open | Open | Close |
| P1-P1′,P2-P2′ | V+ | -- | -- | GND | Open | Close | Close | Open |
----------------------------------------------------FAQ---------------------------------------------------
Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty according to different products.
Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.
OPELINK Technology is a high-tech enterprise with a focus on the design and the production of optical communication and accessories. We are among the industry leaders here in China and we own that to our highly skilled and experienced production staff and engineers. We manufacture a complete selection of premium quality products including fiber optic splitters, optical WDM, fiber optic circulator and many other active optical components.
