Shenzhen Opelink Technology Co., Ltd. >> Fiber Cable Fast Connector Sc/Upc

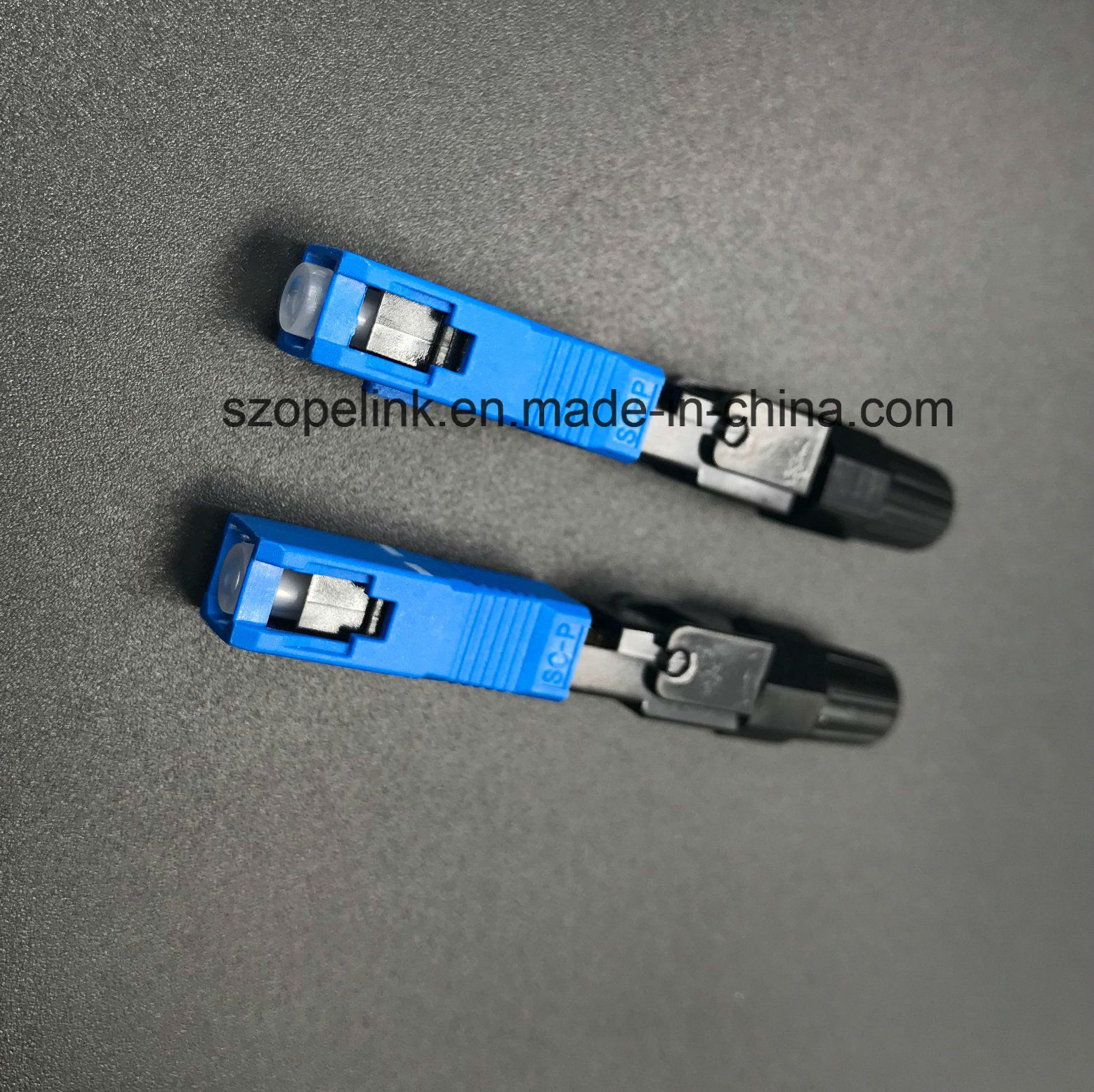

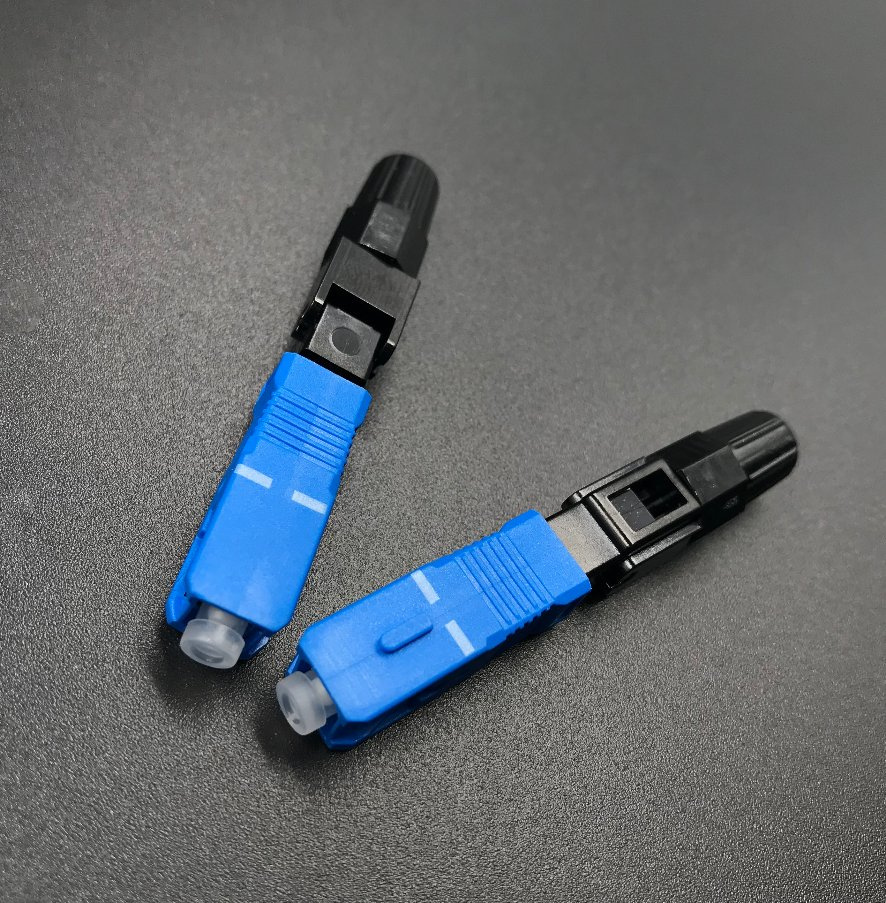

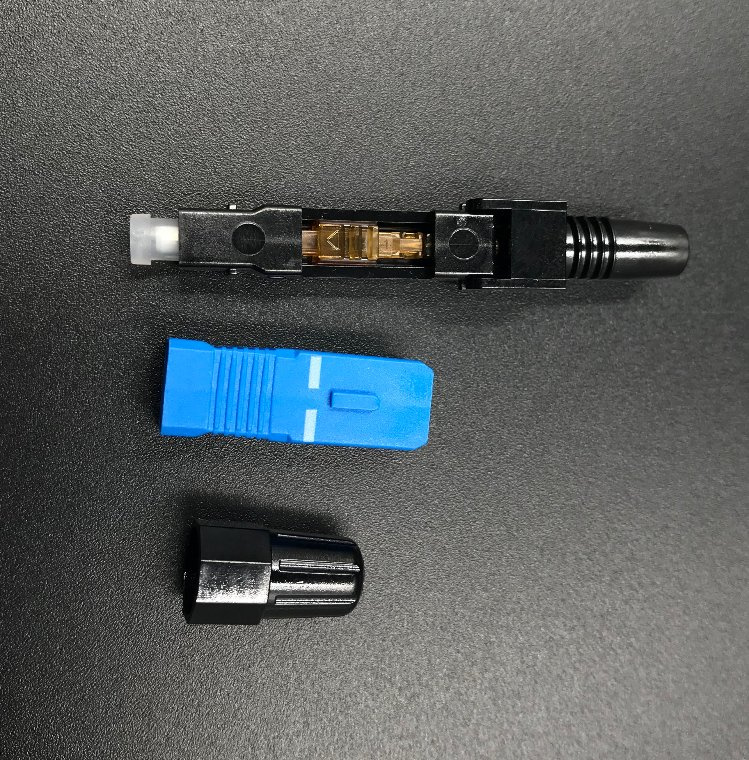

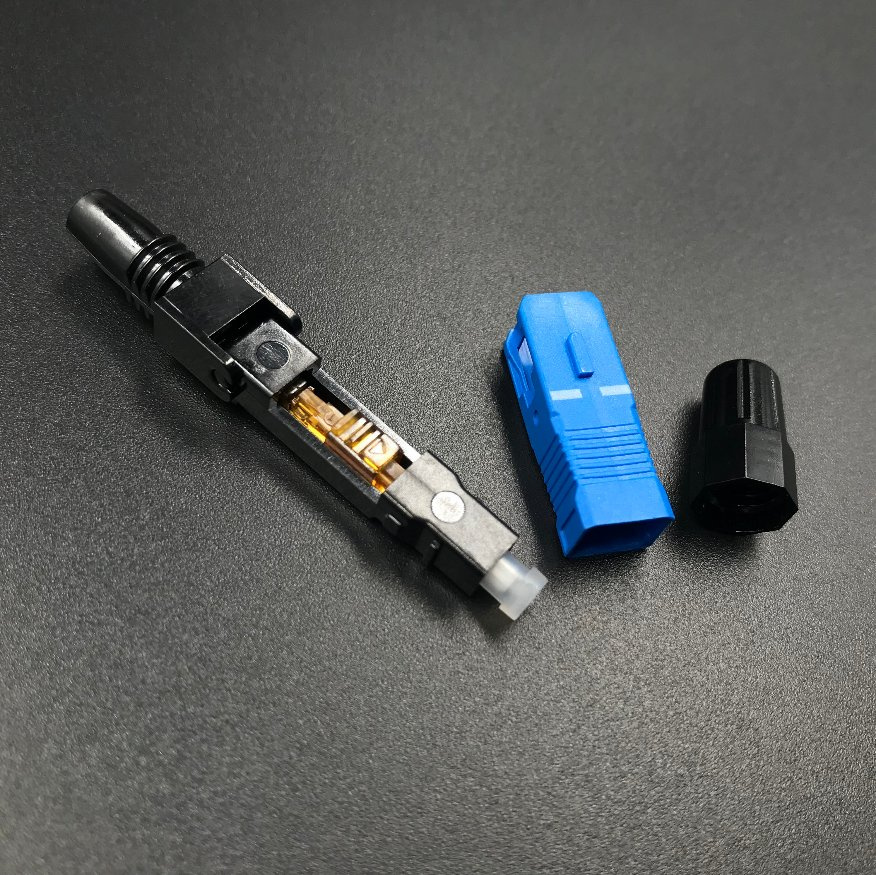

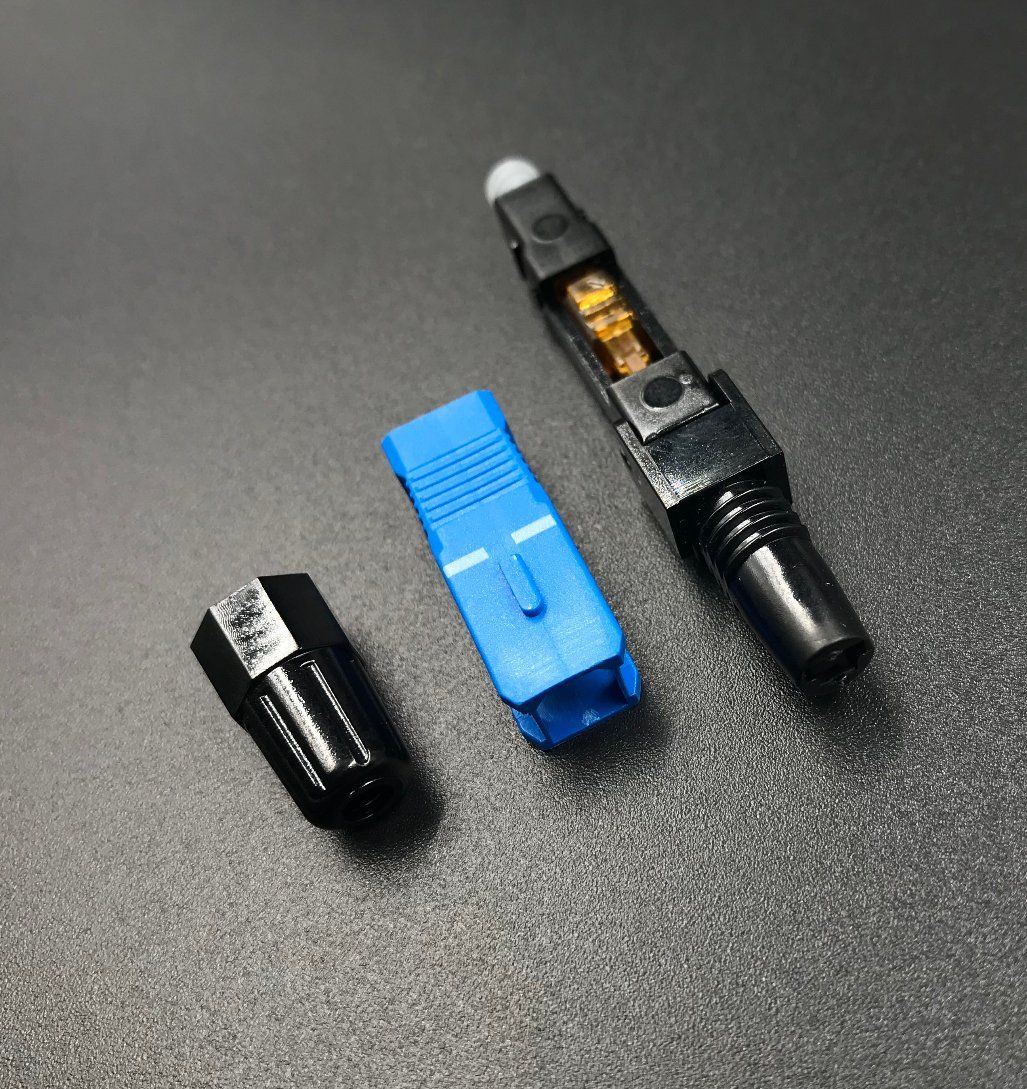

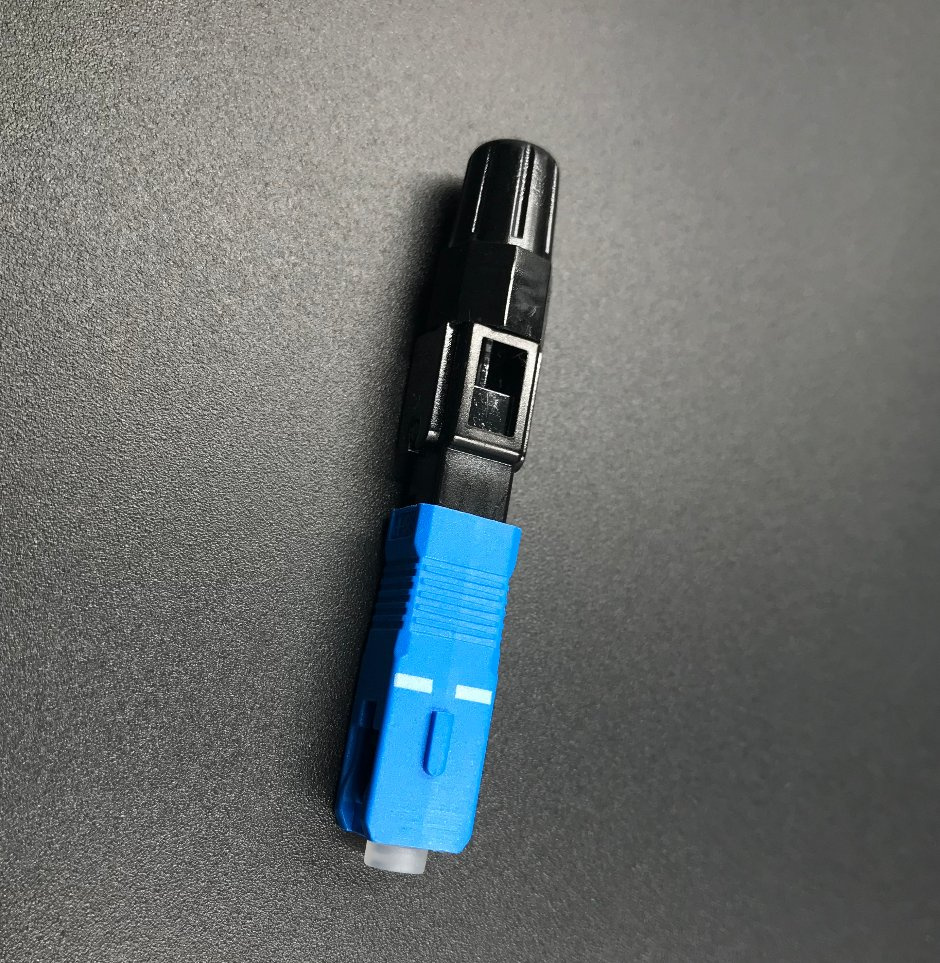

Fiber Cable Fast Connector Sc/Upc

Fiber Cable Fast Connector Sc/Upc
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: Fiber Cable fast connector SC/UPC
Certification: RoHS, ISO9001, UL
Operating Temperature: -40~85 Degree
Insertion Loss: Less Than 0.5
Return Loss: More Than 40
Optical Fiber Diameter: 0.125mm
Applications: 3.1*2.0mm Drop Cable
Connector: SC/PC
Product Code: 2301
Transmission Medium: Single-Mode
Structure: SC
Number Of Cores: Single-Core
Ferrule Endface: PC(',UPC)
Application: Communication, Medicine

Product Description

 Fiber Cable Adapter type VOA - FC




Feature:

Compact, low IL
Wide attenuation range
High precision
Comply to RoHS


Application:
Fiber communication on system test
Optical passive component test
Optics lab use
CATV, LAN,











Specification:

Attenuation Range0.8dB ~ 60dB
Working Wavelength1260-1650nm
Initical Additional Loss<0.8dB
RL>50dB
Fiber TypeSM28,9/125
Error0.02dB
PDL≤0.1dB
Working Temperature-0 ~ +70 ºC
Storage Temperature-40 ~ +85 ºC

Order Information:

typeEnd Face MaterialHousing  ColorRLAttenuation
SC=SC
FC=FC
LC=LC
MU=mu
ST=ST
SA=SC  Adap.
FA=FC  Adap.
P=PC
A=APC


P=plastics
M=metal
BL=Blue
GR=Green
BE=Beige
AQ=Aqua
ME=Metal
50=50dB
55=55dB
60=60dB
65=65dB


01=1dB
02=2dB
03=3dB
04=4dB
05=5dB
06=6dB
10=10dB
xx=other







----------------------------------------------------FAQ----------------------------------------------------

Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty according to different products.

Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.






OPELINK Technology is a high-tech enterprise with a focus on the design and the production of optical communication and accessories. We are among the industry leaders here in China and we own that to our highly skilled and experienced production staff and engineers. We manufacture a complete selection of premium quality products including fiber optic splitters, optical WDM, fiber optic circulator and many other active optical components.

Every stage PF production in our workshop is carefully controlled, from raw material selection to assembly, packaging and transport. We do this to guarantee quality and ensure that all of our customers are satisfied with their delivery.

In addition to our products sold in China, we also do business in France, the United States, Brazil, Russia, and many other countries. So far we have cooperated with Ericsson (Spain), Vodafone (Hungary), etc.

Moreover, OPELINK employs a professional foreign team in which most of members have more than 5 years experience in optical communication equipment.
