Fiber Cable with IEEE1138 Standard Opgw

Fiber Cable with IEEE1138 Standard Opgw
Price: US $ 10/Piece
Trade Terms: FOB,FCA,EXW
Min Order: 50/Roll
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Prod Model: OPGW
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber: Sm 652D
Size: 24core, 48core, etc
Lay1: AA Wire
Type: Single-mode Fiber
Application: Communication
Certification: CCC
Brand: Surelink
Sheath Material: Steel
Connection Structure: Opgw

Product Description

OPGW

1.Optical fiber unit
Single mode optical fiber
Unless otherwise specified in this specification, all requirements for optical fiber shall be mainly in accordance with ITU-T G. 652 D standard.


2.Core and cladding
Each optical fiber shall consist of a core made of fused silica or a composition.
The cladding intimately surrounding the core shall be also fused silica or a composition of slightly smaller index.

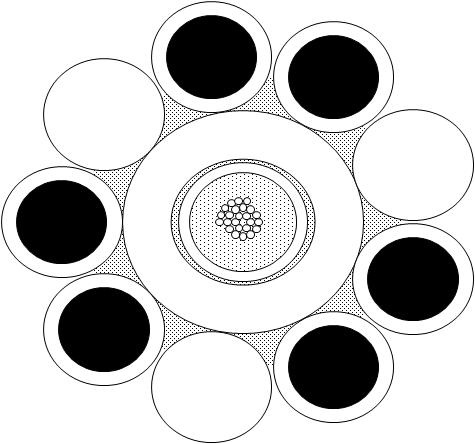

NamedNo.Diameter


CenterAluminum Tube16.20  mm
StructureSUS-Tube13.30  mm
DetailsLayer 120%AS wire63.09  mm


AA wire(LHA1)3














According to IEEE std 1138,IEC 60794-4 standards









Stranding direction of outer layer is "Right-hand"









Fiber No. & Type



24 G.652D
TechnicalStandard Diameter



12.38  mm
DataSupporting Cross Section



88.06  mm2




Section of AS wire

44.99  mm2




Section of AA wire

22.50  mm2




Section of Optical unit

20.57  mm2


Approximate mass



439.9  kg/km


Rated Tensile Strength



60.8  kN


Maximum Allowable Tension(40%RTS)



276.4  N/mm2


Everyday Stress(20%RTS)



138.2  N/mm2


Strain Margin Stress(70%RTS)



483.6  N/mm2


Modulus of Elasticity



112.6  GPa


Thermal Elongation Coefficient



15.6  ×10-6/ºC


Calculated D.C. Resistance at 20ºC



0.520  Ω/km


Short-Circuit Current (0.3 sec, 40~200ºC)



14.1  kA


Short-Circuit Current Capacity(40~200ºC)



59.5  kA2·s


Minimum Bending Radius



248  mm


Ratio between Pull and Weight



14.10  km
TemperatureInstallation



-10ºC~+50   ºC
Range:Transportation and Operation



-40ºC~+80   ºC
