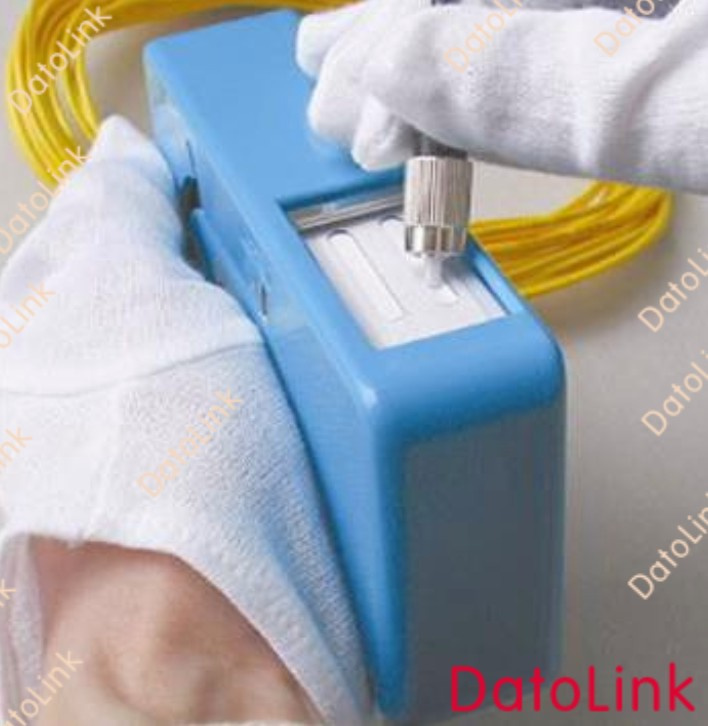

Fiber Connector Cleaner (dual-core cleaning)

Prod Model:	DTL-FC001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ferrule:	2.5mm or 1.25mm
Connectors Cleaned:	Sc, Sc2, FC, St, DIN, D4 Mu, LC, Mt, MPO, MT-RJ
Dimension:	130 × 75 × 40mm
Weight:	200g
Type:	Fiber Optic Cleaning Products
Wiring Devices:	Integrated Wiring
Certification:	RoHS
Condition:	New

Product Description

Wide usability: It can be used for SC, FC, ST, D4, LC, DIN and Bionic connectors. Cleaning tape is replaceable and this can reduce cost in long term application.

Specifications:

Cleaning TimesOver 500 times per reel (dual-core)
Cleaning Result(dB)-20 to -50 (Return Loss)
Operating Temperature(degree)-10 to +50
Weight(g)100

Optical Fiber Connector Cleaner

Fiber optic connector cleaners utilize a specially formulated dry cloth for thorough and efficient cleaning of fiber optic end-faces. They eliminate the need for hazardous cleaning fluids that can leave a residue. The cloth is extremely effective in removing grease, dust and other contaminants. These products offer substantial labor savings over conventional, high volume applications and have been adopted by manufacturers and carriers worldwide.

Features:

Suitable for cleaning tasks in factories and field applications
Environmentally friendly
Achieve high quality cleaning without alcohol or other solvents.
The cleaning tape is replaceable thus reducing the long term costs
This is an ideal tool for use when the connector face is available to you for cleaning
Specifically designed to clean ST, SC, FC, SMA D-4, DIN, and Diamond connector faces
Specification:
Ferrule: φ 2.5mm φ 1.25mm

Cleans per reel over 500 times
Connectors cleaned: SC, SC2, FC, ST, DIN, D4 MU, LC, MT, MPO, MT-RJ without pins,
Dimension W × H × D mm 130 × 75 × 40
Weight (g) 200g


Ferrule	φ2.5mm   φ1.25mm
Connectors  cleaned	SC, SC2, FC,ST,  DIN, D4 MU, LC, MT, MPO, MT-RJ without pins
Dimension(mm)	130(W) × 75(H) ×  40(D)
Weight (g)	200
