| Prod Model: |
LC Adaptors Simplex |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connector: |
LC-LC, Sc-Sc, FC-FC |
| Type: |
Single-Mode Fiber |
| Connection Structure: |
LC |
| Material Shape: |
Round Wire |
| Allowed Tensile Strength: |
1000n<10000n |
| Core: |
Single Core |
| Certification: |
VDE, Ce, RoHS, CCC, UL |
| Sheath Material: |
PVC |
| Transmission Medium: |
Single-Mode |
| Structure: |
LC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
| Application: |
Communication |
| Brand: |
Yinet |
Product Description

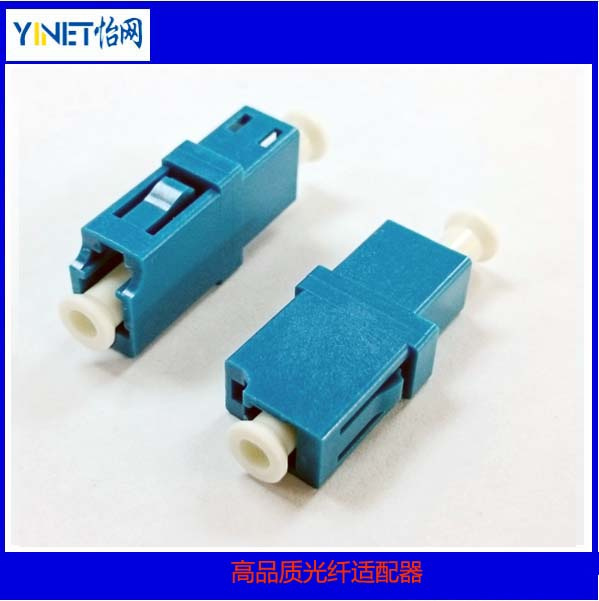

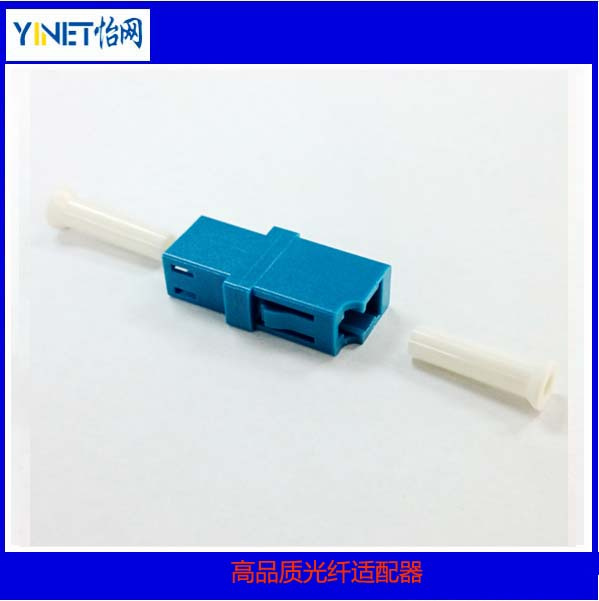

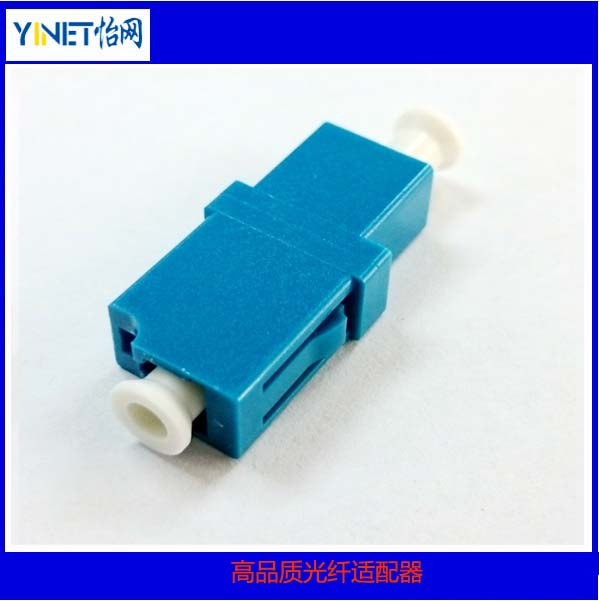

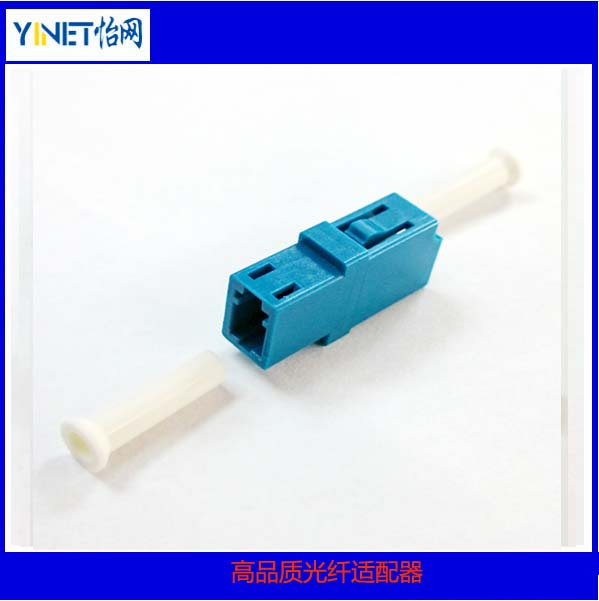

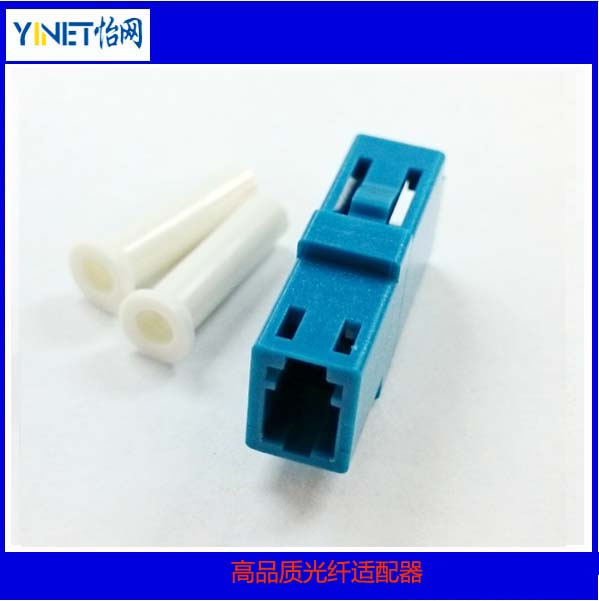

Fiber connector LC Adaptors Simplex
LC Simplex Fiber Optic Adaptors are comprised of a polymer/metal outer body and inner assembly fitted with a precision alignment mechanism. LC Simplex Optical Adapters are precision made and manufactured to demanding specifications. The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance.
Features:LC Adaptor with excellent changeability and directivity
100% Optic test (Insertion Loss)
Ceramic and phosphor bronze sleeve tube optional
Accurate external size
Individually packaged
Application:Fiber optic transmission system
CATV networks
LAN
Testing/Measurement Instruments
Fiber distribution frame, Mounts in Fiber Optic Wall Mount and Rack Mount Cabinets
Fiber distribution frame, Mounts in Fiber Optic Wall Mount and Rack Mount Cabinets
SC Fiber Optic Adaptors are comprised of a polymer/metal outer body and inner assembly fitted with a precision alignment mechanism.
SC Optical Adapters are precision made and manufactured to demanding specifications.
The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance.
Features:
SC Adaptor with excellent changeability and directivity
100% Optic test (Insertion Loss)
Ceramic and phosphor bronze sleeve tube optional
Accurate external size
Individually packaged
Application:
Fiber optic transmission system
CATV networks
LAN
Testing/Measurement Instruments
Fiber distribution frame, Mounts in Fiber Optic Wall Mount and Rack Mount Cabinets
Scope |
PC&APC |
Insertion Loss |
<0.2dB |
Operation Time |
500 times without distortion and crack, Variety Insertion Loss<0.1dB |
Insertion Loss |
-40 ~ +85°C |
Mechanical Durability |
50N, connection with two connectors, connection time of 30min |
Temperature |
40N, connection with two connectors, connection time of 30min |
Axial Tension Force |
>8 N |
Side Shear Force |
-40~+75°C |
