Fiber Insulation Electrical Cloth Tape

Prod Model:	KE30F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Raw Material:	Cotton Cloth
Adhesive:	Rubber
Temperature:	-10 to 40 Deg C
Application:	Winding Wire Coating Insulation
Type:	Insulation Tape
Chemistry:	Hybrid Insulation
Thermal Rating:	A 105
Maximum Voltage:	<10KV
Material:	Cotton Fabric
Color:	Black

Product Description

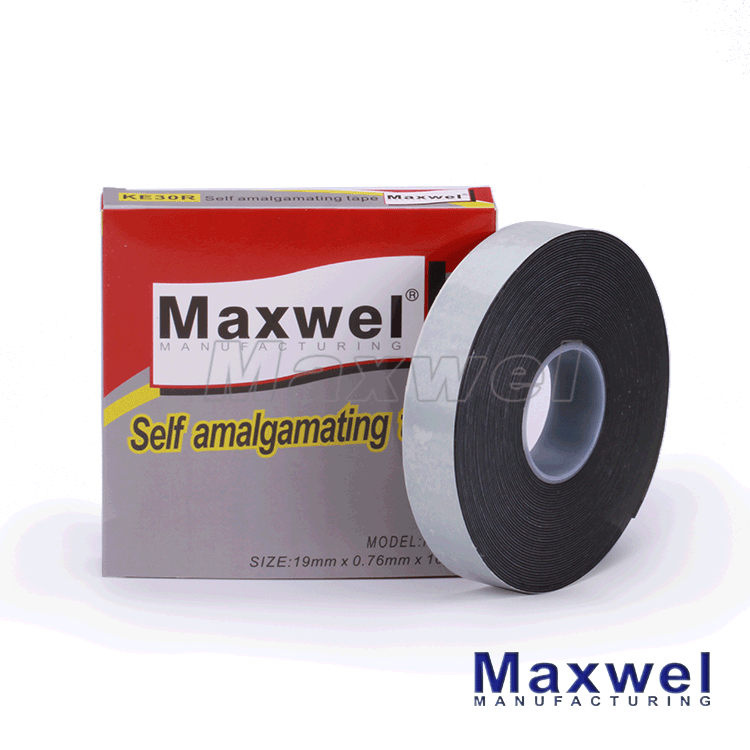

KE30R tape made from premium grand self bonding rubber mainly made from EPR(Ethylene Propylene Rubber). They are non-vulcanizing and shelf-stable with excellent electrical proprties. KE30R tape can be used as insulation for low voltage applications as well as insulation for joints up to 69KV.

Features:
1. Non-vulacanizing and highly conformable
2. Physical and electrical properties are unaffected by the degree if stretch
3. Can be stretched up to 800% to make void-free
4. Moisture-resistant insulation, self-amalgamating tape
5. Excellent electrical properties

Application:
1. Primary insulation for make stress cones on cables up to 35kv
2. Primary electrical insulation for cable jointing and terminating up to 69KV with up to 90 degree continuous operating temperature and 130 degree emergency overload temperature

Size:
1.19mm*0.76mm*9.14m
2.25mm*0.76mm*9.14m
3.38mm*0.76mm*9.14m
4.50mm*0.76mm*9.14m

Special size tape can be requested.

Model	Tensile  Strength	Elongation	Disruptive  Voltage
	(Mpa)	(%)	(KV/mm)
KE10	1.5	500	5
KE20	1.5	600	11
KE30R	1.8	800	32
KE30P	1.8	800	35

Application:
Insulative bandaging and fixation on joins of wire and cable under the voltage of 380V

Temperature: -10º C to 40º C

Properties
Easy to tear, no curling or deforming at the cuts, strong fixation after bandaging. Safe and reliable.


Popular in Russia.

Quality warranty!
Competive prices!

Items	Index
Voltage resistance(1000V x 1Min. ):	Non-puncture
Adhesive performance: The sample' s relative shed length within 1 minuter under standard load	≤ 50%
Adhesive performance after aging: The relative shed length within 1 minute under 50%
Standard load of(70° c x 24h)	≤ 50%
Corrosiveness(copper, aluminum)	None
