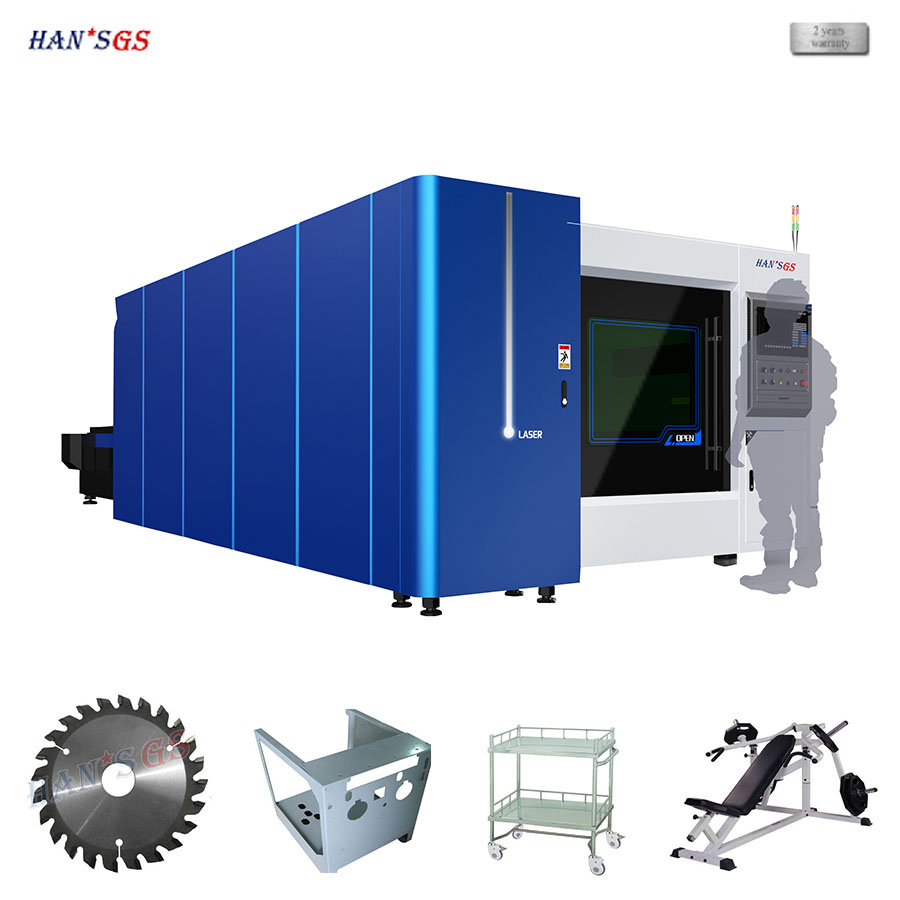

Fiber Laser Cutting Machine for Metallurgical Equipment, Elevators
| Price: |
US $ 3000-150000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
GS-LFDS3015 |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Certification: |
Ce, ISO 9001:2000 |
| Automation: |
Semi-Automatic |
| Condition: |
New |
| Type: |
Laser Cutting Machine |
| Type For Fold-Bending Machine: |
Laser Cutting Machine |
| Type For Pipe And Tube Bending Machine: |
Laser Cutting Machine |
| Power Source: |
Fiber Laser |

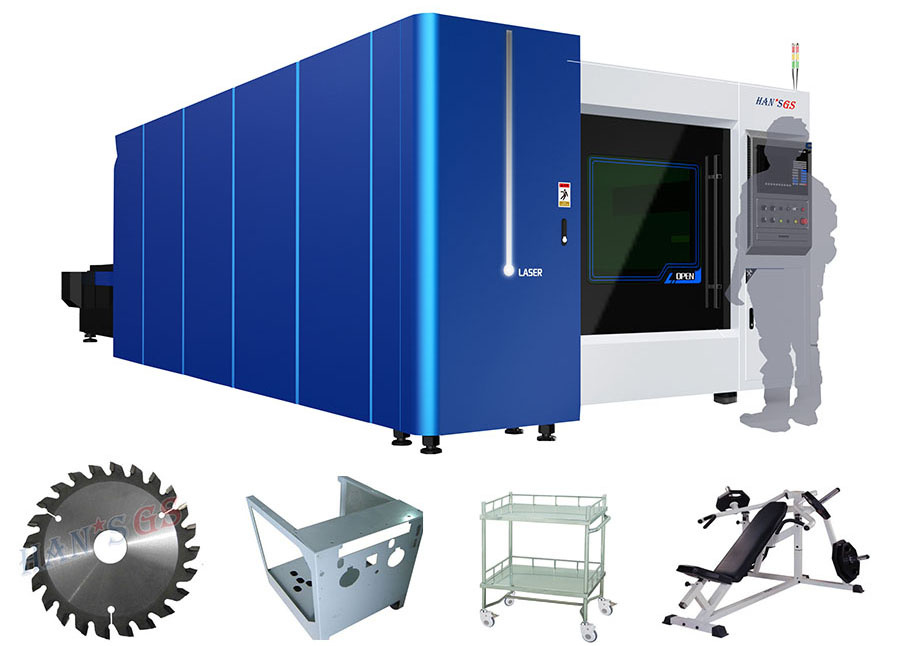

Product Description
fiber laser cutting machine for metallurgical equipment, elevatorsFunctions of GS-LFDS3015 laser cutter
1. Equipped with exhaust device, have good exhausting effect and little pollution.
2. Small occupied area, high system integration, convenient to operate and maintenance,24 hours continuous working.
3. The water chiller has good safety protection function, such as over temperature, lack phase, pressure, water-break, undervoltage, overload, etc. With stable performance, satisfied the cooling requirement of laser source.
Product
Fiber Laser Cutting Machine Technical Parameters | Model | GS-LFDS3015 | GS-LFDS3015 | GS-LFDS3015 |
| Laser source medium | Fiber |
| Cutting range(L*W) | 3000mm × 1500mm | 3000mm × 1500mm | 3000mm × 1500mm |
| Z axle stroke | 150 mm |
| Max cutting speed | 40m/min | 42m/min | 45m/min |
| Max positioning speed | 140m/min |
| Wok platform size/Max height of feeding material | 4250x2500mm/more than 120mm |
| Cooling form | water cooling |
| Laser wavelength | 1070nm |
| Output power of laser source | 1000W (imported) | 1500W (imported) | 2000W (imported) |
| Min. cutting gap | ≤0.1mm | ≤0.125mm | ≤0.125mm |
| Positioning accuracy of X, Y and Z axles | ±0.03 mm |
| Repeated positioning accuracy of X, Y and Z axles | ±0.02 mm |
Thickness of cutting material
(according to material) | 0.2-8mm | 0.2-12mm | 0.2-16mm |
| Drive model | Imported servo motor |
| Power requirement | 380V,50/60Hz |
| Working temperature | 5ºC-45ºC |
| Continuous working time | 24 Hours |
| Machine weight | About 5950Kgs |
| Outer dimension | 7828mm x 3741mm x 1940mm |
| Total protection level of power supply | IP54 |
Advantage of Fiber Laser Cutting Machine | Model of Laser Source | Fiber | CO2 | Disc |
| Electro-optical Conversion Efficiency | 30% | 10% | 15% |
| Max. Output | 50Kw | 20Kw | 8Kw |
| BPP(4/5Kw) | <2.5 | 6 | 8 |
| Life of Diode Pumped | >100,000 | NA. | 10,000 |
| Occupied Area(4/5Kw) | <1M2 | 3M2 | >4M2 |
| Maintenance | no need | need | Often |
| Soft Processing | more suitable | unsuitable | suitable |
| Stability | best | good | good |
| Absorption rate%--steel | 35 | 12 | 35 |
| Absorption rate%--aluminum | 7 | 2 | 7 |
| Replaced Parts | High brightness semiconductor laser broadband single core, more than 100,000 hours of pump. Damage to one of the semiconductor does not affect the normal work of the laser, but less and less power, because each semiconductor pump sources are used to separate each other. | Laser work requires gas
supplement, reflection lens replacement.
| Semiconductor Bar (array) maximum pulse model 5000 hours or 10000 hours continuous mode. Laser use the pump sources are used in the process of often need to change, each time change need to be between $200,000-230,000. |
Company InformationHans Goldensky Laser System Co., Ltd. is one of the four manufacturing base of Han's Laser Technology Industry Group Co., Ltd.Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.

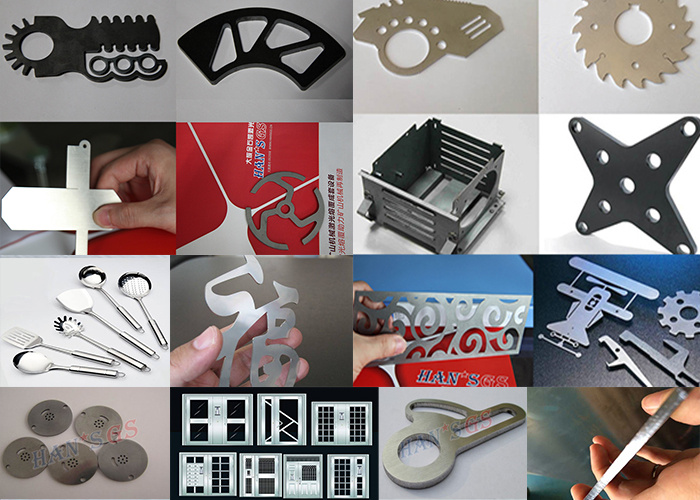

Application IndustryWidely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, kitchen utensils and appliances, craft gifts, tool processing, decoration, advertising and other manufacturing industries.
Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.
Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
