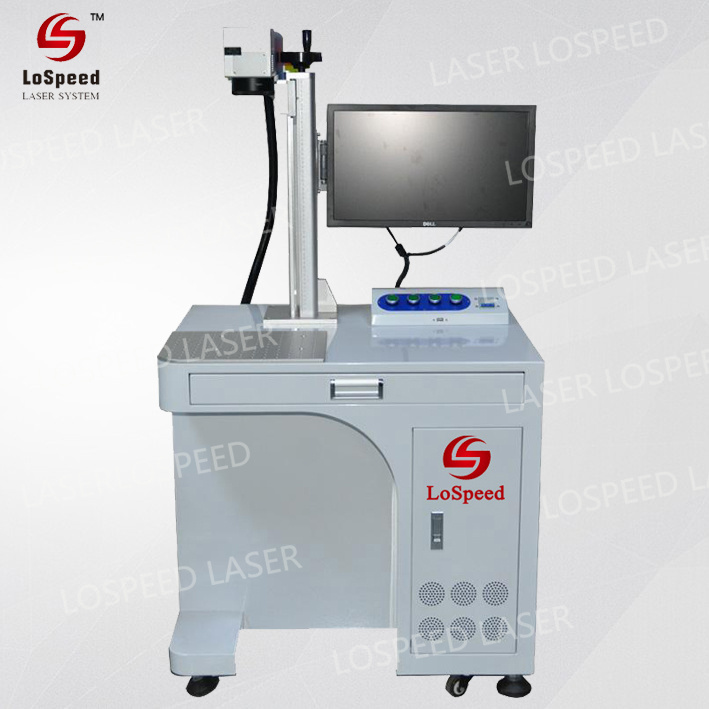

Fiber Laser Marking Machine for Plastic Automobile Parts
| Price: |
US $ 3200-3500set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Model: |
Ls-Ylp-30L |
| Laser Power: |
20W;30W;50W;60W |
| Power Consumption: |
<500W |
| Wavelength: |
1064nm |
| Engraving Range: |
75*75mm;110*110mm;Optional |
| Engraving Depth: |
1.2mm |
| Minimum Line Width: |
0.012mm |
| Minimum Character: |
0.1mm |
| Repeated Accuracy: |
+-0.003mm |
| Life Of Laser Module: |
100000hrs |
Product Description
Fiber Laser Marking Machine for Plastic Automobile Parts>>>>>>Equipment Description<<<<<<Lospeedlaser develops and produces complete air cooling Optical Laser marking system in china.
It is environments friends, low consumption, fully automatically and leading laser system. This creative laser system makes the optical conversion rate up to 38%-50%. The air cooling can meet the system is small and compact size. Fiber output, can flexibly marks 3D processing system. The backward reflecting solator, which used the particularity of wavelength and direction of laser, and the special structure inside the backward reflecting isolator can block the laser reflecting by work piece to avoid the laser entering the laser oscillator again to damage the laser oscillator.
Applicable Industry
Translucent plastic buttons, IC chips, digital product components, precision machinery, jewelry, sanitary ware, measuring and cutting tools, watch glasses, electrical appliances, electronic components, hardware accessories, hardware tools, mobile communications components, automobile parts, plastic products, medical equipment, building materials, pipes and other high-precision product marking.

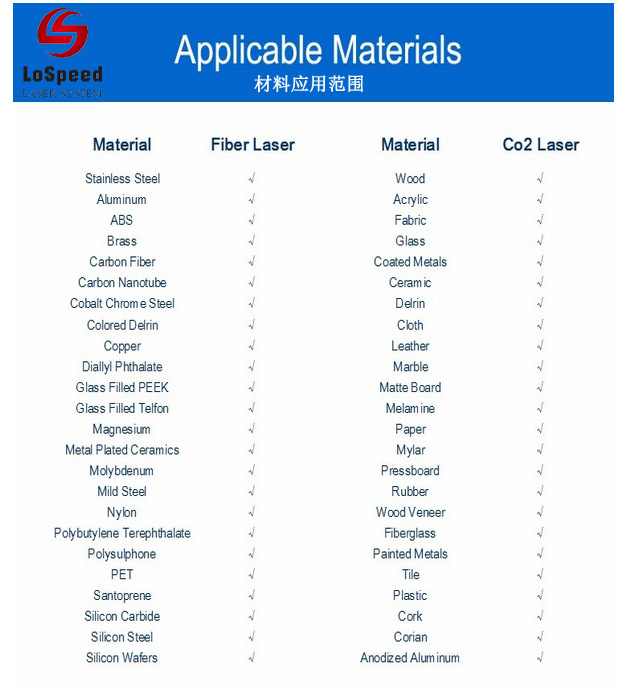

Applicable Materials
Metals and a variety of non-metallic materials, high hardness alloys, oxides, plating ,coating, ABS, epoxy resin, ink, plastic, etc.

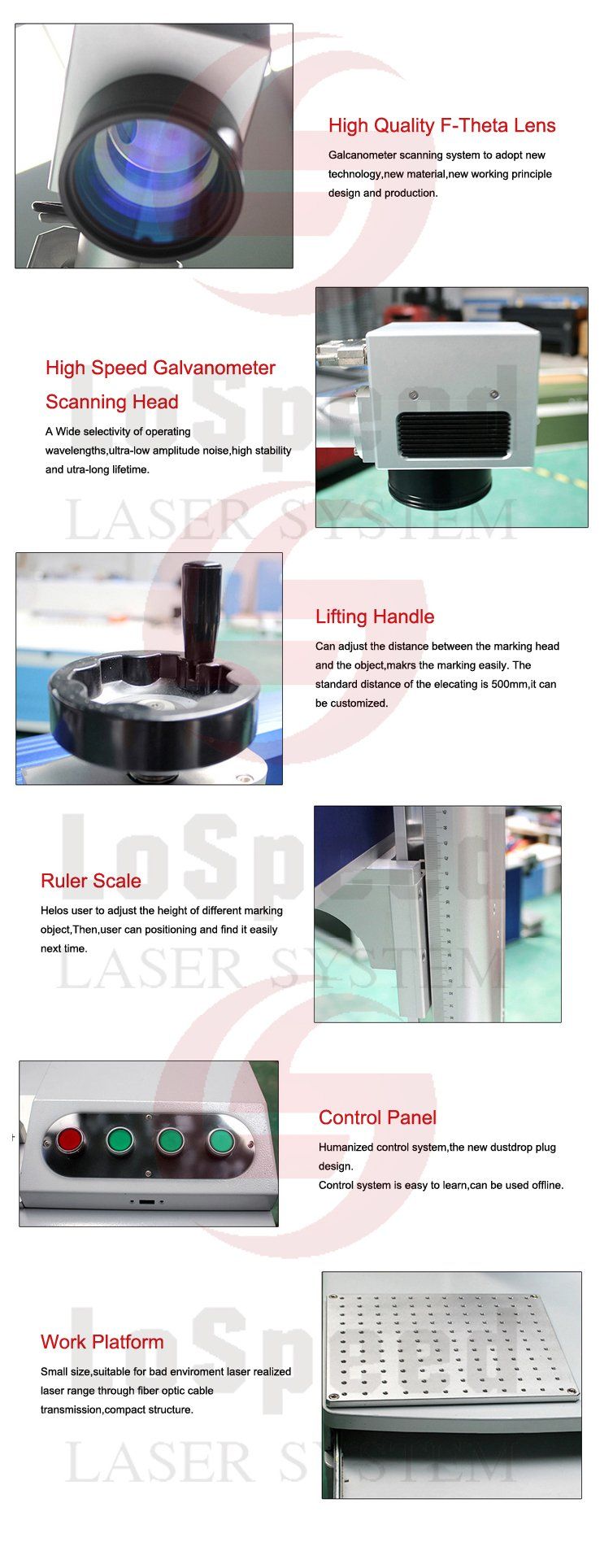

>>>>>>Machine Features<<<<<< - Minimal Maintenance
- Diodes have a lifetime of more than 80,000hrs
- High quality permanent marking
- Environment friendly and safe Machinery
- Works both on Metal and Non-metal
>>>>>>Technical Parameters<<<<<< | Model | YLP-20J | YLP-30J |
| Power | 20W | 30W |
| Wavelength | 1064nm | 1064nm |
| Beam Quality | M2<1.3 | M2<1.3 |
| Output Power | 10%-100%(continuously to be adjusted) | 10%-100%(continuously to be adjusted) |
| Output Frequency | 20KHz-100KHz(continuously to be adjusted) | 20KHz-100KHz(continuously to be adjusted) |
| Power Stability(8h) | <±1%rms | <±1%rms |
| Focus Spot Diameter | <0.01mm | <0.01mm |
| Engraving Range | ≤400*400mm(customized) | ≤400*400mm(customized) |
| Engraving Depth | 1.2mm | 1.2mm |
| Engraving Speed | 800 standard characters/second | 800 standard characters/second |
| Minimum Line Width | 0.012mm | 0.012mm |
| Minimum Character | 0.1mm | 0.1mm |
| Repeated Accuracy | ±0.003mm | ±0.003mm |
| System Operation | Windows XP/2000/98 | Windows XP/2000/98 |
| Cooling Mode | Air Cooling | Air Cooling |
| Environment Temperature | 10ºC~35ºC | 10ºC~35ºC |
| Environment Humidity | 20%-80% | 20%-80% |
| Power Requirement | 220V/Singlephase/50Hz/<400W | 220V/Single phase/50Hz/<400W |
| Life of Laser Module | 100000Hrs | 100000Hrs |
| Host Size | 800mmx650mmx1435mm | 800mmx650mmx1435mm |

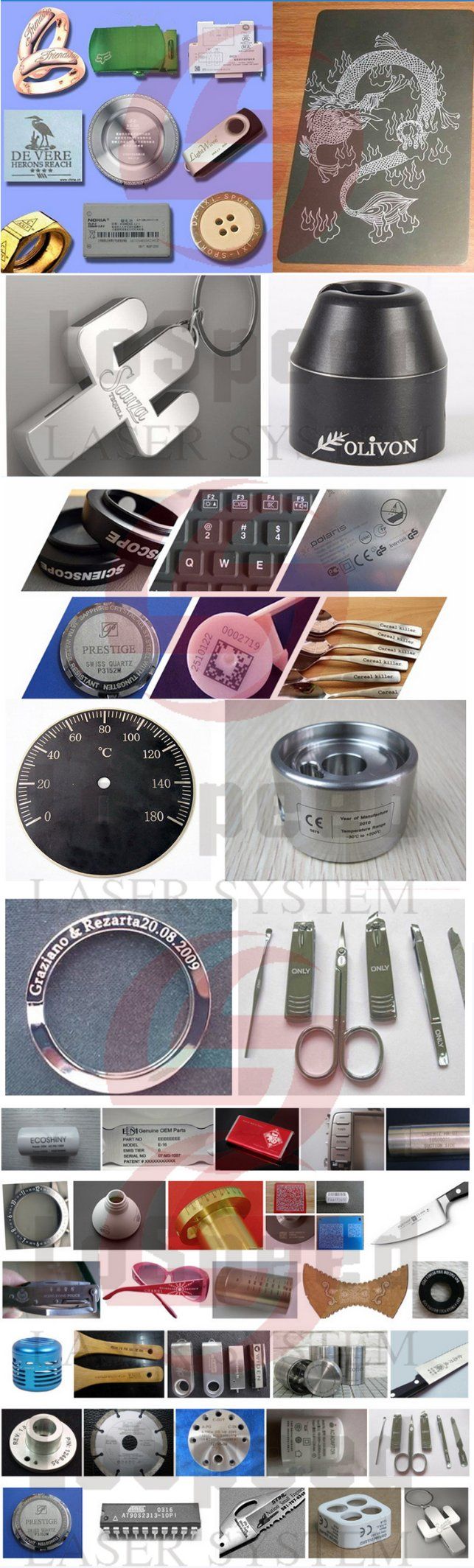

>>>>>>Laser Marking Sample Show<<<<<<
>>>>>>Company Information<<<<<<LoSpeed Laser Company is a modern professional Hi-Tech enterprise, specializing in manufacturing of Fiber Laser Marking Machine,CO2 Laser Marking Machine,UV Laser Marking Machine, Portable Laser Marking Machine,Mini Handheld Laser Machine,and Laser Engraver Machine, Laser Tube, Laser Power Supply, Laser Optics and Laser accessories etc.
Lospeed Laser mainly product is including:
Metal Laser Marking Machine with Max Super Laser Generator for Sale , Mini Laser Engraver, Co2 Laser Tube, Laser Focusing Lens, Laser Reflector Mirror, Laser Power Supply, Laser Cooler Unit, Laser Scanner Head, Laser Control System, Laser Cutting Head, Beam Expander, Red Pointer,Laser Rotary Table,3D Laser Table,Laser Rotary Chuck,Laser accessories etc.>>>>>>Contact Us<<<<<<Lospeed Laser is a real manufacturer of fiber laser marking machine,contact us for further information if you are interested,thanks a lot.
Please advise us following inforamtion to recommend you most suitable machine:
1.What's kind of material do you want to mark? metal parts or non metal material?
2.What's the max working area do you need? we can provide you with 110*110mm, 175*175mm, and 220*220mm, 300*300mm, or customized as your demand
