| Prod Model: |
GS-LFDS3015 |
| Power Source: |
Fiber Laser |
| Power: |
500W-4000W |
| CNC Or No: |
Yes |
| Condition: |
New |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Certification: |
Ce, ISO 9001:2000 |
| Drive Typer: |
Imported Servo Motor |
| Cooling Form: |
Water Cooling |
Product Description

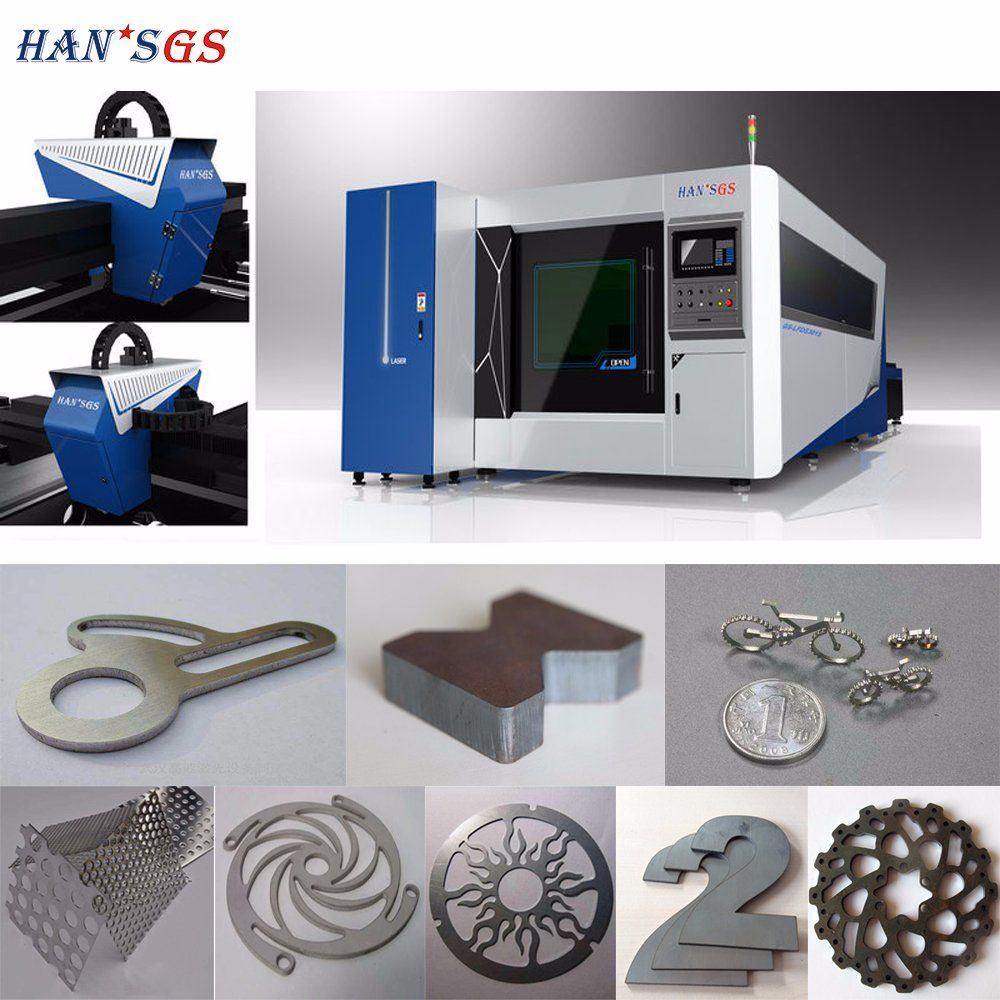

Fiber Metal Cutting Machinery Laser Cutter With IPG/Raycus Laser Source> > >Product Introduction

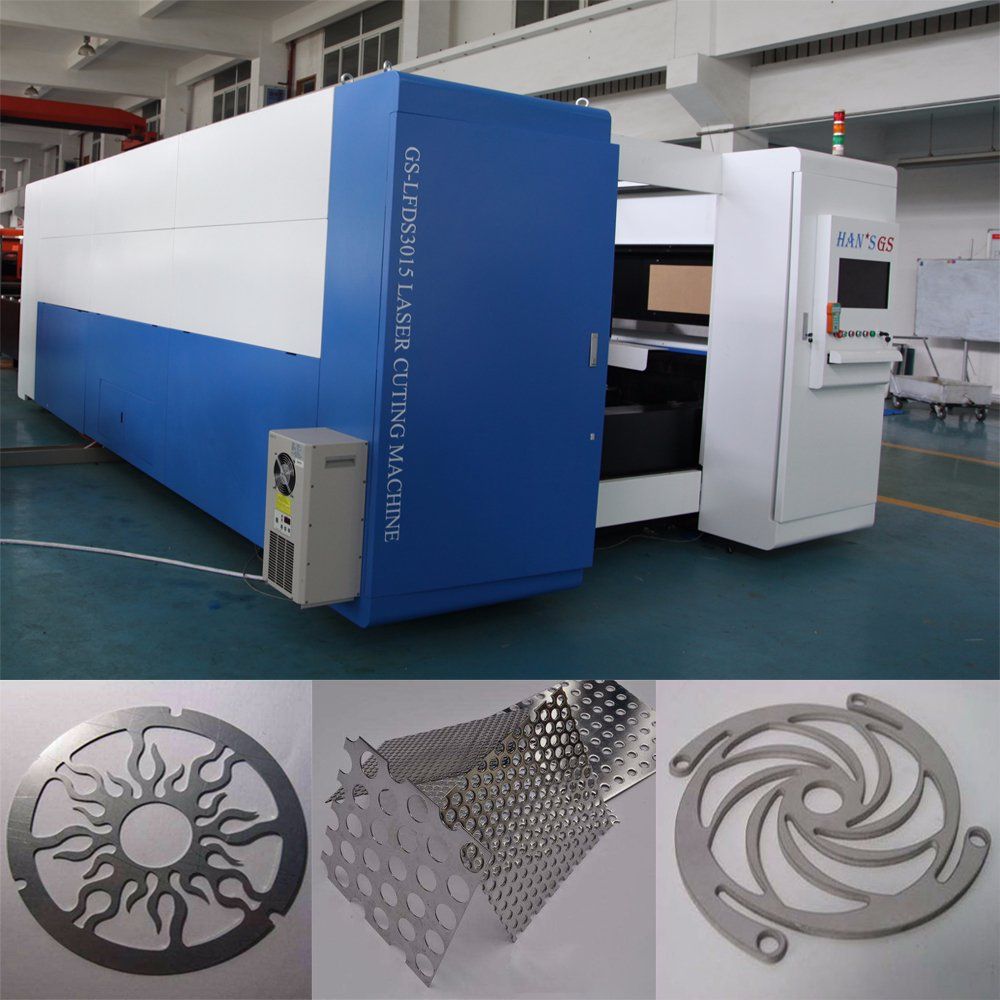

GS-LFDS3015 fiber cutting machine is one of the Han's GS mature products with international advanced level. The equipment has powerful cutting ability, outstanding cutting speed, low running cost, excellent stability, high quality processing, strong adaptive capacity and other incomparable advantages.
This equipment is widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, kitchen utensils and appliances, craft gifts, tool processing, decoration, advertising, metal processing and other manufacturing industries.> > >Laser cutting advantages over other thermal cutting methods1.High speed: Capable to cut sorts of metal board with air blowed; the cutting speed can reach dozens of meters per min.
2.High quality: good quality of cutting edge with less deformation, flat and elegant surface.
3. High precision: Adopt high precision drive structure with imported service motor, ±0.03mm positioning precision
4.High efficiency: Software with strong function, capable to design sorts of shapes, letters for cutting with easy and convenient operation.
5.High protection: the laser source and machine tool is comprehensively sealed to ensure the security of the operator, the whole working process can be viewed and inspected through the glass.
> > >Fiber Laser Cutting Machine Technical Parameters | Model | GS-LFDS3015 | GS-LFDS4020 | GS-LFDS6020 |
| Laser source medium | Fiber |
| Cutting range(L*W) | 3000mm × 1500mm | 4000mm × 2000mm | 6000mm × 2000mm |
| Z axle stroke | 250 mm |
| Max positioning speed | 120m/min |
| X,X,Y axle Max accelerate speed | 1.2G |
| Cooling form | water cooling |
| Laser wavelength | 1070nm |
| Output power of laser source | 1000W~ 4000W(imported) |
| Min. cutting gap | ≤0.1mm |
| Positioning accuracy of X, Y and Z axles | ±0.03 mm |
| Repeated positioning accuracy of X, Y and Z axles | ±0.01mm |
| Drive model | Imported servo motor |
| Power requirement | 380V,50/60Hz |
| Working temperature | 5ºC-45ºC |
| Continuous working time | 24 Hours |
| Outer dimension | 8500mm x 3800mm x 2000mm |
| Total protection level of power supply | IP54 |
> > >Fiber Laser Cutting Machine Working Principle

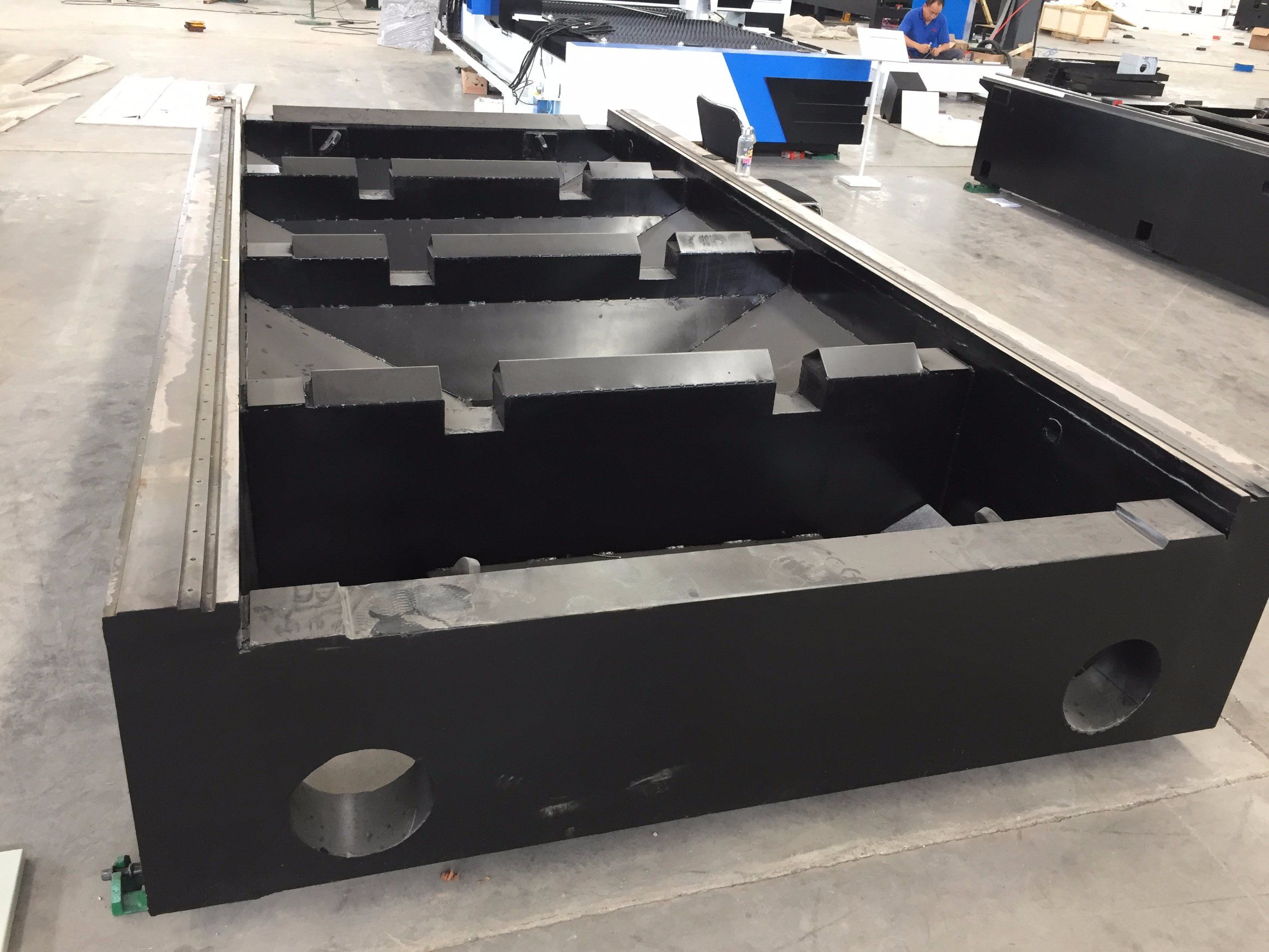

> > >Machine Bed details
Machine consists of machine host, computer control systems, fiber laser cutting head, chillers, auxiliary decency components. Machine gantry structure, using Japan YASKAWA servo motors drive rack and pinion feed, high precision and fast speed, dual-drive gear and rack transmission instead of the traditional ball screw transmission which makes the machine empty moving speed up to 40-50meters/Min.
Bed gantry, machine welded structure, aging treatment after annealing, roughing, finishing, can completely eliminate stress welding and machining, rigid, high precision, can be maintained long-term use not deformed( at least 20 years).

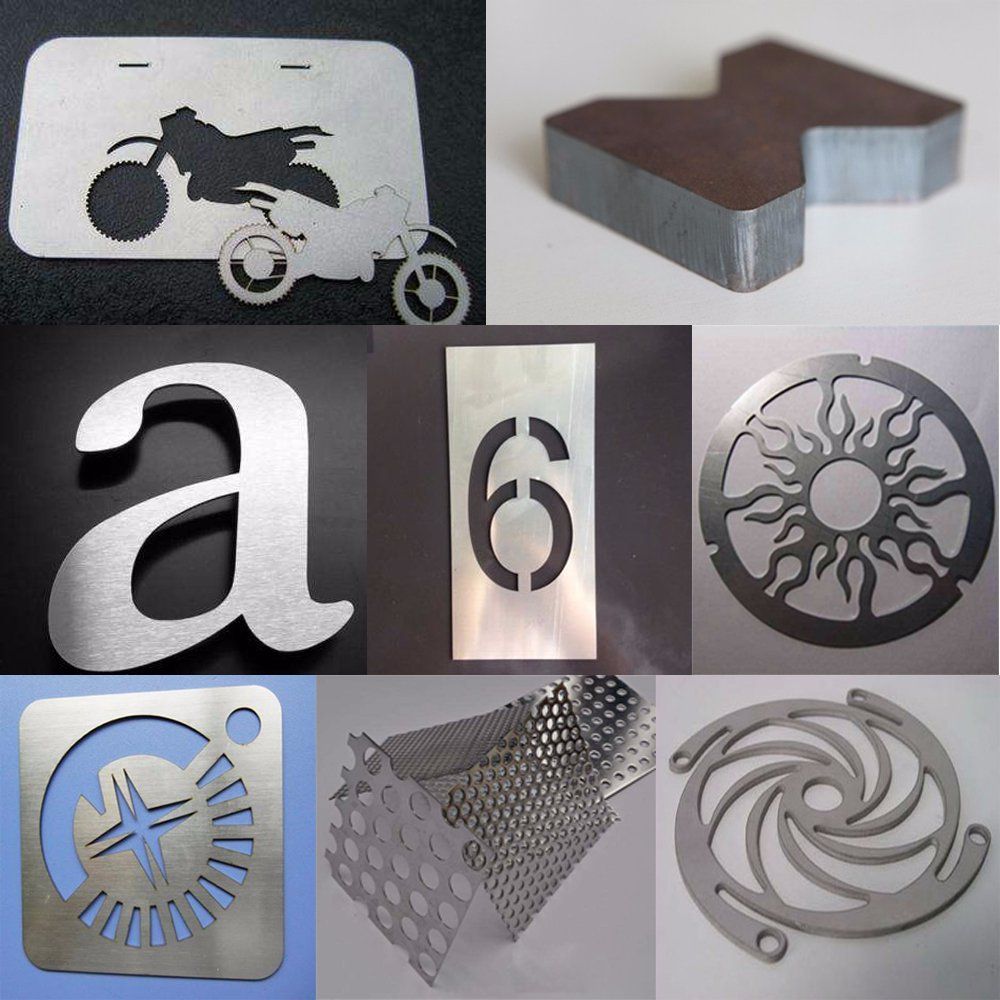

> > >Applications of laser cutting machine1.Application Materials: Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
2.Application Industries: HAN'S GS Fiber Laser Cutting Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.> > >Han's GS company introduction

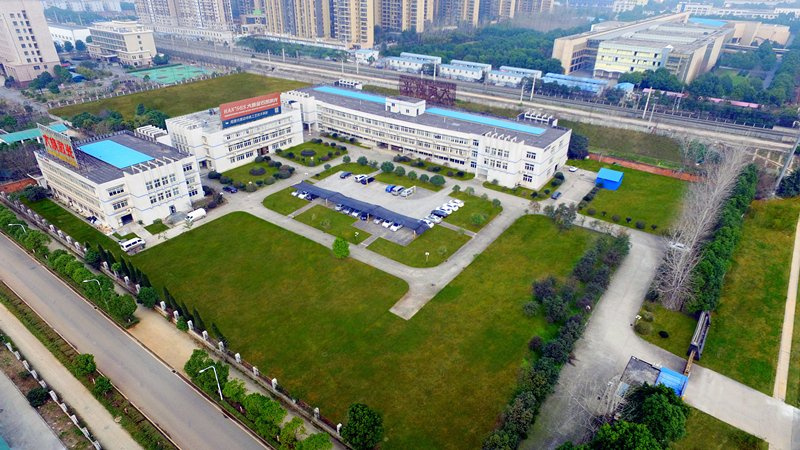

Wuhan Hans Goldensky laser system Co.,Ltd. is subsidiary company of Han's Laser Technology Industry Group Co.,Ltd. (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and provide laser cutting, laser welding, laser cladding/quenching, and high-speed laser perforating equipment and solutions.Most of the products of our company has fully independent intellectual property rights, widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, kitchen utensils and appliances, craft gifts, tool processing, decoration, advertising and other manufacturing industries.
> > >Please let us know following informations: 1.What kind of material do you want to cut?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX. dimension of your materials ?
4. After cut, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.
Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
