Fiber Optic 2 Core G657A FTTH Drop Cable

Fiber Optic 2 Core G657A FTTH Drop Cable
Price: US $ 0.09/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 5000/Meter
Pay Type: T/T,Western Union,Paypal
Prod Model: FTTH-2c
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Patch Cord Cable: Drop Cable
Fiber Type: Sm G.657A
Brand Or Logo: Customized
Warranty: 1year to 3 Years
Delivery Time: Within 2 to 3 Days
Application: Communication
Type: Single-mode Fiber
Certification: ISO9001
Connection Structure: Sc/LC/FC/St

Product Description

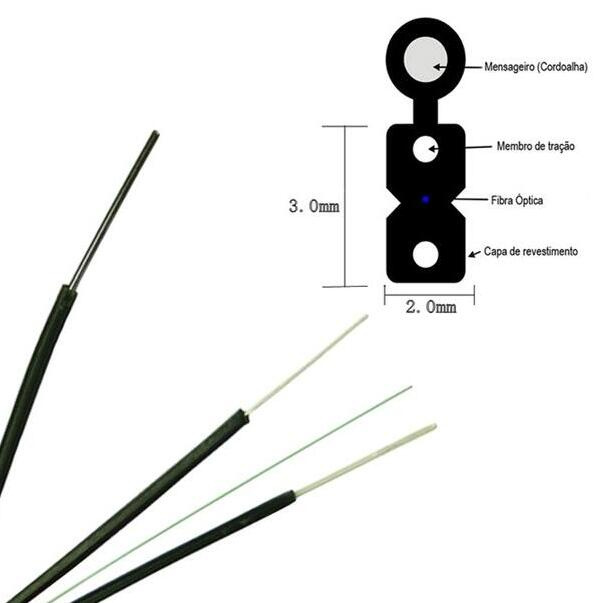

Fiber Optic  2 core G657A FTTH drop cable


Application:
1. All types of fiber cables with different structures
2. High performance optical network operating
3. High speed optical routes in buildings (FTTx)
4. Application in L band

FTTH drop cable charateristics

Optical
   Jacket Machine
Test itemsUnitsSpecTest itemsUnitsSpec

Single-mode
fiber cutoff wavelength

λc/nm
≤1250Test material-pvc
λcc/nm≤1260

Maximum
Attenuation@

1310nm
dB/km≤0.40Tensile StrengthElongation at break
1550nmdB/km≤0.30Thermal aging treatment

Dispersion
Coefficient

1288-1399nm
ps/nm·km¦D¦≤3.5 BeforeMpa/ %≥12.5 ≥150
1271-1360nmps/nm·km ¦D¦ ≤5.3After%20 ≥125
1550nmps/nm·km ¦D ¦≤18Timeh24 ×10
Zero dispersion Wavelengthnm1300-1322Temperature°C100 ±2
Zero dispersion slopeps/nm²km≤0.092Change rate after heating aging%20
Light source continuity-continuous
Others characteristicsCable Net weight1C25kg/km2C 25kg/km
Product Lengthm/Plywood Drum50010002000


Note:
1. Cables can be supplied with a range of single mode or multimode fibers.
2. The dimensions and raw materails can be designed according to the demand of the customers.
3. Standard Reel Length: 2000m/reel: other lengths available on request.


Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
