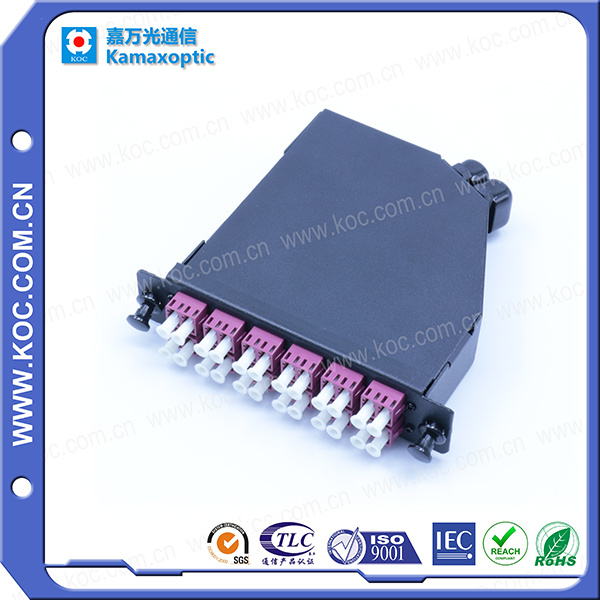

Fiber Optic 24f MPO/MTP Patch Panel

Name: Fiber Optic 24f MPO/MTP Patch Panel
Brand: all-electronics-online.com
SKU: 765532725
Availability: InStock
Rating: 4.3 (91 reviews)

Price:	US $ 20/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	24F MPO panel
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
MPO Module Metal Box 12f,24f:	MPO Casset Box
Usage:	Laptop
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

We have the 3D machine to interference the MPO patch cord. If you need the high quality MPO.

Pls contact with us.

APPLICATIONS
CATV , and Multimedia
Telecommunication networks
Active device interface
Telecommunication networks
Gigabit Ethernet
Data processing networks
Interconnection for O/E modules
Premise installations
Optical switch interframe connection
Asynchronous Transmission Mode (ATM)
FEATURES
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability
Standard: Telcordia GR-1435-CORE compliant

AVAILABILITY
Various fiber numbers available
Pigtail available

PECIFICATIONS

	Single mode		Multimode
	Standard	Low loss	Standard	Low loss
Insertion Loss	<=0.75dB typical<=0.5dB	<=0.4dB typical<=0.3dB	≤0.5dB typical<=0.35dB	≤0.3dB typical<=0.2dB
Return Loss	≥60 dB (APC)		≥35 dB (PC)
Repeatability	≤0.1dB
Durability	≤0.2 dB typical change, 1000 matings
Interchangeability	≤0.2dB
Tensile strength	>5kg
Operating Temperature	-40 to + 85°C

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
