Fiber Optic Adapter Hybrid Adapter Optical Fiber LAN /Transmission Network

Name: Fiber Optic Adapter Hybrid Adapter Optical Fiber LAN /Transmission Network
Brand: all-electronics-online.com
SKU: 807669915
Availability: InStock
Rating: 4.9 (56 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Fiber Optic Adapter Hybrid Adapter
Certification:	RoHS, ISO9001, UL
Transmission Medium:	Single-Mode
Structure:	ST
Number Of Cores:	Single-Core
Application:	Communication, Medicine

Product Description

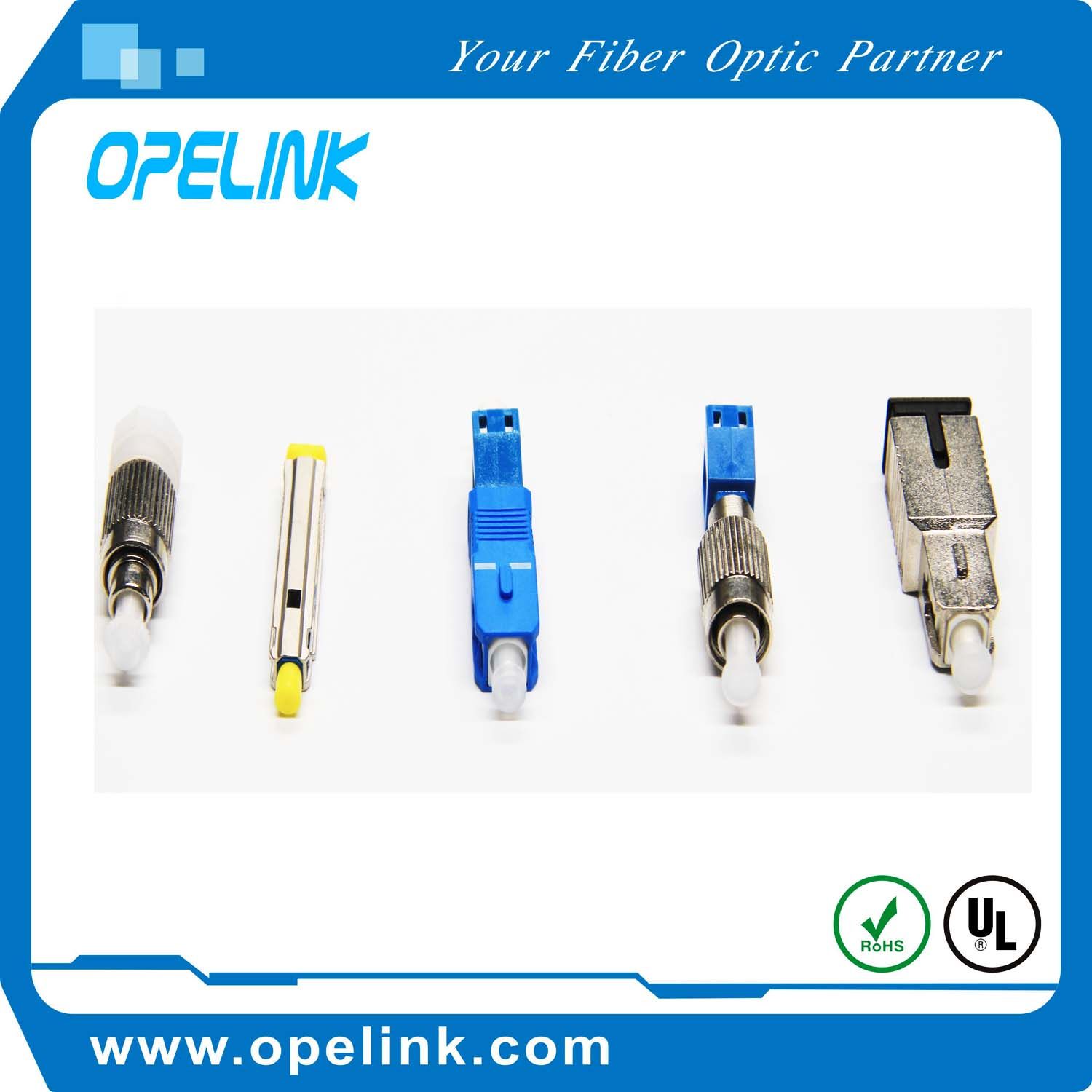

Fiber Optic Adapter
Hybrid Adapter

Features:
Complies With IEC,TIA/EIA,JIS
RoHS directive compliance;

Sleeve material:
Zirconia Split Sleeve for SM adapter
Phosphorous bronze Split Sleeve for MM adapter;

Application:
Fiber Optic Transmission Network
Cable TV network
Optical Fiber Lan
Optical fiber testing instrument
ODF,rack-mounted and wall-mounted optical fiber wiring unit

Specifications:

Parameters	Singlemode			Multimode
Parameters	PC	UPC	APC	PC
Insertion Loss(dB)	≤0.3	≤0.2	≤0.3	≤0.2
Return Loss(dB)	≥45	≥50	≥60	≥30
Interchange ability	≤0.2
Repeatability	≤0.2
Durability	>1000matings
Operating Temp.(ºC)	-40~75
Storage Temp. (ºC)	-40~75

Order Information:

hybrid	type	Material	Flange	Housing color	Sleeve	Application
1=ST-FC 2=ST-SC 3=FC-SC 4=FC-ST	S=Simplex D=Duplex	P=Plastic PBT M=Metal	01=Rectangular 02=Square	B=Blue G=Green E=Beige A=Aqua M=Metal Ni-Plated	Z=Zirconia Split M=Metal Split	P=PC

----------------------------------------------------FAQ---------------------------------------------------

Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method
is negotiable.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping
also optional.

Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost
effective method for you.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty according to different products.

Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for

OPELINK Technology is a high-tech enterprise with a focus on the design and the production of optical communication and accessories. We are among the industry leaders here in China and we own that to our highly skilled and experienced production staff and engineers. We manufacture a complete selection of premium quality products including fiber optic splitters, optical WDM, fiber optic circulator and many other active optical components.

Every stage PF production in our workshop is carefully controlled, from raw material selection to assembly, packaging and transport. We do this to guarantee quality and ensure that all of our customers are satisfied with their delivery.

In addition to our products sold in China, we also do business in France, the United States, Brazil, Russia, and many other countries. So far we have cooperated with Ericsson (Spain), Vodafone (Hungary), etc.

Moreover, OPELINK employs a professional foreign team in which most of members have more than 5 years experience in optical communication equipment.
