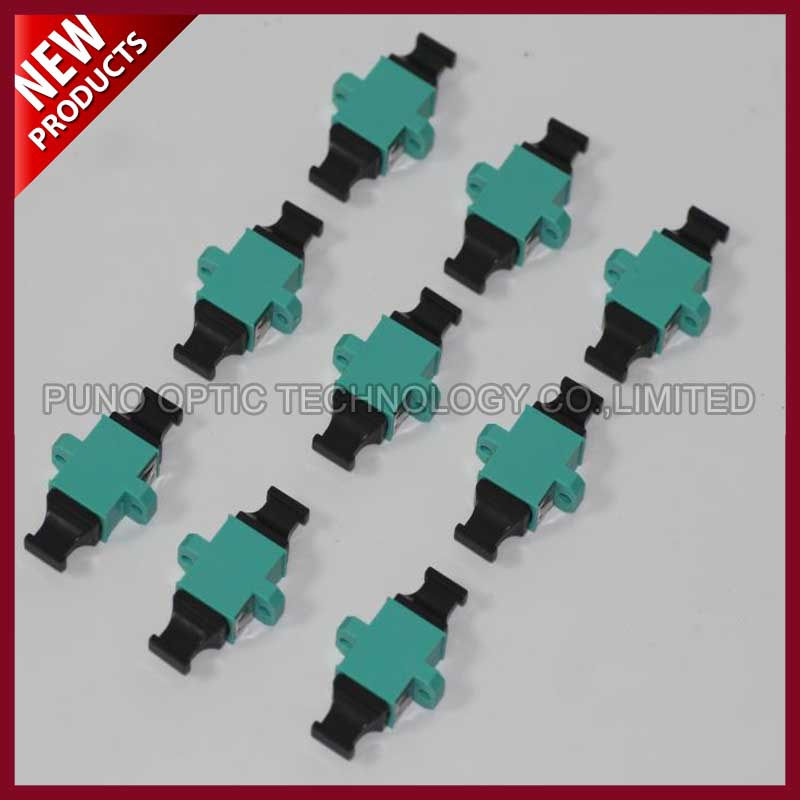

Fiber Optic Aqua Multimode OM3 MPO Flange MTP Adapter

Name: Fiber Optic Aqua Multimode OM3 MPO Flange MTP Adapter
Brand: all-electronics-online.com
SKU: 818166275
Availability: InStock
Rating: 4.6 (21 reviews)

Price:	US $ 1.2-2/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PN-007
Color:	Aqua
Fiber Type:	Multimode
Adapter Type:	MPO
Polish Type:	PC
Insertion Loss:	0.20dB
Return Loss:	55dB
Mating Durability (500Cycles):	0.20dB
Type:	Multi-mode Fiber
Connection Structure:	MPO
Material Shape:	Squareness
Allowed Lateral Pressure:	100（N/100mm)<1000（N/100mm）
Allowed Tensile Strength:	1000N<10000N
Core:	Multicore
Certification:	CE, RoHS, ISO9001, UL
Sheath Material:	ABS Plastic Housing
Application:	Communication

Product Description

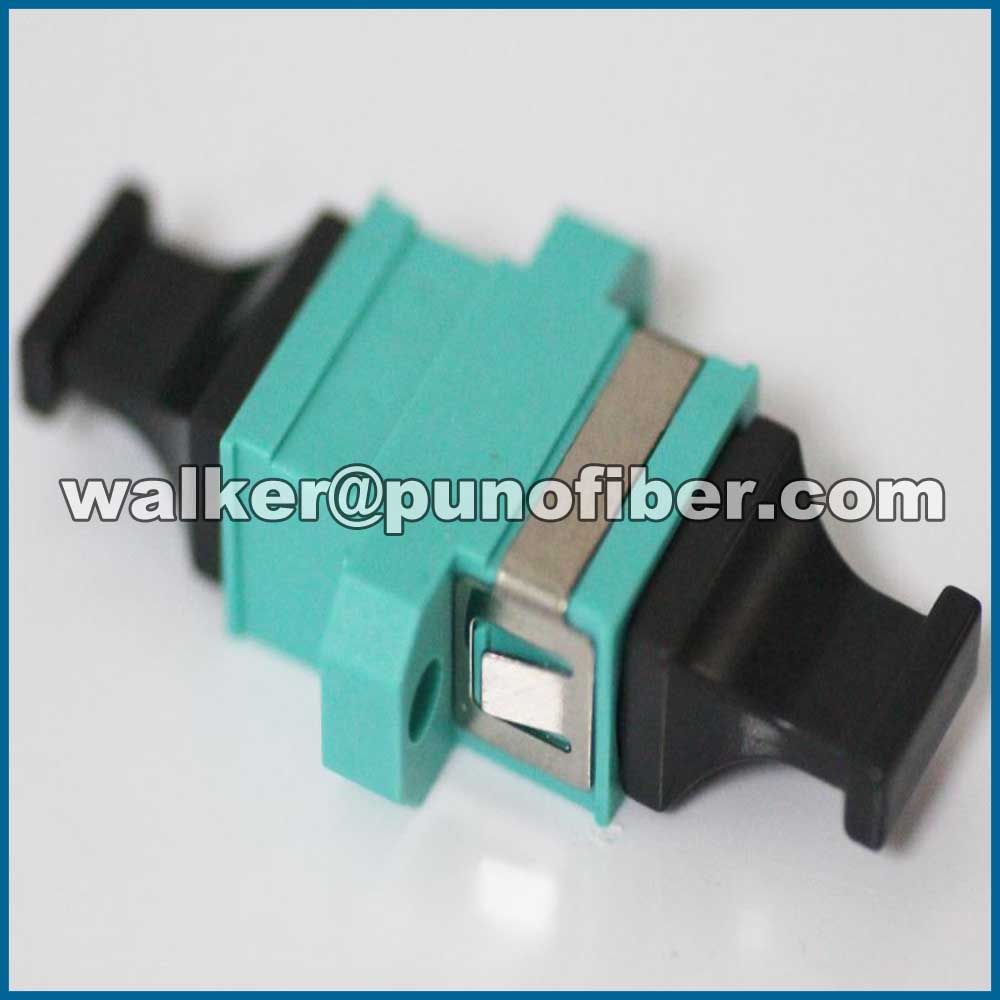

Fiber Optic Aqua Multimode OM3 MPO Flange MTP Adapter

Description:

The MPO Fiber Adapter is to provide MPO Patch cord to MPO patch cord Fiber connecting. MPO fiber optic adaptors are flange type adaptors with plastic housing, both single mode and multimode ones
available. They are used in high-density backplane and Printed Circuit Board (PCB) applications in data
and telecommunications systems. They offer up to 12 times the density of standard connectors. The MPO adapters provide significant space and cost savings.

Features:

MPO/MTP adaptor plates;
Up to 12 MPO/MTP adaptors per plate;
Key-Up Key-Down adaptors option (Standard ploarity A/C);
Key-Up Key-Up adaptors option (Polarity B);
5 adaptor plates in 1U, 12 adaptor plates in 2U.

Application:

Data centre;
Storage area network;
Director switch cabling solution.

Specification:

Item	Parameter
Connector Type	MPO
Fiber Type	Singlemode, Simplex
Insertion Loss	≤0.2dB
Return Loss	≥45dB
Mating Durability	≤0.2dB typical change, 1000 times
Operating Temperature	-40 ~ +75 ºC
Storage Temperature	-40 ~ +85 ºC

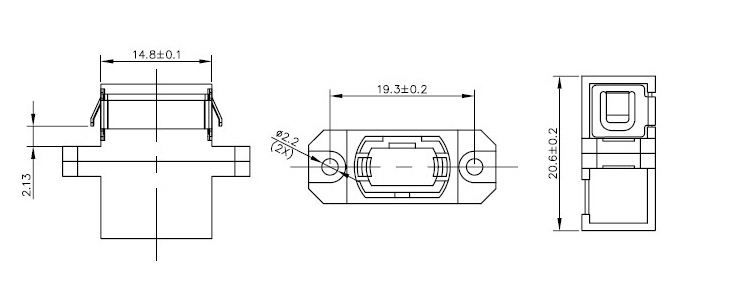

Mechanical Drawing:
