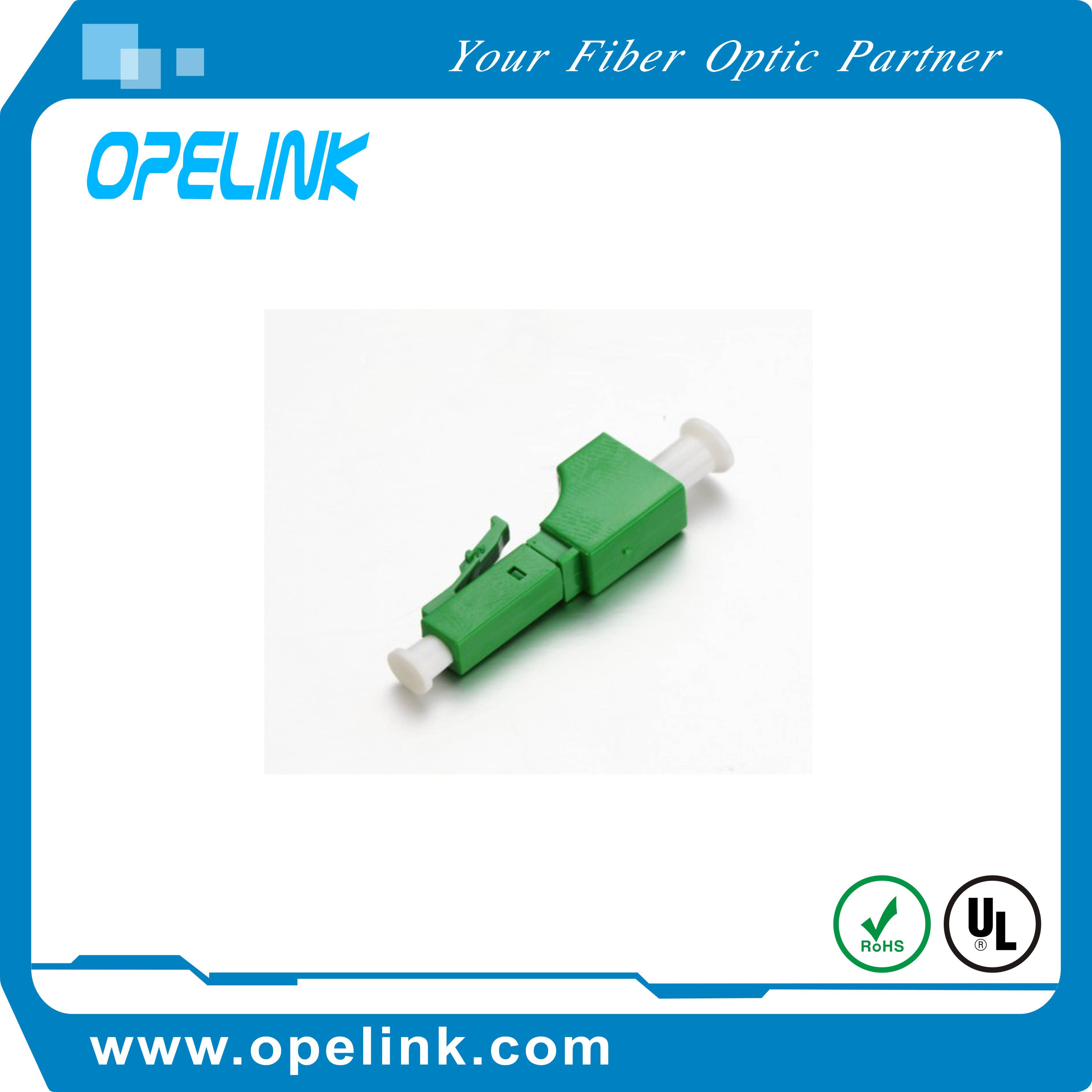

Name: Fiber Optic Attenuator
Brand: all-electronics-online.com
SKU: 807669715
Availability: InStock
Rating: 4.9 (45 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	fiber Optical Attenuator
Sleeve Material:	Ceramic
Flammability:	UL94 V-0 Grade
Interchange Ability:	Less Than 0.2
Repeatability:	Less Than 0.2
Durability:	More Than 1000
Operating Temp.:	-40~75 Degree
Storage Temp.:	-40~75 Degree
Insertion Loss:	Less Than 0.3
Return Loss:	More Than 50
Material:	Plastic, Metal
Application:	Medicine
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001

Product Description

Collimator Variable Optical Attenuator (VOA)

Description:
Collimator variable optical attenuator is an useful tool for the optical components power adjustment and systems test.

Features:
Wide attenuation range
High precision
Low original loss
Compact size

Application:
Fiber communication on system test
Optical passive component test
Optics lab use

Specification:

Type Parameter	1310	1550	1310/1550 Dual window	850, 1310
Wavelength (nm)	1310 ± 40	1550 ± 40	1310 ± 40 & 1550 ± 40	850± 40 or 1310 ± 40
Attenuation range (dB)	0.6 ~ 60	0.6 ~ 60	0.8 ~ 60	0.8 ~ 40
Original loss (dB)	≤0.6	≤0.6	≤0.8	≤0.8
Return loss (dB)	≥ 50			≥ 30
Adjustment Precision (dB)	0.02
Fiber type	SMF-28e			50/125 or 62.5/125 multi-mode
PDL (dB)	≤0.15
Dimensions (mm)	26×18×8
Operating temperature (ºC)	0 ~ +70
Storage temperature (ºC)	-40 ~ +85

Product Ordering Information:
VOA-C-X- XXX-X-X-XX/XXX
Connector: FC/UPC, FC/APC etc
Fiber Type: 0=SMF-28e, 1=HI1060, 2=50/125, 3=62.5/125, 4=others
Pigtail Type: 0=250μm, 1=900μm, 2=2mm, 3=3mm, 4=others
Wavelength: 131=1310nm, 155=1550nm, 1315=1310&1550nm etc.
Adjustment type: 0= hand adjustment; 1=screw adjustment
Type: C=Collimator

----------------------------------------------------FAQ---------------------------------------------------

Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty according to different products.

Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.

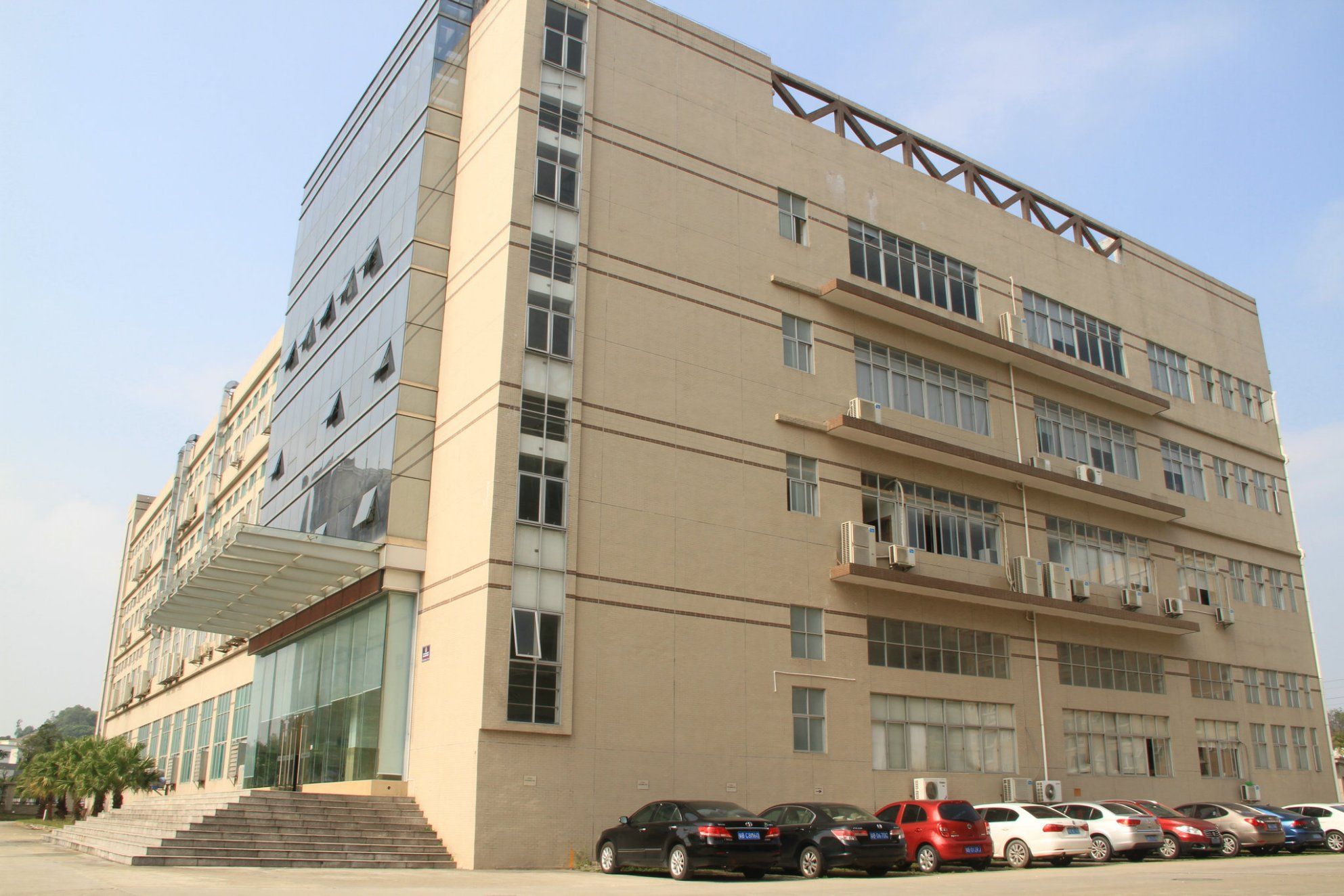

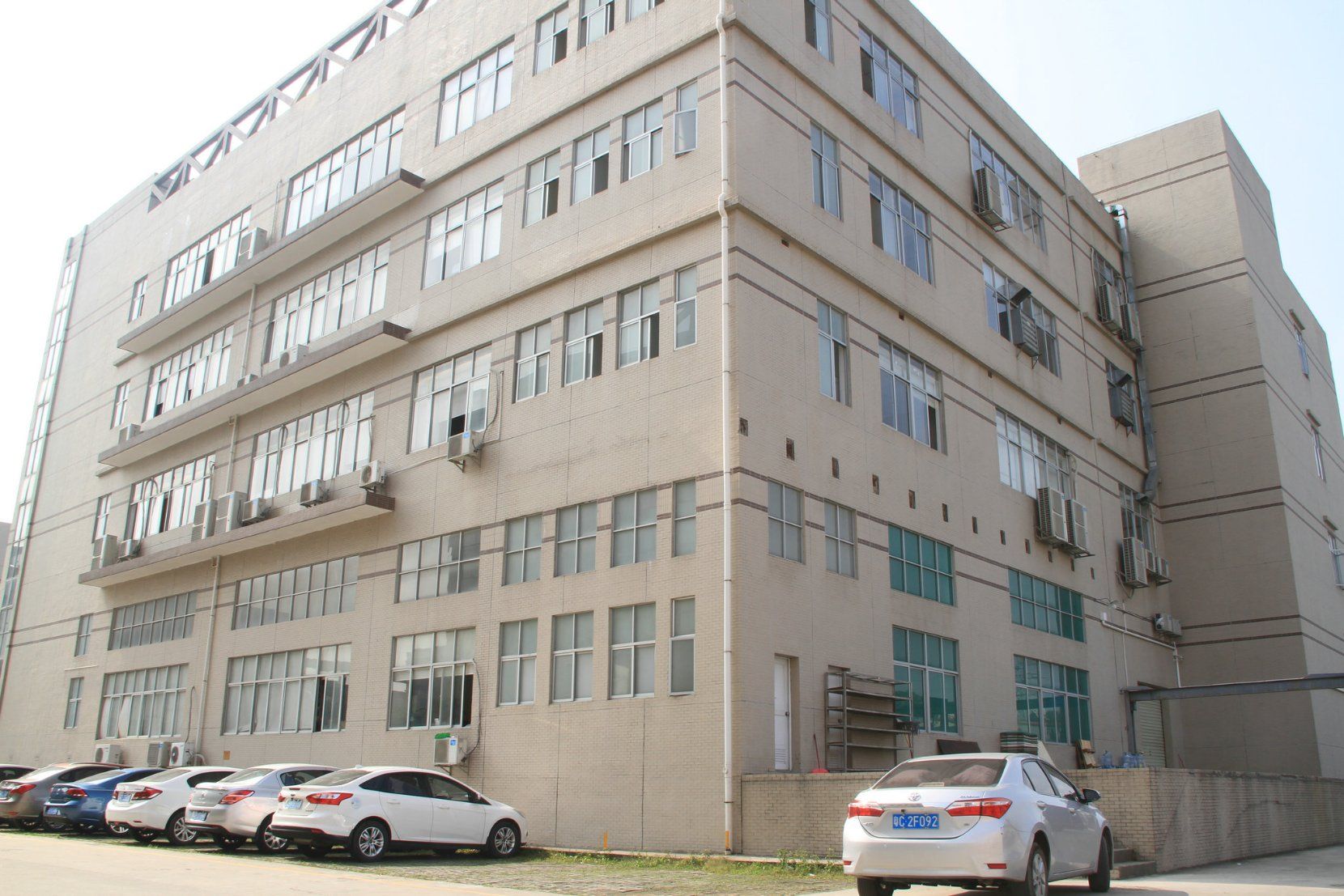

OPELINK Technology is a high-tech enterprise with a focus on the design and the production of optical communication and accessories. We are among the industry leaders here in China and we own that to our highly skilled and experienced production staff and engineers. We manufacture a complete selection of premium quality products including fiber optic splitters, optical WDM, fiber optic circulator and many other active optical components.

Every stage PF production in our workshop is carefully controlled, from raw material selection to assembly, packaging and transport. We do this to guarantee quality and ensure that all of our customers are satisfied with their delivery.

In addition to our products sold in China, we also do business in France, the United States, Brazil, Russia, and many other countries. So far we have cooperated with Ericsson (Spain), Vodafone (Hungary), etc.

Moreover, OPELINK employs a professional foreign team in which most of members have more than 5 years experience in optical communication equipment.
