| Prod Model: |
MPO-LC 12fibers |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| IEC 61754-7 Compliant: |
Compact Design, up to 24 Fiber Ribbon |
| MPO/ MTP Packing: |
Single Pack |
| MPO/ MTP Standard: |
ISO, Reach, RoHS, Tell, Ce |
| Origin Country: |
Shenzhen, China |
| Trunk Production Capacity: |
50000/Month |
| Transmission Medium: |
Singlemode, Multimode |
| Structure: |
MPO/MTP-LC |
| Ferrule Endface: |
APC/PC |
| Fabrication Process: |
Moulded |
| Connector Type: |
MTP/MPO, LC |
| Application: |
Network Equipment |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
MPO-LC |
| Core: |
12 Fiber |
| Sheath Material: |
LSZH |
Product Description

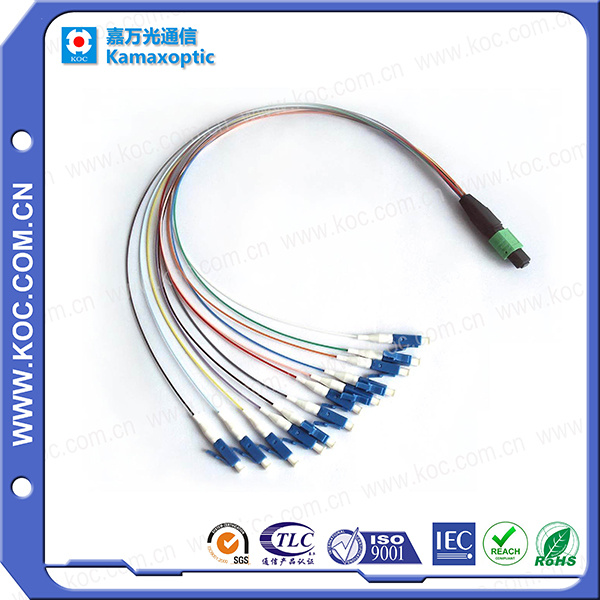

Fiber Optic Cable MPO-LC fanout cable singlemode/multimode 12fibers used for FTTH
KOC Group has been founded in 2001,It has invested a number of companies
specialized in manufacturing and selling fiber optic communication products,Data
Center products,Various of Fiber Optic Cable , offering various worldwide solutions
for telecommunication, broadcast, CATV,Data Center and network industry.
KOC MPO solution is designed for high-density fber
connections and high-speed data center cabling.
We provide an economic highly reliable solution for
your fber network systems.
APPLICATIONS:
- CATV, and Multimedia
- Gigabit Ethernet
- Industrial and medical
- Active device interface
- Premise installations
- Interconnection for O/E modules
- Data processing networks
- Telecommunication networks
- Optical switch interframe connection
- Asynchronous Transmission Mode (ATM)
FEATURES:
- IEC 61754-7 Compliant
- Compact design, up to 24 fiber ribbon
- Polishing does not require diamond film
- Precision molded MT ferrule
- Telcordia GR-1435-CORE compliant
- Low insertion loss and back reflection loss
- High precision guide pins for exact alignment
SPECIFICATIONS
| | Single mode | Multimode |
| Insertion Loss | Low Los ≤ 0.35dB | Low Los ≤ 0.35dB |
| Standard Loss ≤ 0.7dB | Standard Loss ≤ 0.5dB |
| Return Loss | ≥ 55dB | ≥ 30dB |
| Durability | <0.3dB typical change,
200 matings | - |
| Operating Temperature | -40 to +85 ºC | -40 to +85 ºC |
Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.
Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.
We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
About KOC
Located in Shenzhen, China, KamaxOptic Communication Co. Ltd., well-known as KOC, is specialized in fiber optic communication products and accessories. She offers precise customized solutions for various customers involved in telecommunication, broadcast, CATV and network industry worldwide.
Our quality is guaranteed by the scientific management with the assistances of professional personnel, advanced testing equipments and efficient ERP system under the strict guidance of ISO9001: 2000, from supplier evaluation to inbound material examination, from processing monitoring to permanent inspection, from packing to shipping. We do care for every detail!
To be dedicated to be a popular manufacturer with her quality products, satisfactory services and attention to details through the full commitment of each personnel to work as one team in an effort to exceed our customer expectations.
To operate the business in a transparent and honest manner, that our customers, our associates and our business partners are proud to play their part in our success.
Please visit us website for more information: http://www.koc.com.cn
