| Prod Model: |
TXS-SCSC03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Insertion Loss: |
≤0.5db |
| Return Loss: |
≥45db |
| Durability: |
≥1000 |
| Repetability: |
0~15kg(Beside 0.9mm) |
| Vibration Test: |
<0.1db(5-50Hz,1.5mm) |
| Environment Temperature: |
-25~+70 |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC-SC |
| Certification: |
BV |
| Brand: |
Yacht |
| Sheath Material: |
PVC/PE |
Product Description

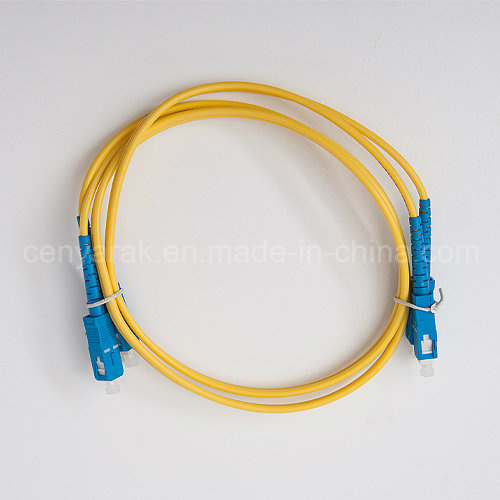

Fiber Optic cable Patch Cord PC 3m 3.0/2.0mm 9/125 SC-SC
Type: SC-SC,SC-FC,SC-LC, SC-ST ,FC-FC,FC-LC,FC-ST ,LC-LC, LC-ST,ST-ST ,other
Product Description
Fiber Optic cable Patch Cord PC 3m 3.0/2.0mm 9/125SC-SC mainly used between the device and the device, fiber link connection between the device and the patch panel to provide multiple types of fiber, including multi mode 62.5/125,50/125,QuintillionOM3, OM4, and single mode 9/125 PC, UPC, APC .etc
Fiber Optic cable Patch Cord PC 3m 3.0/2.0mm 9/125 SC-SC
using prefabrication, highquality parts, ceramic ferrule and optical fiber, optical performance provides excellent control of the plant, with a low insertion loss and emission loss, easy installation and fast.
Standard
ISO/IEC 11801
Applications
Communication, local area network, fiber to the home, digital high-definition monitor, and other fields.
Features&Applications
1. All kinds of fiber optic cable, patch cords, SM & MM available
2. Standard & custom configurations
3. Low insertion loss
4. Ultra low back reflection
5.Telecommunications fiber optic cable
6.Testing instruments
7.Active device terminations
Performance & Specifications |
| Fiber Type | SM | MM |
| Normal Fiber OD | 125±0.2um | 125±0.2um |
| Connector Type | SC,FC,ST, E-2000, LC, MU | MTRJ | SC,FC,ST, E-2000, LC, MU | MTRJ |
| Insertion loss(Typical) | 0.2dB | 0.4dB | 0.2dB | 0.4dB |
| Insertion loss(Max) | 0.3dB | 0.5dB | 0.3dB | 0.5dB |
| Return Loss(Typical) | PC | 50dB | 35 | - |
| UPC | 55dB | - | - |
| APC | 65dB | - | - |
| Mating Durability(500 C) | 0.2dB |
| Temperature Stability | 0.3dB |
| Operation Temperature | -25°C~+70°C |
| Storage Temperature | -25°C~+70°C |
Company Information
Company exhibition
Products
We manufacture Fiber Optic System products as follows:
Active & Passive Components
Passive components
Patch cords
Pigtails
Splitter
Termination boxes
Patch panel/ODF
Active equipment
Fiber converters
SFP/GEBIC transceivers
Receivers
Packaging & Shipping
Why you choose us ?
1.Factory, OEM/ODM available
2.Steady quantities supply, Strict quality control
3.Excellent Yacht or your own brand box/roller design and package
4.Stirictly conform to ISO, BV certificates
5.Long time experience at domestic and export market
Welcome you visit our factory !
FAQ :
1.Are you factory ?
Yes,we are factory ,our factory located in Nanjing,China .
2.What products your factory mainly produce ?
Our factory mainly produce LC,SC,FC,ST Connector patch cord ,pigtail ,SFP transceiver module and other fiber optic components .
Yacht brand, OEM/OEM fiber optic patch cable manufacturer, factory in NANJING, China!
Established in 2013, Jiangsu Cenyarak Electrical Co., Ltd is a manufacturer and trader specialized in research, development and production of all types of Fiber Optic Patch Cords and related products(). We are located in Jiangsu Nanjing, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets through the world.
Covering an area of 800 square meters, our company have own instrument processing center, manufacturing workshop, so that customized is available.
Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we have received _ISO90012008.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching North America, South East Asia, Europe, Africa ect.
Our company promises: High quality, reasonable prices, ample supply, timely delivery. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationship with new clients around the world in the near future.
