Fiber Optic Cable Unitube Light Armored Cable GYXTW

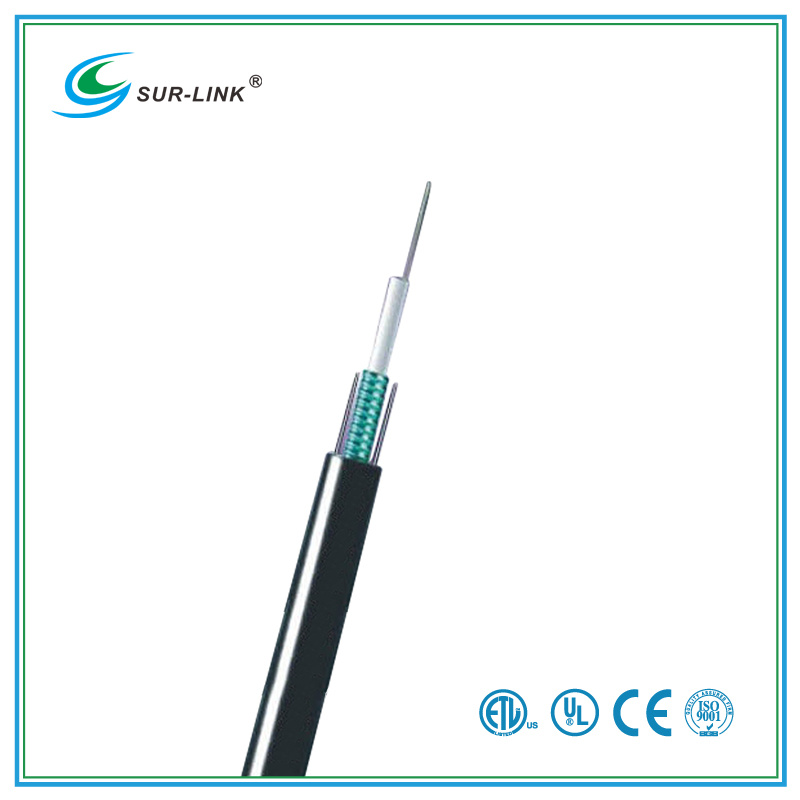

Name: Fiber Optic Cable Unitube Light Armored Cable GYXTW
Brand: all-electronics-online.com
SKU: 800740995
Availability: InStock
Rating: 4.9 (94 reviews)

Price:	Negotiable/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SLGYXTW
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	No
Sheath Material:	PE

Product Description

DESCRIPTION:
      Single jelly compound filled Loose tube containing up to 12 fibers colour code as per color coding scheme. Surrounded by moisture bamer bonded to polyethylene incorporating two steel wire strength elements. This cable is suitable for outdoor duct, direct burial or aorial applications.
APPLICATIONS:
      1, Usable for ducts direct burial, aerial installation
      2, Long-haul communication system
      3, Subscriber network systems
      4, Local area network systems

DIMENSIONAL CHARACTERISTICS

Designation	Steel wire	Nominal cable diameter (mm)	Nominal cable diameter (kg/km)
GYXTW-2-12	Φ1.5mm×2	10.5	115

MECHANICAL & ENVIRONMENTAL CHARACTERISTICS

Item	Characteristics
Tensile Strength	3000N
Cursh Resistance	3000N/100mm
Minimum Bending Radius
During Installation	20 Times Cable Diameter
After Installation	10 Times Cable Diameter
Temperature Range
Storage	-50ºC~+70ºC
Operating	-40ºC~+60ºC

ORDERING INFORMATION:

Product Code	Description	Packaging	Carton Size	GW
SLGYXTW-12B1	Central-tube Light-armored Cable 12 Fibers Black	5000 M/ Axle	11575115 cm	415 kg
