| Prod Model: |
14437-102 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Waterproof: |
IP67 |
| Fiber Count: |
2~8fibers |
| Cable Diameter Szie: |
0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 2.8mm, 3.0mm |
| Connector: |
LC,Sc,St,FC,etc |
| Cable Material: |
PVC,LSZH,Ofnr,Ofnp |
| Number Of Cores: |
Multi-Core |
| Ferrule Endface: |
PC(',UPC) |
| Transmission Medium: |
Single-Mode, Multi-Mode |
| Structure: |
Military Connector |
| Application: |
Outdoor Fiber Connection |
| Connector Type: |
Military Connector |
| Brand: |
Koc |
Product Description

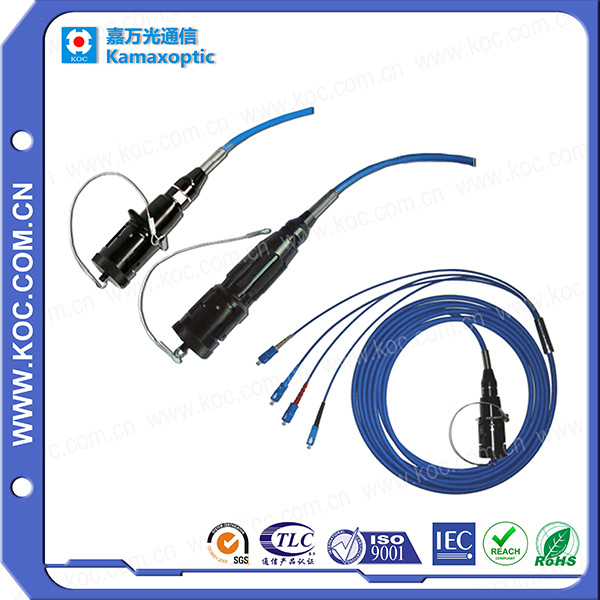

Unit Construction
This assembly cable kit includes a set length of cable, special connectors on both ends, and a reel for distributing and retrieving.
Advantages
All dielectric high mechanical performance and wide operation temperature range cable.
Standard neutral click lock connector, water resistant and dust protecting.
Neutral connectors that can direct connect between socket and flanging socket, socket and socket, flanging socket and flanging socket.
The orientation pin design ensures fast blind connection, and the precision ferrule makes the interchangeable and repeatable connection better performance.
Special design reel with automatic cable arranger for fast, -easy distribution and retrieving.
| Connector Type | Neutral Click Lock |
| Max. Tensile Load | 1200N |
| Crush Resistant | 3000N/100mm |
| Operation Temperature | PE:-20~+40ºC |
| PU:-20~+70ºC |
| PVC:-40~+85ºC |
| LSZH :-20~+60ºC |
| Repeated Connecting | ≥1000 Times |
| Kit Size | φ500*460mm |
| Gross Weight | ≤100kg |
This assembly cable kit includes a set length of cable, special connectors on both ends, and a reel for distributing and retrieving.
Advantages
All dielectric high mechanical performance and wide operation temperature range cable.
Standard neutral click lock connector, water resistant and dust protecting.
Neutral connectors that can direct connect between socket and flanging socket, socket and socket, flanging socket and flanging socket.
The orientation pin design ensures fast blind connection, and the precision ferrule makes the interchangeable and repeatable connection better performance.
Special design reel with automatic cable arranger for fast, -easy distribution and retrieving
