Fiber Optic Connector for Optical Patch Cord LC-PC

Name: Fiber Optic Connector for Optical Patch Cord LC-PC
Brand: all-electronics-online.com
SKU: 816165955
Availability: InStock
Rating: 4.7 (47 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Fiber Optic Connector For optical Patch Cord LC-PC
Type:	Single-Mode Fiber
Material Shape:	Round Wire
Core:	Single Core
Certification:	RoHS, ISO9001, UL
Sheath Material:	PVC
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)
Application:	Communication, Medicine
Light Source TYPE:	Fiber Optics

Product Description

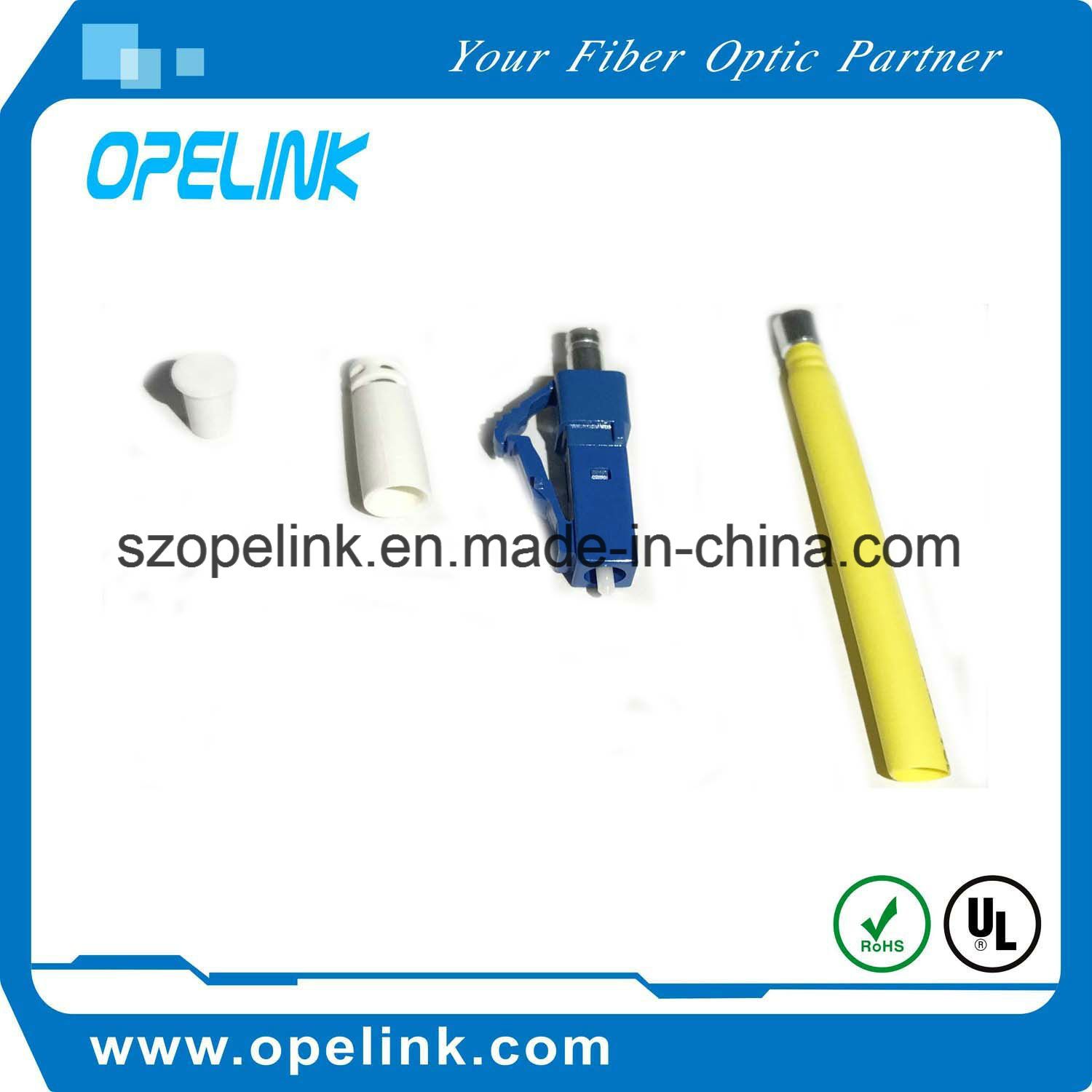

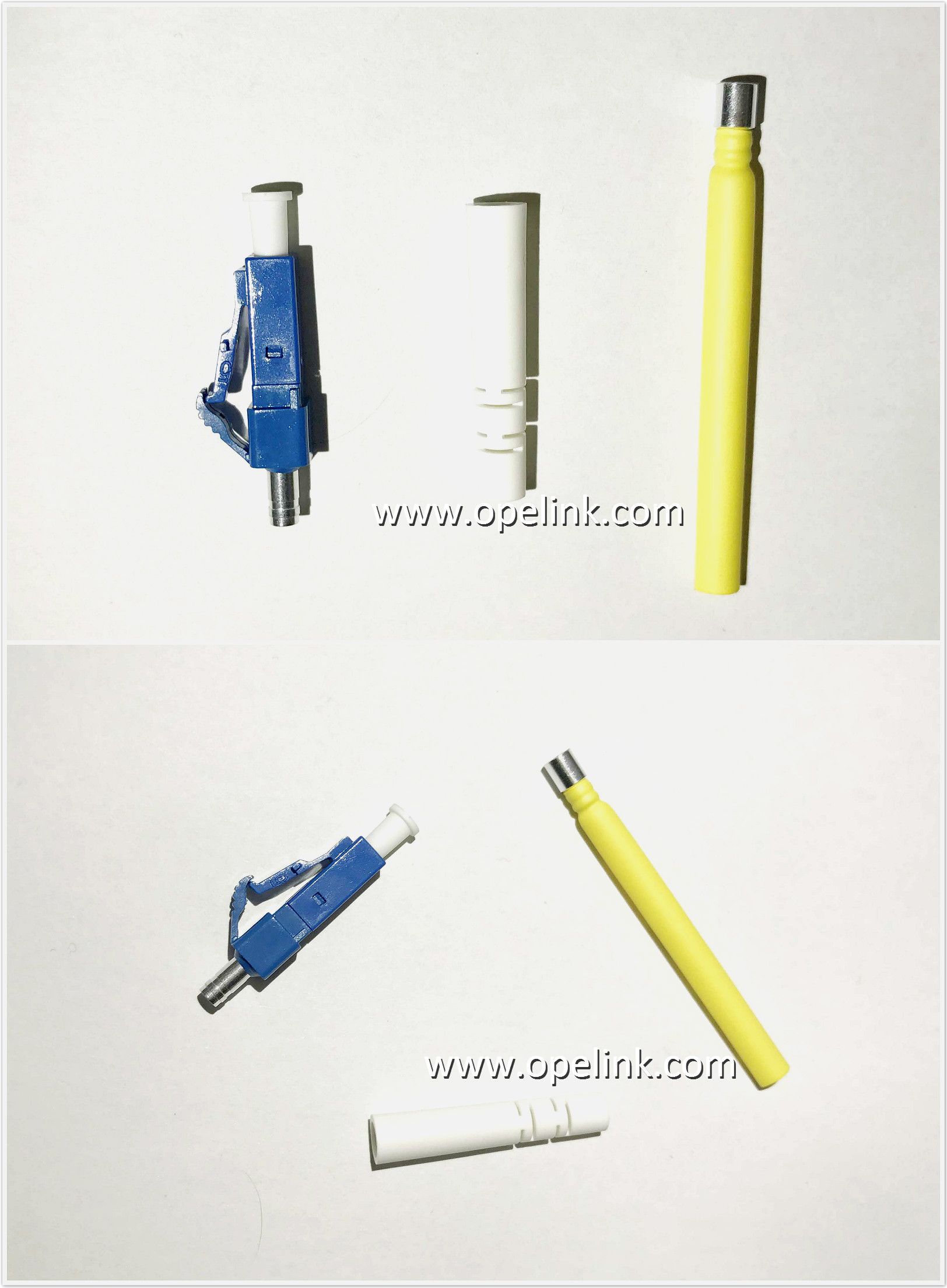

Fiber Optic Connector For optical Patch Cord LC-PC

Application:

1. Local Area Network (LAN)
2.Data communication network
3.Telecommunication optical transmission network

Features:
Low insertion loss
Meets Telecordia-GR-326-CORE specifications
Ultra low back reflection
Fixed key and activity key can be selected
For 3.0mm, 2.0mm jacket or 900um buffer

Specifications:

			LC/SC/FCST/MTRJ/MPO

Parameter	Unit		SM		MM

		PC	UPC	APC	PC

Insertion Loss	dB	≤0.2	≤0.2	≤0.2	≤0.2

Return Loss	dB	≥45	≥50	≥60	≥30

Exchangeability	dB			≤0.2

Repetability	dB			≤0.2

Durability	time			≥1000

Operating Temperature	ºC			-40~75

Storage Temperature	ºC			-40~85

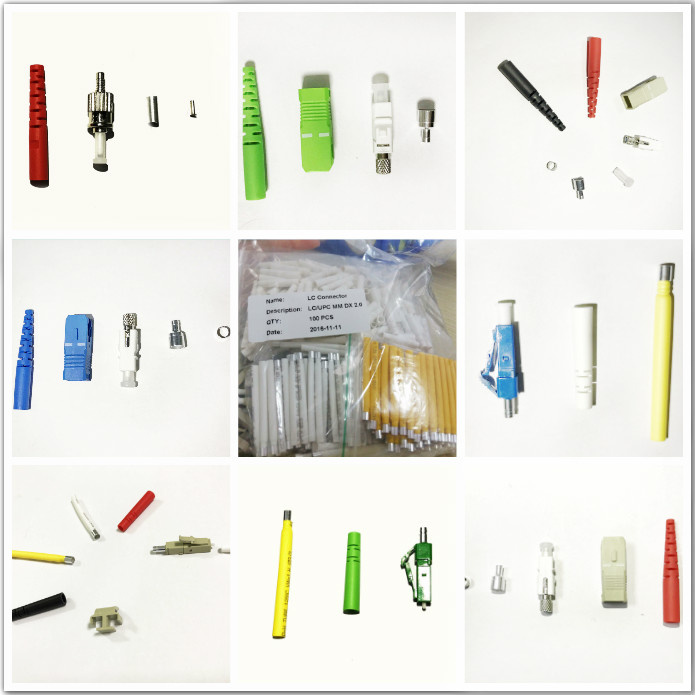

Other Types of Connector

----------------------------------------------------FAQ---------------------------------------------------------

Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is
negotiable.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping
also optional.

Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost
effective method for you.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty according to different products.

Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.

OPELINK Technology is a high-tech enterprise with a focus on the design and the production of optical communication and accessories. We are among the industry leaders here in China and we own that to our highly skilled and experienced production staff and engineers. We manufacture a complete selection of premium quality products including fiber optic splitters, optical WDM, fiber optic circulator and many other active optical components.

Every stage PF production in our workshop is carefully controlled, from raw material selection to assembly, packaging and transport. We do this to guarantee quality and ensure that all of our customers are satisfied with their delivery.

In addition to our products sold in China, we also do business in France, the United States, Brazil, Russia, and many other countries. So far we have cooperated with Ericsson (Spain), Vodafone (Hungary), etc.

Moreover, OPELINK employs a professional foreign team in which most of members have more than 5 years experience in optical communication equipment.
