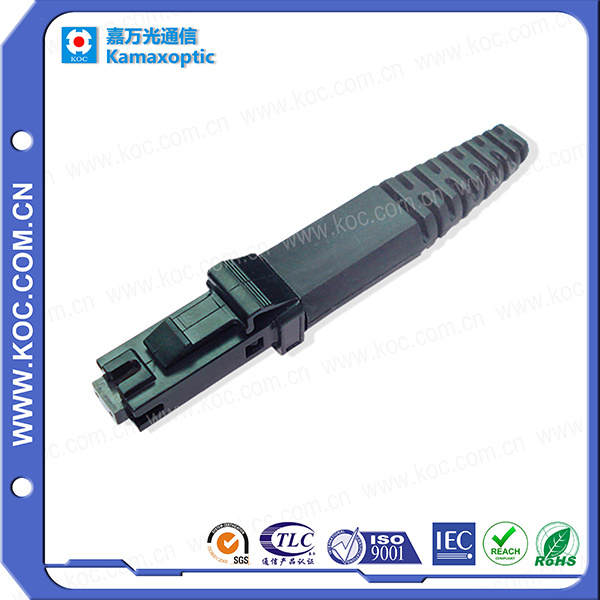

| Prod Model: |
Connector MTRJ multimode |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wiring Devices: |
ODF |
| Type: |
MTRJ,Sc,St,LC,FC |
| Fiber Type: |
Singlemode and Multimode |
| Light Source: |
1310nm,1550nm,850nm |
| Boot Size: |
2.0mm |
| Boot Type: |
Smooth, Slotted |
| Housing Color: |
Blue, Green, Beige, Metal, Black, White, Yellow |
| Ferrule Type: |
125um to 130um |
| Transmission Medium: |
Multimode |
| Structure: |
MT-RJ |
| Ferrule Endface: |
PC(',UPC) |
| Number Of Cores: |
Duplex |
| Application: |
Patchcord |
| Light Source TYPE: |
Fiber Optic |
Product Description
SC/PC Connector
APPLICATIONSCATV
Active device termination
Metro
Test equipment
Local Area Networks (LANs)
Premise installations
Telecommunication networks
Data processing networks
Wide Area Networks (WANs)
FEATURES Ferrule end surface predomed
UL-rated plastic housing
Telcordia style boots
Boots in a variety of colors
Free-floating ceramic ferrule
Low insertion loss and back reflection loss
Precision anti-rotation key and corrosion
resistant body
STANDARDS All components of/and the final product are designed and tested to conform the requirements of IEC
60874-7, CECC 86115-801, Bellcore/Telcordia GR-326, EIA/TIA 604-3A, EIA/TIA 568, ISO/IEC 11801
2nd Ed., EN 50173, JIS C5973 F04, ICEA-596, IEC60793-2-10 A1a, ITU-T G.651 or IEC60793-2-10 A1b
or ITU-T G.652 (depending on fiber), Belcore/Telcordia GR-409-CORE, IEC 793, IEC 794-1-E1, IEC
794-1-E3, UL1666/901 (UL-cable) and EIA/TIA455.
AVAILABILITY The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
Clips are available for duplex connectors
Housing kits without ferrule are available.
SPECIFICATIONS | | Single mode |
Multimode |
Insertion Loss | ≤0.30dB |
≤0.30dB |
Return Loss |
≥50 dB | |
Durability | ≤0.2 dB typical change, 1000 matings | |
| Operating Temperature | -40 to + 85°C | -40 to + 85°C |
| Tensile strength |
>10kg
| |
Ferrule Hole Sizes | 125.0+1/-0μm, Concentricity: ≤1.0μm |
125μm, Concentricity: ≤3μm
|
125.3+1/-0μm, Concentricity: ≤1.0μm | 127μm, Concentricity: ≤3μm
|
125.5+1/-0μm, Concentricity: ≤1.0μm |
128μm, Concentricity: ≤3μm
|
126.0+1/-0μm, Concentricity: ≤1.0μm | |
Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.
Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.
We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
