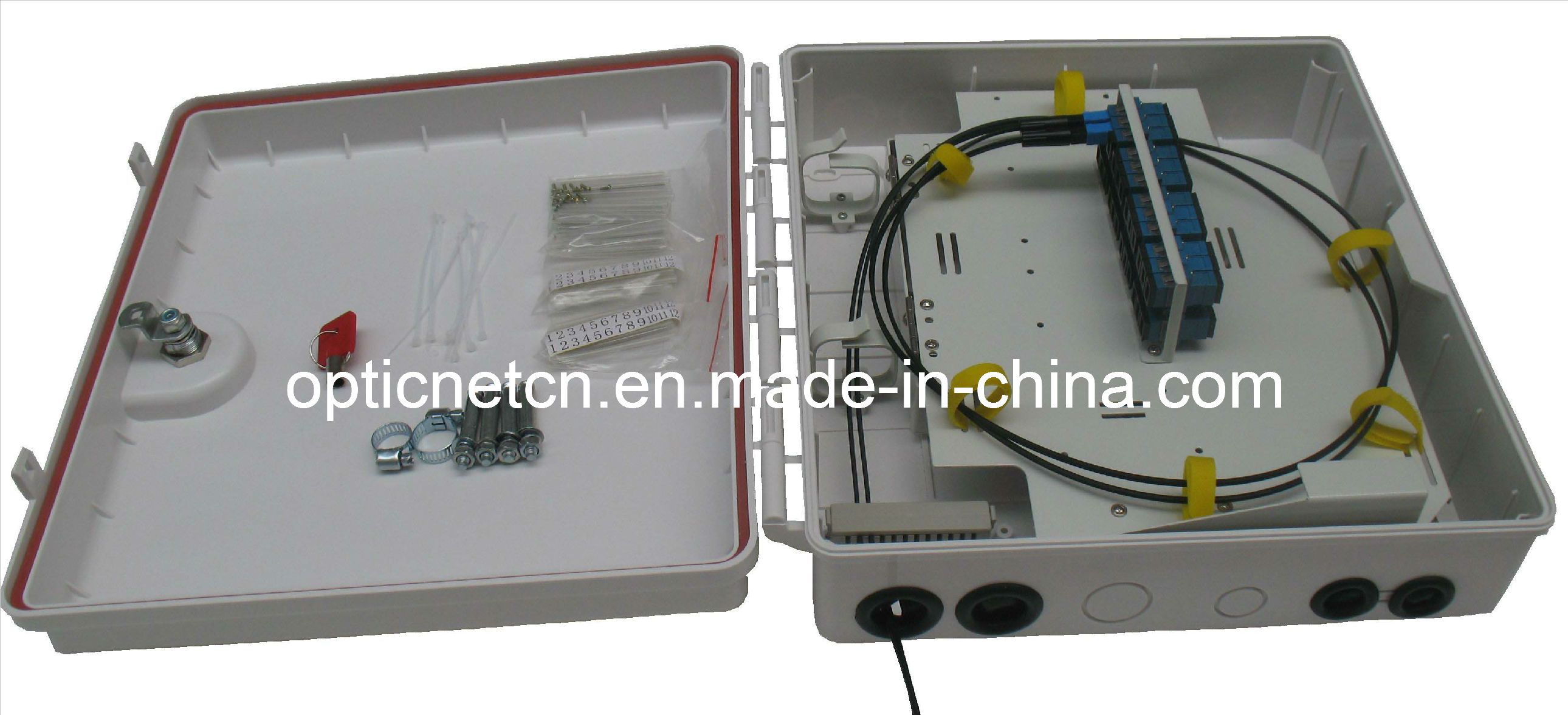

Fiber Optic Distribution Box (24 fibers)

Name: Fiber Optic Distribution Box (24 fibers)
Brand: all-electronics-online.com
SKU: 724212015
Availability: InStock
Rating: 4.9 (47 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPX-C24
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension:	350340120mm
Max.Capacity:	24 Fibers
Cable Ports:	12 PCS

Product Description

Description
GPX-C plastic fiber optic distribution box is used for the distribution connection of cable and fiber optic communication devises. It leads out the optic signal from drop cable to pigtails by splicing in the box, it can be used for protective connection of cable and layout pigtails, and fiber optic terminations of optic access network. It is suitable for outdoor, corridor, weak current silo or collection points of villas, for the splicing, storage and distribution of local cable or drop cable, with capacity of 24 fibers or 48 fibers.

Features:
> The box is made of imported flame retardant material, with aging resistant and ultra violet resistant characters;
> Sealing with pressed strip, waterproof and dustproof with Ip65;
> Special screw and key for its door lock; can be installed on wait or mounted on pole;
> Temperature, working: -40 ºC~ +80ºC; storage: -40ºC ~ +80ºC;
> Spare pigtails and drop cable can be save in the storage part, convenience for maintenance;
> Special lock device for outlet of drop cable;
> Bi-layer structure, bottom for splicing and upper layer for splitting and distribution.
> There are 24-48 positions for adapters of FC,SC or ST
> Maximum 2 pieces of splice tray for satisfying kinds of connection.

Type	Cable Ports	Max Capacity	Type of Adapters	Dimension(mm) (WxLxD)
GPX-C24	12	24	FC, SC, ST or LC	350 x 340 x 120
