Fiber Optic Drop Cable 4 Cores Miniature Fiber Optical Cable

Name: Fiber Optic Drop Cable 4 Cores Miniature Fiber Optical Cable
Brand: all-electronics-online.com
SKU: 690225631
Availability: InStock
Rating: 4.6 (98 reviews)

Price:	Negotiable/Meter
Min Order:	10000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	4 Core Miniature Fiber Optical Cable
Fiber Type:	G652D
Cable Material:	LSZH
Cable Color:	Yellow
Tension(Long Term):	200n
Tension(Short Term):	660n
Crush(Long Term):	200n
Crush(Short Term):	1000n
Min. Bend Radius(Dynamic):	20d
Min. Bend Radius(Static):	10d
Operating Temperature:	-20~60 Degree
Application:	Medicine
Type:	Single-mode Fiber
Connection Structure:	SC-SC
Certification:	ISO9001

Product Description

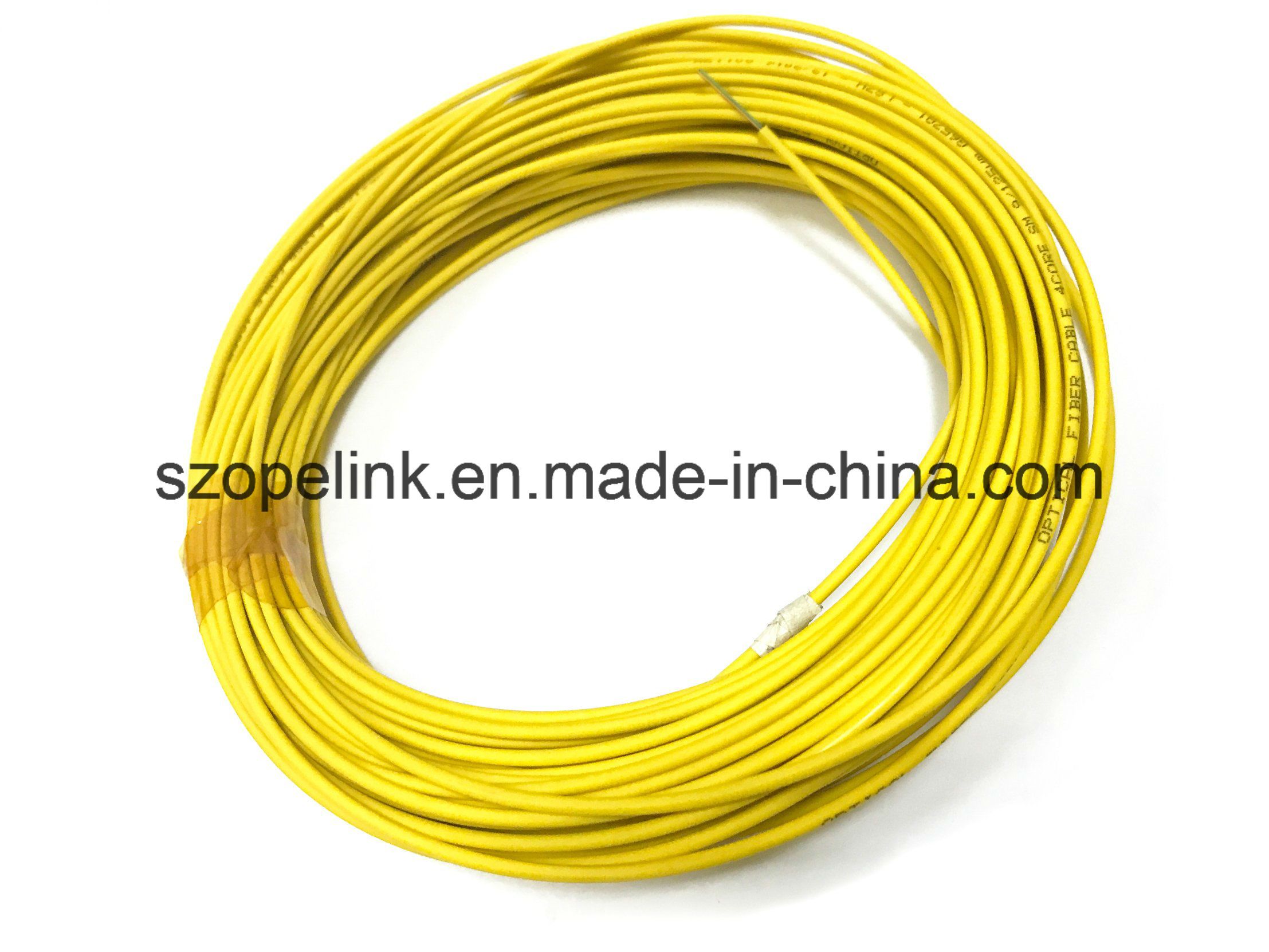

fiber optic drop cable 4 Cores Miniature fiber optical cable

Fiber Parameters:

	Items			Specification
No.			Unit
				G.652D
				G.652D

1	Mode Field Diameter	1310nm	μm	9.2±0.4

		1550nm	μm	10.4±0.5
		1550nm	μm	10.4±0.5

2	Cladding Diameter		μm	124.8±0.7

3	Cladding Non-Circularity		%	≤0.7

4	Core-Cladding Concentricity Error		μm	≤0.5

5	Coating Diameter		μm	245±5

6	Coating Non-Circularity		%	≤6.0

7	Cladding-Coating Concentricity		μm	≤12.0
7	Error		μm	≤12.0
	Error

8	Cable Cutoff Wavelength		nm	λcc≤1260

9	Attenuation(max.)	1310nm	dB/km	≤0.4

		1550nm	dB/km	≤0.3
		1550nm	dB/km	≤0.3

Cable Parameters:

Items		Specifications

Fiber Count		4

Colored Coating Fiber	Dimension	250±15μm

		Blue, Orange, Green, Brown, Gray, White,
	Color	Blue, Orange, Green, Brown, Gray, White,
	Color	Red, Black, Yellow,Purple, Pink, Aqua
		Red, Black, Yellow,Purple, Pink, Aqua

Jacket	Dimension	3.9±0.1mm

	Material	LSZH
	Color	Yellow

Mechanical and Environmental Characteristics:

Items	Unite	Specifications

Tension(Long Term)	N	150

Tension(Short Term)	N	300

Crush(Long Term)	N/10cm	100

Crush(Short Term)	N/10cm	500

Min. Bend Radius(Dynamic)	mm	20D

Min. Bend Radius(Static)	mm	10D

Operating Temperature	ºC	-20~+60

Storage Temperature	ºC	-20~+60

--------------------------------------------------FAQ------------------------------------------------------

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.

Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.

OPELINK Technology is a high-tech enterprise with a focus on the design and the production of optical communication and accessories. We are among the industry leaders here in China and we own that to our highly skilled and experienced production staff and engineers. We manufacture a complete selection of premium quality products including fiber optic splitters, optical WDM, fiber optic circulator and many other active optical components.

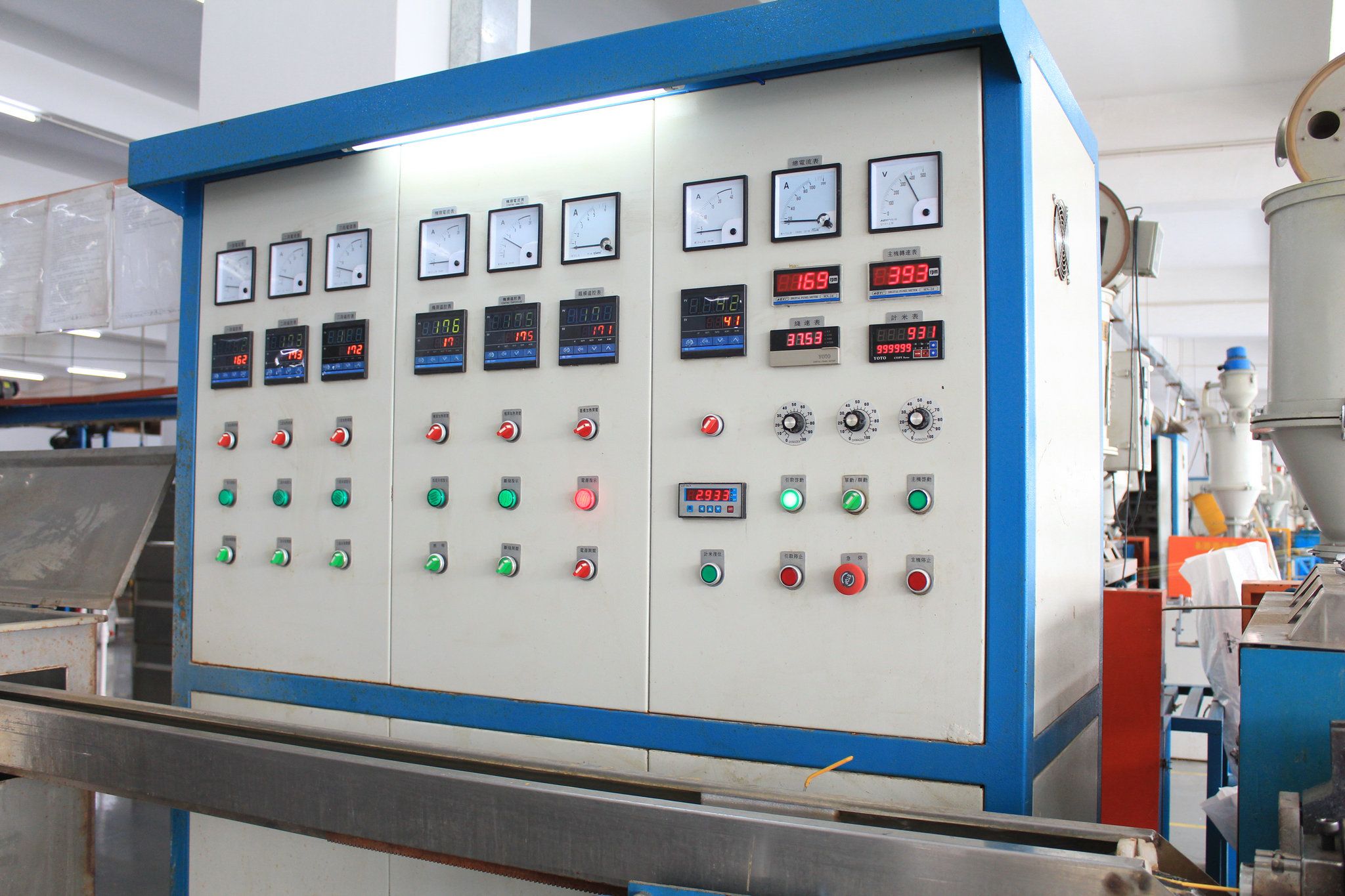

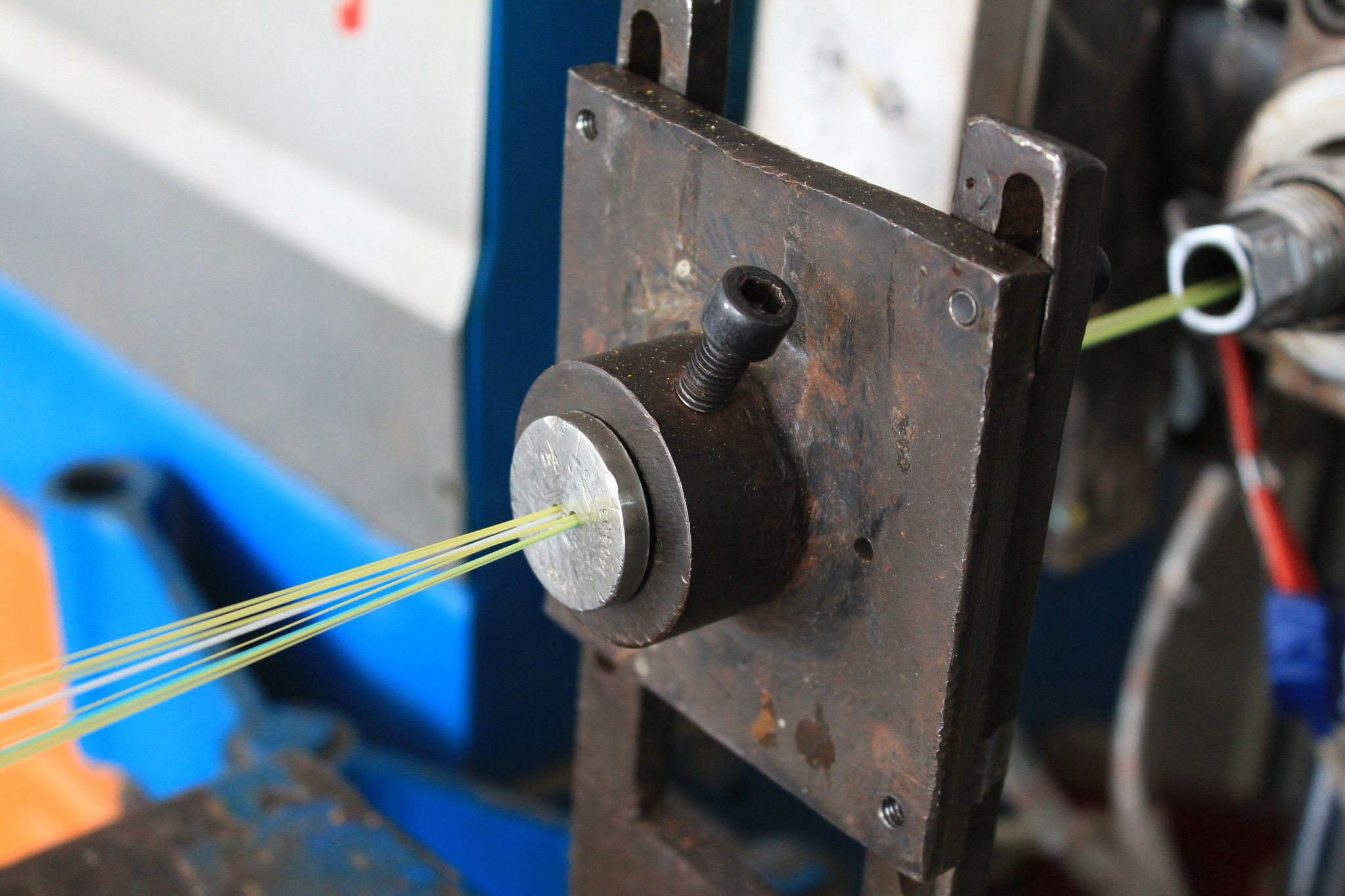

Every stage PF production in our workshop is carefully controlled, from raw material selection to assembly, packaging and transport. We do this to guarantee quality and ensure that all of our customers are satisfied with their delivery.

In addition to our products sold in China, we also do business in France, the United States, Brazil, Russia, and many other countries. So far we have cooperated with Ericsson (Spain), Vodafone (Hungary), etc.

Moreover, OPELINK employs a professional foreign team in which most of members have more than 5 years experience in optical communication equipment.
