Fiber Optic Fast SC UPC Connector for Drop Cable

Name: Fiber Optic Fast SC UPC Connector for Drop Cable
Brand: all-electronics-online.com
SKU: 821868645
Availability: InStock
Rating: 5 (135 reviews)

Price:	US $ 0.4-0.6/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PN-001
Color:	Blue
Polish Type:	UPC
Attenuation:	65dB
Connector:	SC
Fiber Type:	Singlemode
Material:	PC Plastic
Dimension:	50mm
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)
Transmission Medium:	SC Connector

Product Description

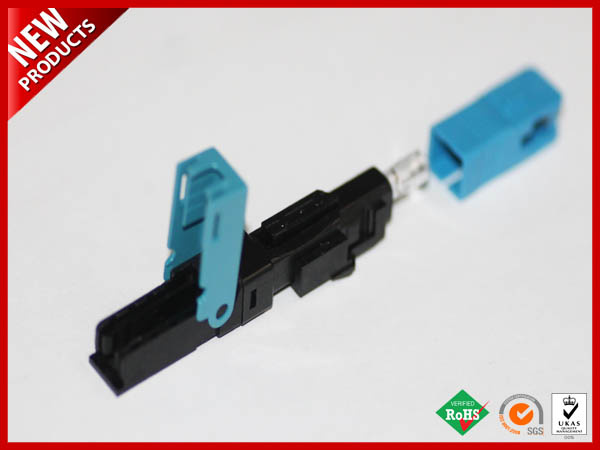

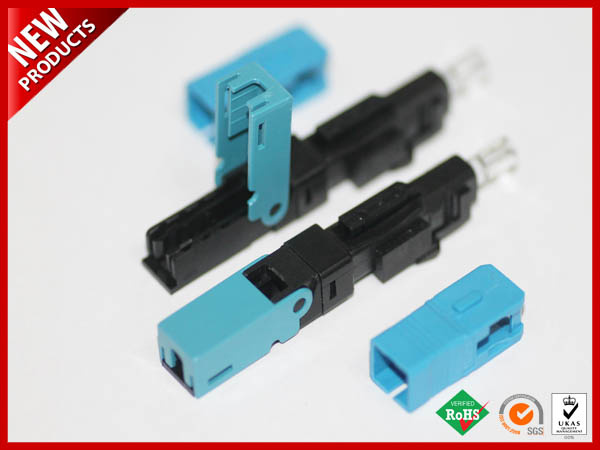

Fiber Optic Fast SC UPC Connector for Drop Cable

Poducts Overview:

PUNO is field installable fiber connector with exquisite volume and excellent optical and mechanical performance developed by us.The PUNO is very reliable,easy to install product and far better than other similar products due to its unique alignment and matching liquid structure.

Application:

√ Telecommunication Networks
√ Instrumentation
√ Active device termination
√ CATV Networks
√ EDFA

Products Details:

Linkage locking structure(Patent protected) PUNO has a structure that can lock fiber and cable simultaneously. While press the handle in the end of connector, the cable are locked by the handle
and 250um fiber are locked by locking ring at the same time. (Figure 1) . No additional tools needed in assembly.

Specification:

Item	Parameters	Remark
Insert Loss (IL)	Typical:0.20dB Max:0.4dB	1310nm & 1550nm
Return Loss (RL)	Typical:48dB Max:45dB	1310nm & 1550nm
Fiber	SM 9/125um G657A1
Installation time	<10S(excluding fiber dispose)
Tensile Strength	>80N	Peak force of cable tension
Reassembly times	10times
Connection cable	Drop cable, Φ2.0mm and Φ3.0mm cable

We as quality proffesional manufacturer leading of Fiber Optic Products like Fiber Optic Cable, Fiber Optic Patch Cords, Fiber Optic Connector, Fiber Optic Attenuators, Fiber Optic PLC Splitters, Fiber Optic Termination Boxes and so on, more details please give us a contact freely and we try our best to supporting.

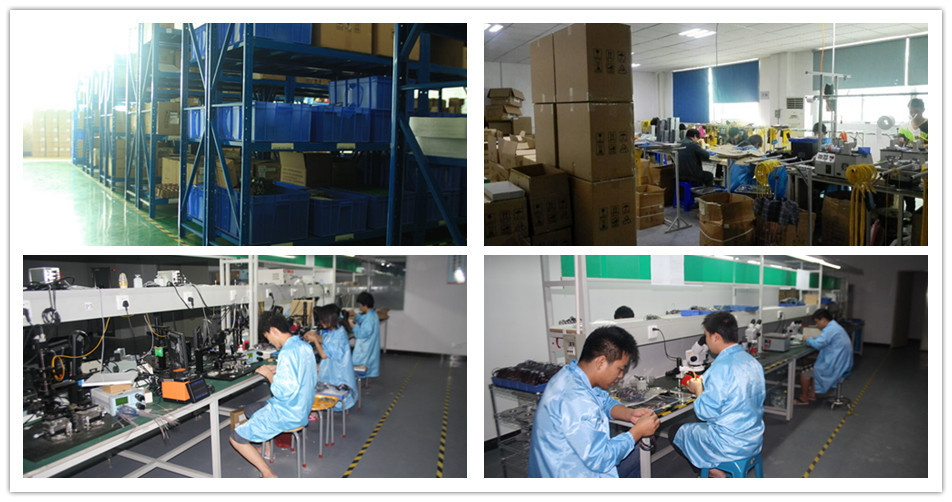

Puno Optic Technology Co., Limited. Is the Chinese manufacturing company of superior quality, specialized in assembling connectors on optical fiber cable, was created on January 1, 2005 after spending three years as an incubated division, and became the international department to offer products around the world.

Today, PUNO promotes the same original culture that has made us successful over the years. We strive to incorporate the highest level of quality in every product we produce, transaction we complete, and effort we undertake.

MISSION

We work with passion to create faster connections between people, places, ideas and values.

VISION

Representing the excellence and values of Made In China worldwide.

VALUES

Quality, Innovation, Expertise, Flexibility, Collaboration, Commitment, Honesty.

MARKET

Telecomunicazioni - Telecommunications - Data Center - Broadcasting - Military - Sensor - Transportation

EXPERTISE

More than 10 years in the fiber optics field: In 2008 we developed one of the international sales office located in HK, the powerful city in China.

PARTNERSHIP

China Mobile, China Union, China Telecom, Huawei, Foxconn.
