Fiber Optic FC-FC Om2 Patch Cord/Patch Cable
| Price: |
US $ 0.01-2/Piece |
| Min Order: |
10000/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
FC-FC |
| Certification: |
CCC |
| Brand: |
ADP/OEM |
Product Description
Description
| Model NO. | Fiber Patch Cable LC/UPC LC/UPC |
| Style | LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.MU/APC Duplex MTRJ/Female, MTRJ/Male |
| Fiber Type | 9/125 SMF-28 or equivalent (Singlemode) OS1 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3 |
| Cable Type | Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH |
| Polishing Manner | UPC,SPC,APC (8°& 6°) |
| Insertion Loss | ≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750 |
| Return Loss (For Singlemode) | UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
| Repeatability | ±0.1dB |
| Operating Temperature | -40C to 85C |
| Geometry Requirement (For Singlemode) | Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
Application
- CATV
- Optical fiber communication systems
- Optical fiber data transmission
- Building network access
- Cabling system, ODF
- FTTX applications

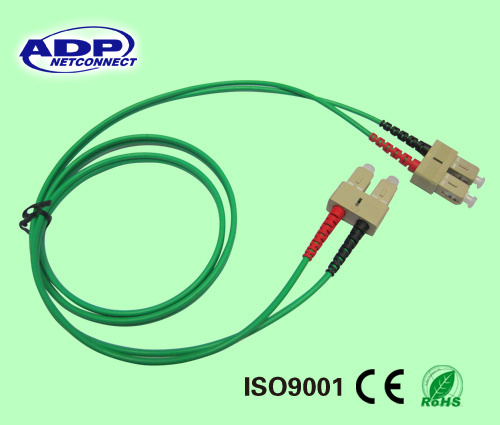

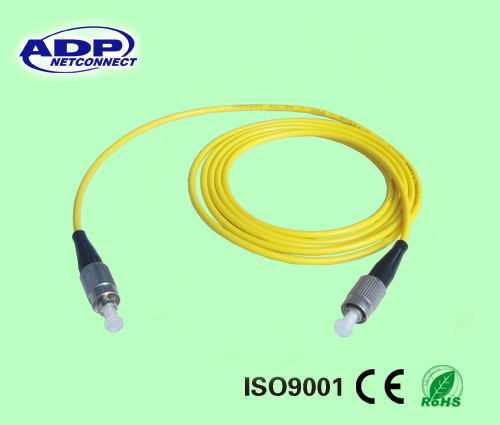

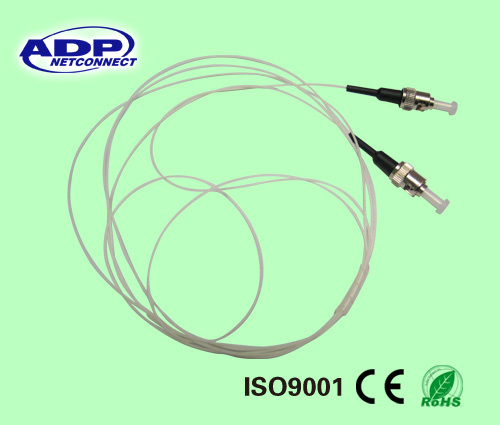

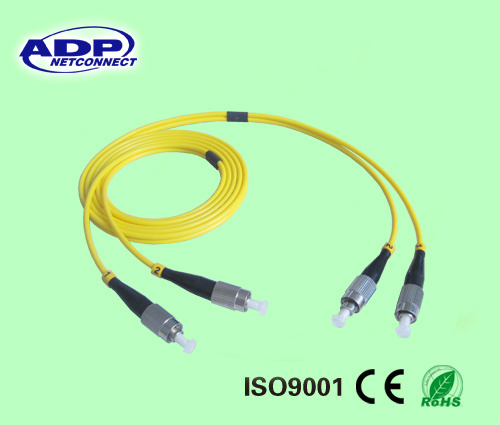

Product show
Packing &delivery
1) Length: length is available according to clients request.
2) Packing: PE bag+outer carton
3) Other packing available according to client's request
Delivery Detail: 7-15 days after receiving 30% T/T or L/C
Company Introduction
Area 8000 m²
Number:100
( Including 10 technical personnel)
Our company was established in 2002 and is a professional manufacturer of Lan cable, patch cord cable, fiber optic cables, coaxial cables, alarm cable, telephone cables, power cables, fiber patch cord s, connectors and accessories.
Our total manufacturing area is 8000 square meters, with a lot of equipment, such as high speed cross product lines, high speed cross supervisor data return line systems and a cat6 twister system.
Our products strictly adhere to ISO9001, CE and ROHS international standards, also covering our design, development, service and management. We have more than 100 employees, including 10 technical personnel. Our annual production value reaches USD 2000,000,000, giving us stable development and increased competitive power within the markets.
ADP enterprise has been and will always be committed to the development and promotion of independent brands.
Certificate
Our products strictly adhere to ISO9001, CE and ROHS international standards,Certificate: UL/CE/ROHS/SGS/ISO9001 Good Service
Over 14 years of factory experience
Over 6 years of foreign trade experience
Direct factory price
Professional one -to-one service
Perfect customer service
OEM is available
Various products range
Main Markets
South America, Russia, Mid East, Eastern Europe, Africa
We also attend the canton fair twice one year.
Any inquiry, just feel free to contact with us any time!
Shenzhen ADP Cables Co., Ltd. Was established in 2002 and is a professional manufacturer for Fiber Optic Cable, LAN cables, Coaxial cable, Security Alarm Cable.
Fiber Optic Cable indoor and outdoor, fiber pigtails, fiber patch cable; CAT3/CAT5E/CAT6/CAT6A/CAT7 cable, RJ11/RJ45 patch cord; 1pair -200pair Telelphone cable; Coaxail Cable RG6/RG58/RG59/RG11...SYV/SYWV serises...Fire Alarm Cable. And fiber patch cord, connector, accessories.
Our company is equipped with full sets coloring machines fiber ribbon forming machine, secondary coating lines, cabling lines, meshing machines, twisting machines, inspection equipment and instrument for all electrical, mechanical, temperature and environmental performance.
Our products strictly adhere to ISO 9001, CE and RoHS international standards, which also cover our design, development, services, and management. We have more than 100 employees, including 10 technical personnel. Our annual production value researches to USD200, 000, 000, giving us stable development and increased competitive power within the market.
We will continue being a people-oriented and faithful supplier offering technical support and good customer service. For more information, please visit our website or contact us directly with your questions or inquiries.
