Fiber Optic LC Duplex OM3 Multimode Uniboot Patch Cord OFNP Cables

Name: Fiber Optic LC Duplex OM3 Multimode Uniboot Patch Cord OFNP Cables
Brand: all-electronics-online.com
SKU: 819012435
Availability: InStock
Rating: 4.3 (107 reviews)

Price:	US $ 3.5-5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PN-009
Color:	Aqua
Cable Diameter:	2.0mm
Length:	10 FT
Fiber Count:	2
Fiber Type:	Multimode, OM3
Jacket Material:	Plenum, OFNR
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	LC
Certification:	ISO9001

Product Description

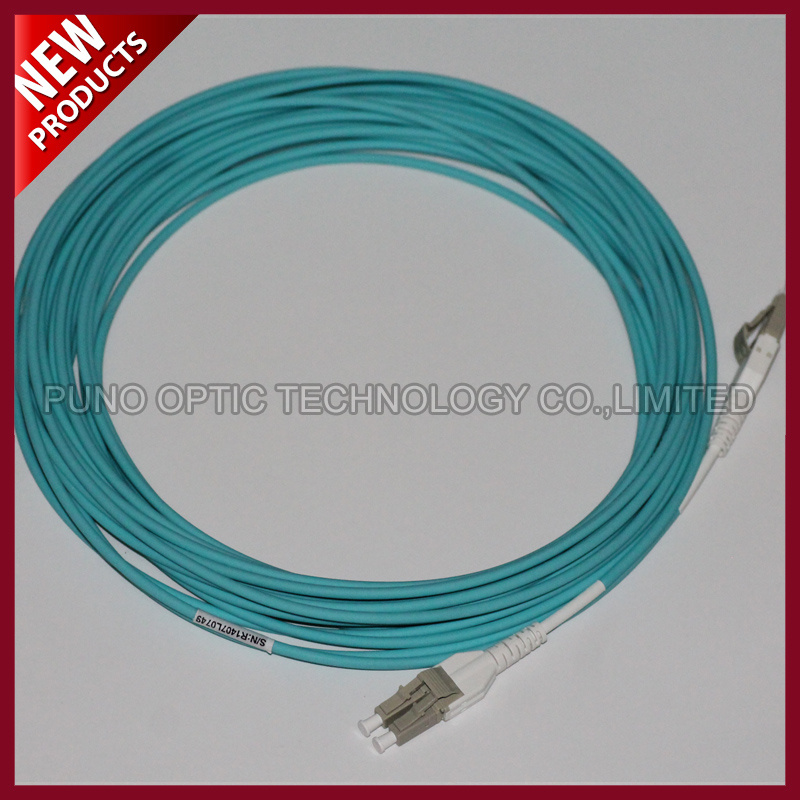

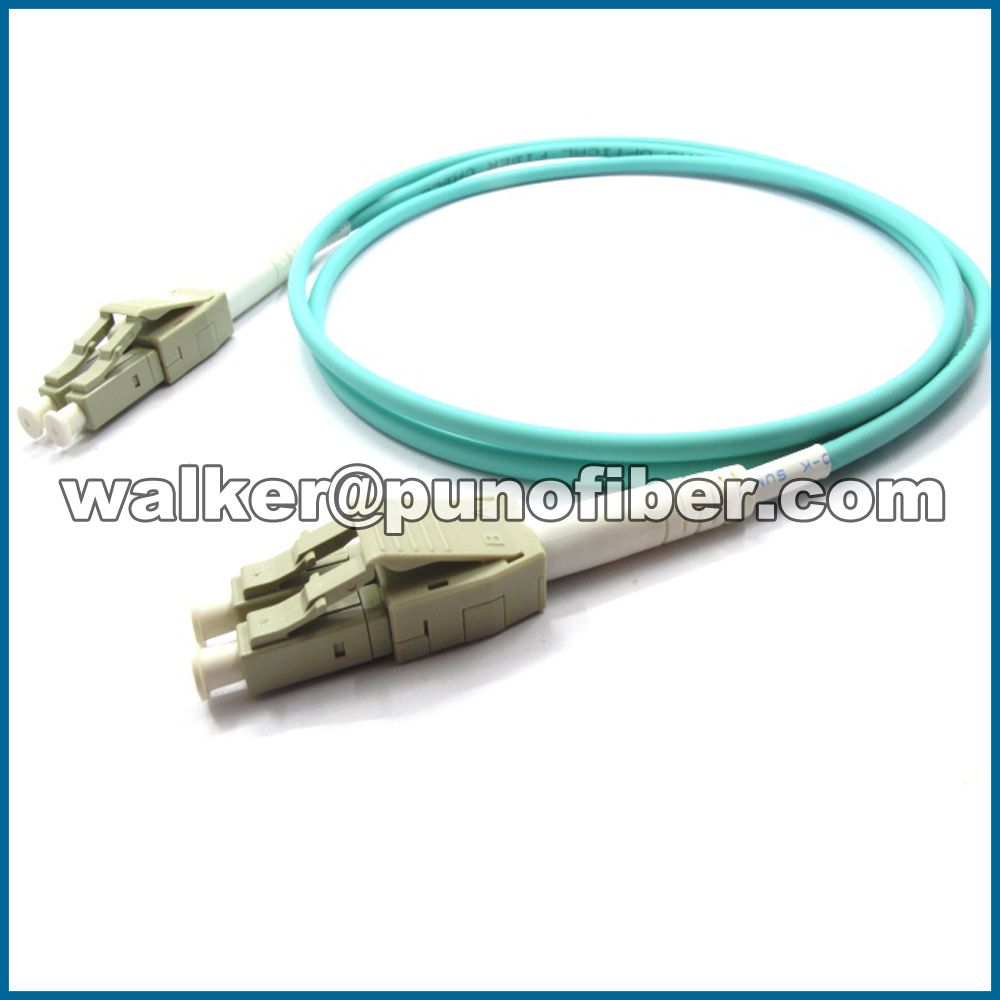

Fiber Optic LC Duplex OM3 Multimode Uniboot Patch Cord OFNP Cables

The Skinny-Trunk 2mm Uniboot LC fiber optic patch cords are designed for high performance. The small
diameter saves space and reduces congestion, while providing manageability and flexibility. Skinny Trunk
Jumpers are rigorously tested for repeatability and loss, giving you the highest quality product that will
perform for generations of hardware to come.

Keyed Features:

√ Uniboots allow easy plug-in/unplug and robust strain relief;
√ 2mm round cordage allows routing and flexibility;
√ Plenum is offered as standard;
√ Industry leading maximum insertion loss of .15dB;
√ Available in singlemode and multimode (OM3 and OM4 only);
√ Switchable Connector to change polarity.

Application:

√ Data centre High cabling density applications;
√ LAN and WAN.

Technical Information:

Fiber count	Simplex (1-fiber) tight buffered Duplex (2-fiber) jacketed zipcord
Cable jacket ratings	Riser (OFNR) Low Smoke Zero Halogen (LSZH) per: IEC 60332-1-2, IEC 60332-3-24, IEC 60754-1, IEC 60754-2, IEC 61034-2
Fiber types	Single-mode: OS2 (G.652.D) 9/125 LWP Bend-Insensitive (G.657.A2/B2)
Connector types end 'A'	Simplex or Duplex LC/APC, SC/APC
Connector type end 'B'	Simplex or Duplex LC/APC, SC/APC
Jacket color	OM3 10G: Aqua
Cable outside diameter (OD)	1.6mm duplex and simplex 3mm duplex and simplex 900 micron tight buffered
Connector cable retention	50N @ 0ºC 19.4N @ 90ºC
Connector durability	500 cycles
Bend radius, minimum	1.6mm: 16mm 3mm: 29mm 900 micron: 9mm

Optical Properties:

Items		Unit	Specification
Cladding Non-Circularity		%	≤2.0
Coating Diameter		μm	245±10
Cladding-Coating Concentricity Error		μm	≤1.0
Core Diameter		μm	50±2.5
Cladding Diameter		μm	125±1.0
Cable Material
Outer sheath	LSZH (Aqua RAL 6027)
Outer sheath of single fiber	LSZH (Aqua RAL 6027)
Secondary sheath of single fiber	Nylon TIGHT
Strength member	Aramid yarns
Fiber Type	MM‐50/125μm
Connector Type	LC - LC

Certification and Compliance:

RoHS	Directive on Restriction of Hazardous Substances
GR-326-CORE	Generic Requirements for Single-mode Optical Connectors and Jumper Assemblies. Optical Fiber Cabling
TIA/EIA-568-C.3	Components Standards
EIA/TIA-604	Fiber Optic Connector Intermateability Standard
UL 94	Our Third Party Tests for Flammability of Plastic Materials for Parts in Devices and appliances

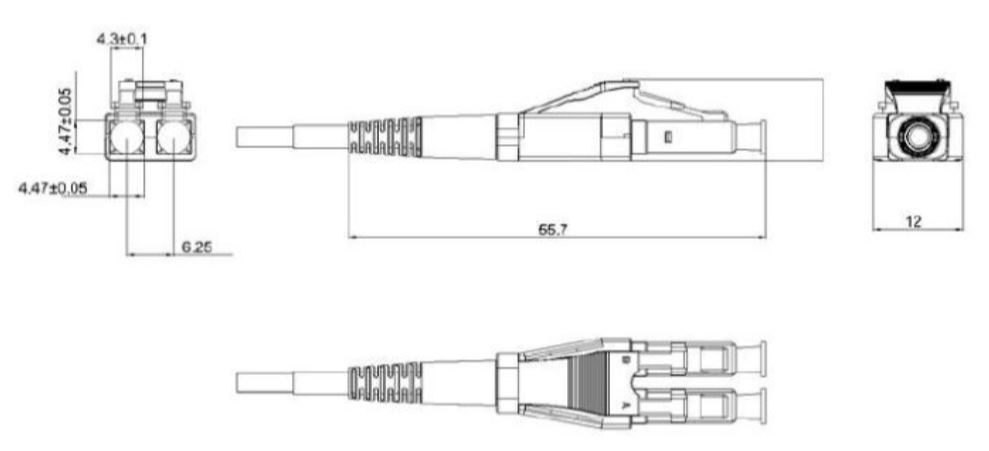

Connector Drawing:
