Fiber Optic LC Duplex Waterproof Outdoor Assembly Cable

Name: Fiber Optic LC Duplex Waterproof Outdoor Assembly Cable
Brand: all-electronics-online.com
SKU: 837241725
Availability: InStock
Rating: 4.6 (76 reviews)

Price:	US $ 1-25/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	009
Product Type:	Waterproof Cable
Fiber Type:	Singlemode OS2 9/125
Connector:	IP67 to IP67/LC/SC/FC/ST
Connection Style:	Simplex/Duplex
Branch Diameter:	3.0mm
Trunk Diameter:	4.0mm
Return Loss:	50dB
Application:	Probe
Type:	Single-mode Fiber
Connection Structure:	LC
Certification:	CCC

Product Description

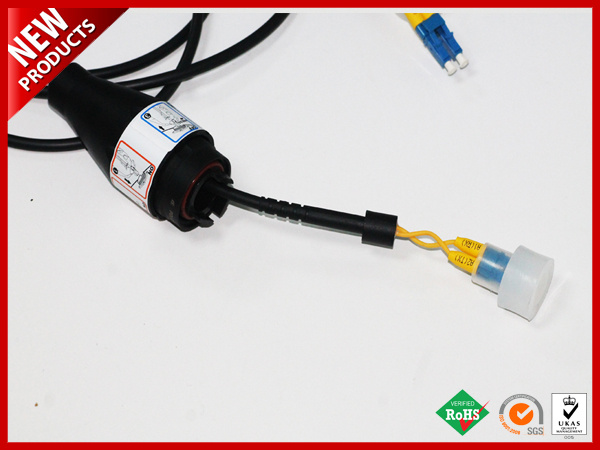

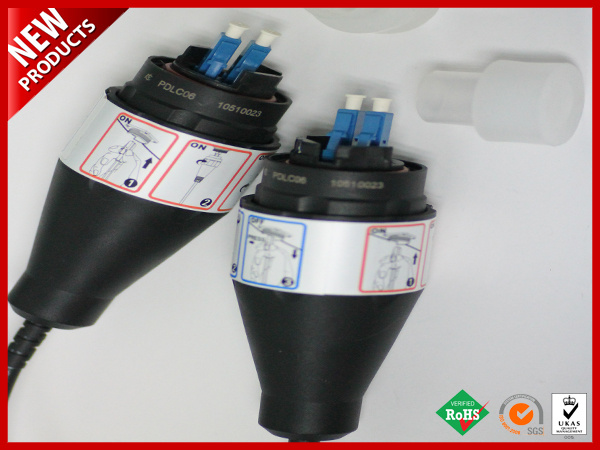

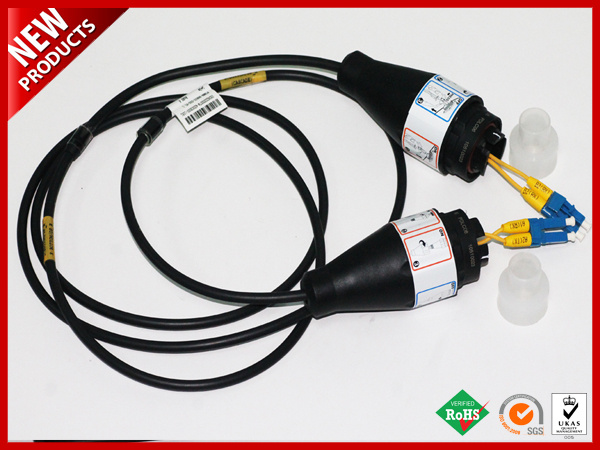

Fiber Optic LC Duplex Waterproof Outdoor Assembly Cable

PUNO's Fiber-to-the-Antenna (FTTA) Hybrid Cables are designed to support the rapid growth, urgent deployment and increasing density of wireless systems. The cables designed by Megladon can support any variety of rugged outdoor applications and are customizable to support any equipment grouping. The hybrid cable creates long-term, reliable service in the harshest of environments.

√ Feature

Site Renovation solutions;
Hybrid cables (Fiber + Power);
MultiFiber Cables (Single-mode & Multi-mode);
Tower FO & power aggregation points;
Local power aggregation points;
Surge Protection.

√ Application

PUNO offers everything you need to meet your FTTA objectives for towers, rooftops and other support structures.

√ Technical Information

Product Type	Waterproof Cable	Fiber Type	Singlemode OS2 9/125
Connector	IP67 to IP67/LC/SC/FC/ST	Connection Style	Simplex/Duplex
Trunk Diameter	4.0mm	Branch Diameter	3.0mm
Insertion Loss	≤0.20dB	Return Loss	≥50dB
Storage Temperature	-55°C-85°C	Operating Temperature	-40°C-70°C

√ Features

High temperature stability, low insertion loss;
Water proof, dust proof and corrosion resistant;
Bump resistance - 4000 bumps @ 40g acceleration;
Easy operation, reliable and cost-effective installation;
Free fall resistance - 500 falls onto concrete from 1.2M height.

Puno Optic Technology Co., Limited. Is the Chinese manufacturing company of superior quality, specialized in assembling connectors on optical fiber cable, was created on January 1, 2005 after spending three years as an incubated division, and became the international department to offer products around the world.

Today, PUNO promotes the same original culture that has made us successful over the years. We strive to incorporate the highest level of quality in every product we produce, transaction we complete, and effort we undertake.

MISSION

We work with passion to create faster connections between people, places, ideas and values.

VISION

Representing the excellence and values of Made In China worldwide.

VALUES

Quality, Innovation, Expertise, Flexibility, Collaboration, Commitment, Honesty.

MARKET

Telecomunicazioni - Telecommunications - Data Center - Broadcasting - Military - Sensor - Transportation

EXPERTISE

More than 10 years in the fiber optics field: In 2008 we developed one of the international sales office located in HK, the powerful city in China.

PARTNERSHIP

China Mobile, China Union, China Telecom, Huawei, Foxconn.
