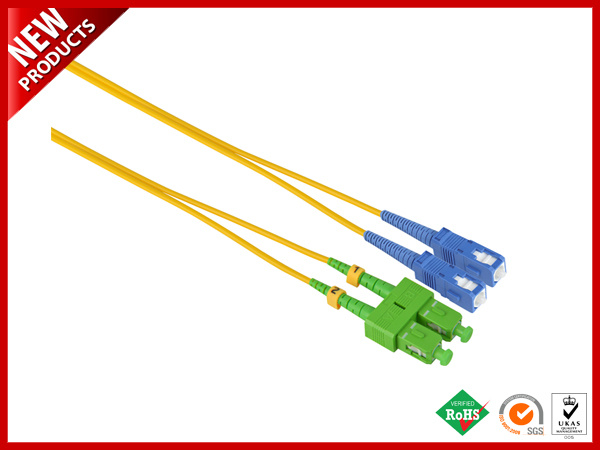

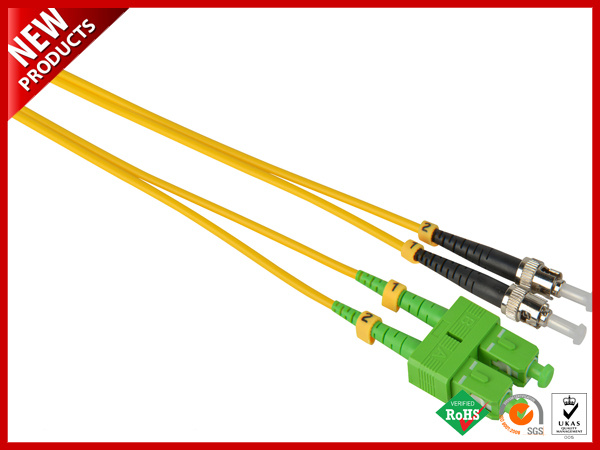

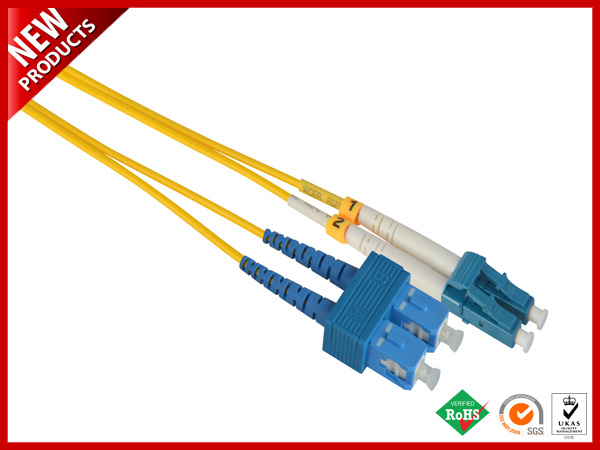

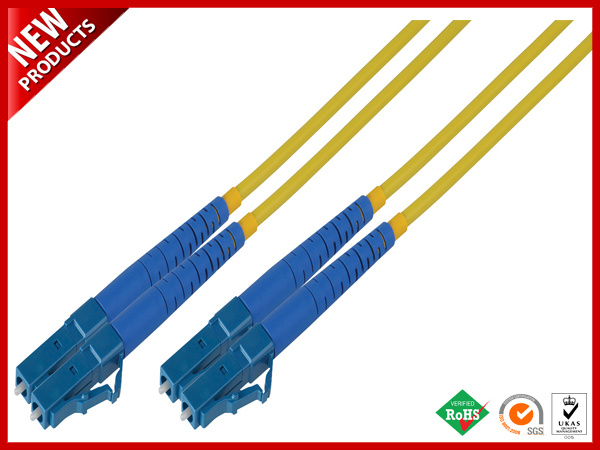

Fiber Optic LX. 5 Patchcord with Singlemode Yellow Outer Sheath

Name: Fiber Optic LX. 5 Patchcord with Singlemode Yellow Outer Sheath
Brand: all-electronics-online.com
SKU: 807022715
Availability: InStock
Rating: 5 (38 reviews)

Price:	US $ 5-6/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LX5
Color:	Yellow
Cable Diameter:	3.0mm
Fiber Type:	Singlemode
Connector:	LX5
Fiber Count:	2 Cores
Polish Type:	APC
Insertion Loss:	0.3dB
Return Loss:	65dB
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	Lx5
Brand:	Puno

Product Description

Fiber Optic LX.5 Patchcord With Singlemode Yellow Outer Sheath

The industry's most reliable small-form-factor fiber optic connector. Doubling capacity is easy with the LX.5. By allowing two fibers instead of one to fit into the standard SC adapter footprint, the LX.5 doubles the density of fiber termination equipment. The LX.5 was developed with carrier-class reliability to ensure network integrity. Available in simplex or duplex configurations, the LX.5 maintains single circuit access and incorporates safety shutters on both the connector and adapter body to provide protection from dust, dirt, and ferrule end-face handling damage. The connector also features a latching mechanism that effectively releases the connector from the adapter. Its user-friendly and intuitive design prevents cables from snagging at the back of the connector.

Application:

Telecom; LAN, WAN; CATV;
Sensor Systems; Measuring Technique;
Utilities, Railways.

Features:

Doubles the density; twice as many fiber connections;
Exactly half the size of the SC connector; adapter fits the SC footprint;
Shutters on both the adapter and connector;
Incorporates proven, reliable ceramic ferrules;
Available in singlemode and multimode versions;
Easy to convert between simplex and duplex connectors.

Data Parameter:

Fiber Type		SM		MM
Connector Tytpe		MTRJ	D4, FC, SC, ST, LC, E-2000, MU	D4, FC, SC, ST, LC, E-2000, MU	MTRJ
Insertion Loss (Typical)		≤0.4dB	≤0.2dB	≤0.4dB	≤0.2dB
Insertion Loss (Max)		≤0.5dB	≤0. 3dB	≤0.3dB	≤0.5dB
Return Loss (Typical)	PC		≥50dB
	APC		≥65dB
	UPC		≥55dB	≥55dB
Mating Durability	≤0.2dB
Durability	≥1000 times
Storage Temperature	- 40ºC~+ 85ºC

Dimensions:

Cable Diameter	3.0mm
Jacket Color	Yellow
Connector 1	D4
Connector 2	D4
Polishing Type	APC
Fiber Type	G657A1, SM, Single-mode
Cable Length	1m / 10ft; or customized
Total Fibers, quantity	2
