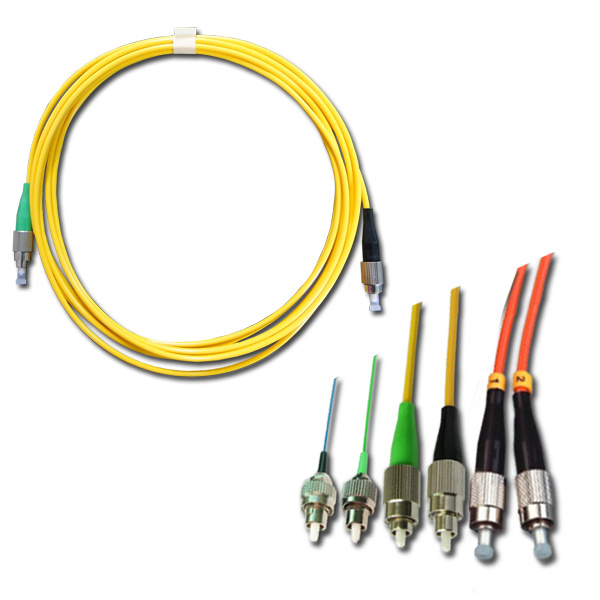

Fiber Optic mm Distribution Cables

Name: Fiber Optic mm Distribution Cables
Brand: all-electronics-online.com
SKU: 774392255
Availability: InStock
Rating: 5 (62 reviews)

Price:	US $ 2.5/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	distribution cables
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
2f:	Armored Cable
Dx:	Sm
Mm:	Om3
2f Cable:	mm
Outdoor:	Outdoor Cable Dx
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	SC
Certification:	ISO9001

Product Description

APPLICATIONS:

Pigtails and patch-cord ideal for use in optical device, equipment Ideal for use in distribution frame;

FEATURES:
High crushing resistant, mouse-biting proof.
Good mechanical property and environment property
Flame resistant performance
Soft, agile, convenient for connection
Satisfy various request of markets and customers

Item	Units	Single Mode	Multimode
Core/Mode Diameter	μm	9.2±0.4μm@1310nm	50±2.5μm	62.5±2.5μm
		10.4±0.8μm@1550nm
Cladding Diameter	μm	125±1μm	125±1μm	125±1μm
Max. Attenuation	dB/km	0.4dB/km@1310nm	3.5dB/km@850nm	3.5dB/km@850nm
		0.3dB/km@1550nm	1.5dB/km@1300nm	1.5dB/km@1300nm
Operating temperature	ºC	-40ºC~+85ºC
Outer diameter	mm
Net weight	kg/km
Allowable bending radius	(mm)	25
Allowable tensile	(N)	200
Crush resistant	N/100mm	3000

Thank you for viewing!
Please ask if you have any questions!
Welcome to visit our website:www.koc.com.cn

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.

About KOC

Located in Shenzhen, China, KamaxOptic Communication Co. Ltd., well-known as KOC, is specialized in fiber optic communication products and accessories. She offers precise customized solutions for various customers involved in telecommunication, broadcast, CATV and network industry worldwide.

Our quality is guaranteed by the scientific management with the assistances of professional personnel, advanced testing equipments and efficient ERP system under the strict guidance of ISO9001: 2000, from supplier evaluation to inbound material examination, from processing monitoring to permanent inspection, from packing to shipping. We do care for every detail!

To be dedicated to be a popular manufacturer with her quality products, satisfactory services and attention to details through the full commitment of each personnel to work as one team in an effort to exceed our customer expectations.

To operate the business in a transparent and honest manner, that our customers, our associates and our business partners are proud to play their part in our success.

Please visit us website for more information: http://www.koc.com.cn
