| Prod Model: |
Fiber optic patch cord PDLC Patch Cords |
| Insertion Loss: |
Lesst Han 0.3 |
| Return Loss: |
More Than 50 |
| Operating Temperature: |
-20~75 Degree |
| Storage Temperature: |
-40~75 Degree |
| Apex Offset: |
Less Than 50um |
| Fiber Core: |
G652D, G67A1,etc. |
| Cable Type: |
Simplex, Duplex, etc. |
| Cable Od: |
0.9mm, 2.0mm, 3.0mm |
| Cable Material: |
PVC, LSZH |
| Connector: |
Sc, LC, St,etc. |
| Application: |
Medicine |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC-SC |
| Certification: |
ISO9001 |
| Sheath Material: |
LSZH |
Product Description

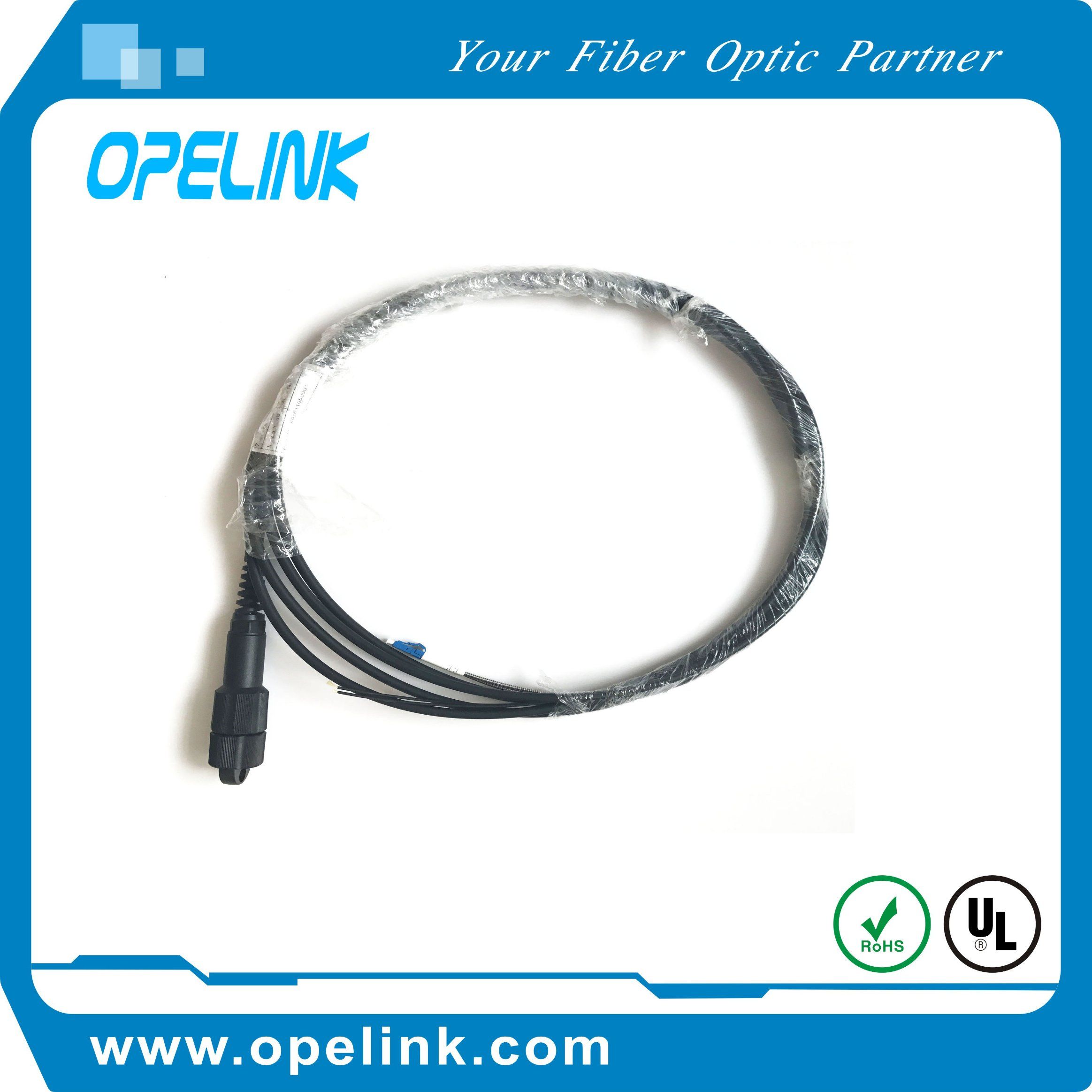

Fiber Optic PDLC Patchcord

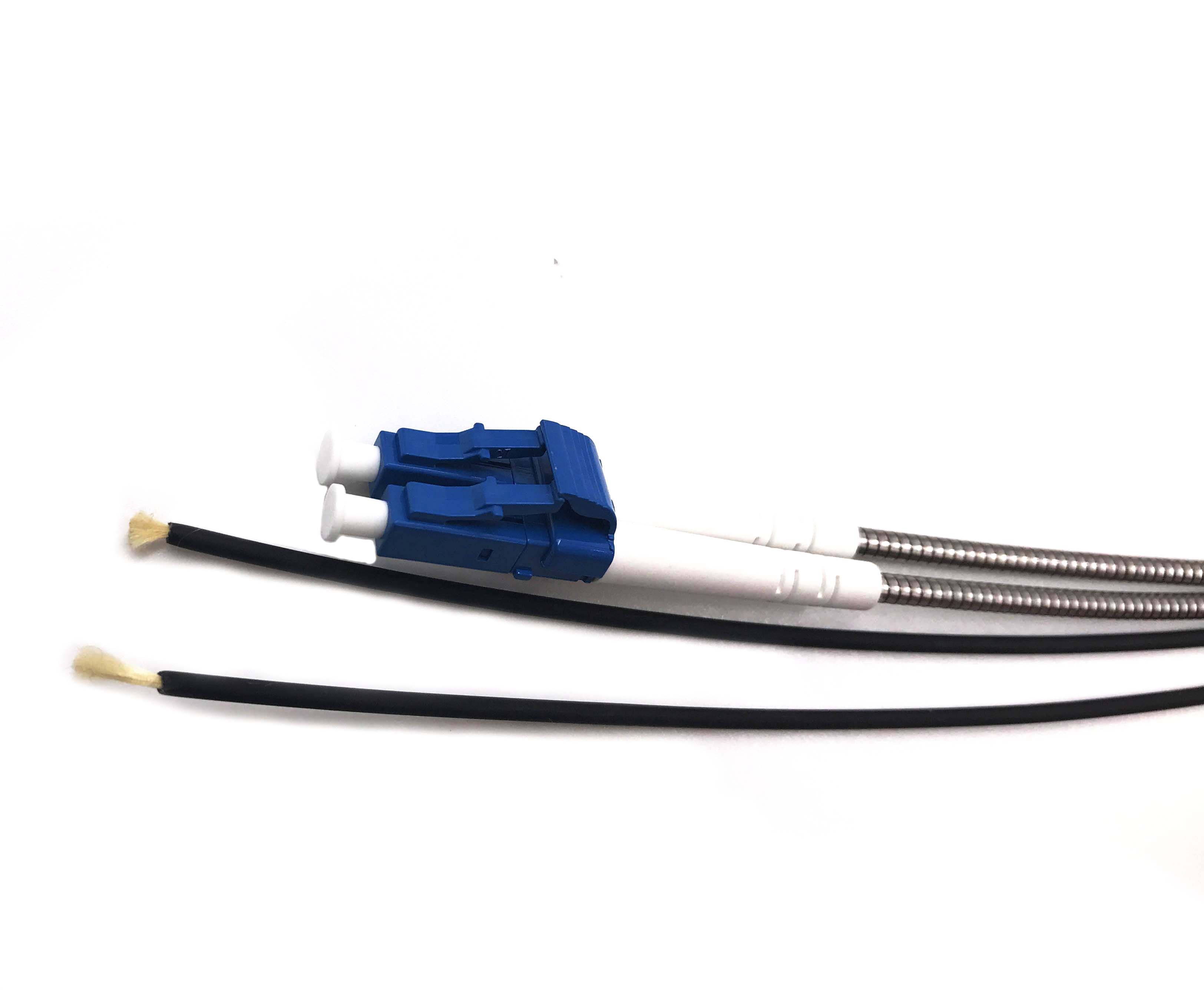

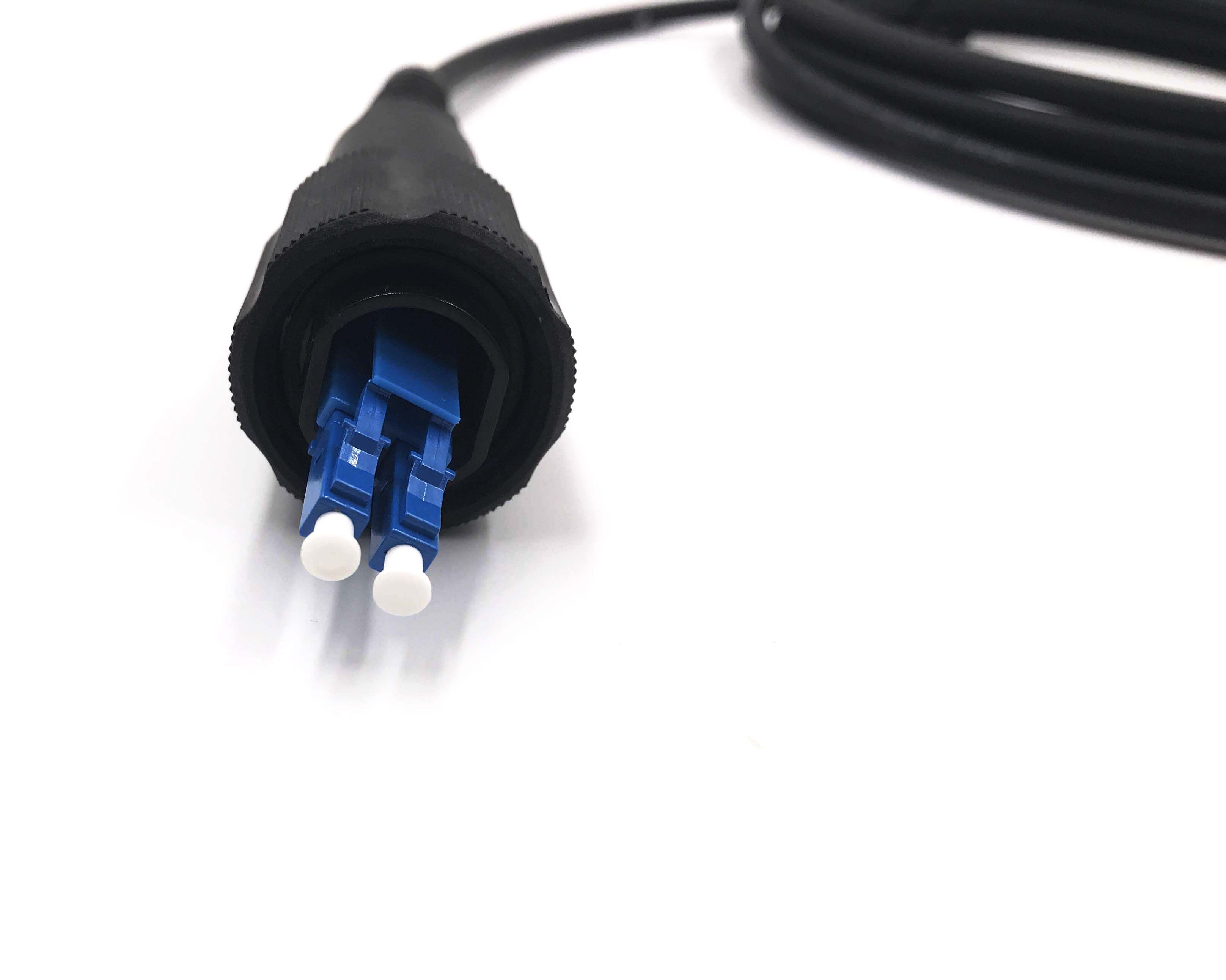

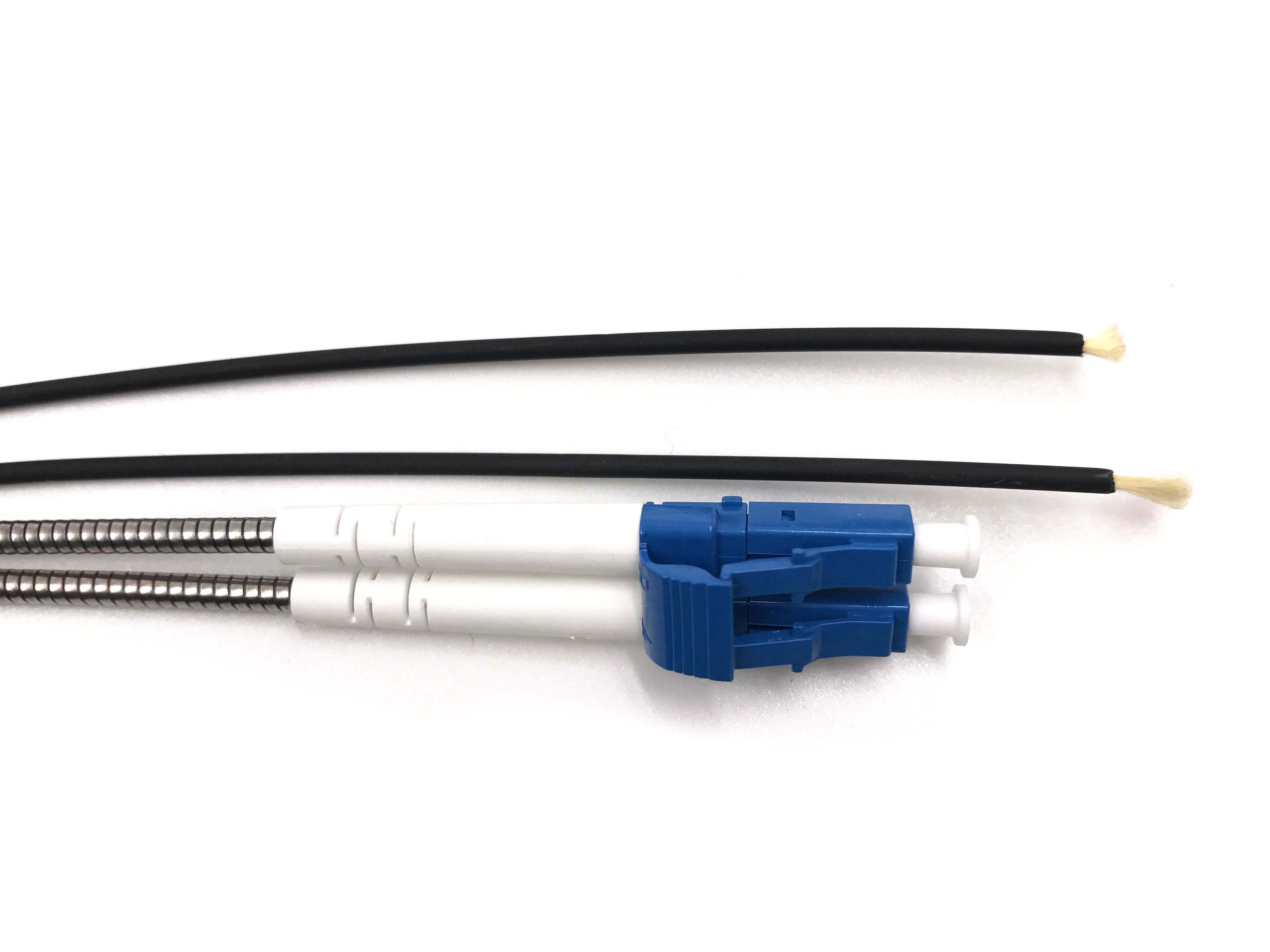

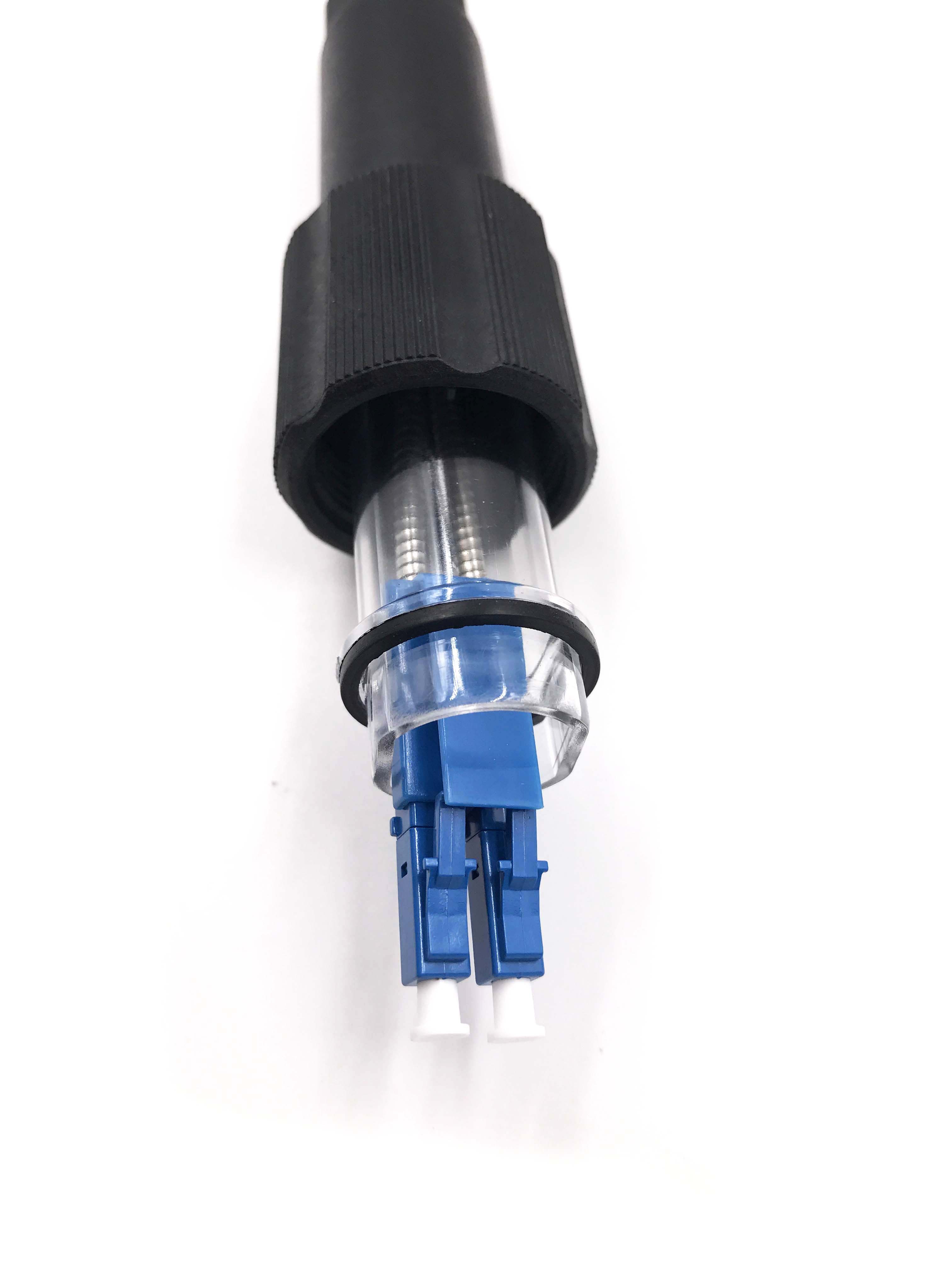

Description:Optical Cable Assembly,PDLC,Single mode,GYFJH 2A1a(LSZH),7.0mm,2 Cores,2mm,Outdoor Protected Branch CablePDLC Waterproof fiber optic patch cord is standard size for Duplex LC Connectors, and the outer housing with metal protective device. The connecting is safe and reliable. Also have the functions of waterproof, dustpoof. This patch cords widely used in FTTA, Base station, and the outdoor waterpoof condition. Features:1. Standard LC Duplex connector, can be connected with normal LC Adapters2. Light weight,waterproof, dustproof, moistureproof , Metal hard housing.3. Wall seal design,easy operation, strong and durable. Application:Used in bad outdoor conditionUsed in connecting communication equipmentUsed in FTTA
Specifications: | Connector type | PDLC/UPC, LC/UPC |
| Insertion Loss | ≤0.3db |
| Return Loss | ≥50db |
| Fiber Mode | Single mode(G652D,G657A) |
| Cable OD | 7.0mm |
| Operating Wavelength | 1310nm,1550nm |
| Fiber Length | 1m, 2m….. Other length optional |
| Operating Temperature | -20ºC- +75ºC |
| Storage Temperature | -40ºC- +75ºC |
Ordering information: | Type | Fiber Core | Cable Type | Cable OD | Cable Material | Cable
Color | Connector
(A End -B End) | Patchcord
Length |
PT=Patchcord
PY=Pigtail | S1=G652D
S2= G657A1
M1=50/125
M2=62.5/125
M3=OM3
M4=OM4
S7=G657A1
S8=G657B3
XX=other | 01=simplex
02=Duplex
03=Armoured
04=Distribution
05=Ribbon
06=breakout
07=drop cable
XX=other | L=0.9mm
2=2.0mm
3=3.0mm
XX=other
| 1=PVC
2=LSZH
| 01=Blue 02=Orange
03=Green 04=Brown
05=Slate 06=White
07=Red 08=Black
09=Yellow 10=Violet
11=Rose 12=Aqua
13=12Color XX=other | SU=SC/UPC SA=SC/APC
FU=FC/UPC FA=FC/APC
LU=LC/UPC LA=LC/APC
ST=ST/UPC
MPO=MPO/PC MPA=MPO/APC
00=NONE
XX=other | 0.5M=0.5M
10M=10M
XXX=other
|
----------------------------------------------------FAQ---------------------------------------------------Q1. Can I have a sample order for this product? What' MOQ of it?A: Yes welcome send sample order for test. MOQ is 1 piece. Q2. What about the lead time?A:Sample needs 3-5 days, mass production time needs 1-2 weeks. Q3: What' s the payment termA: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable. Q4. How do you ship the goods and how long does it take to arrive?A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5:
What' s the freight of it? A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you. Q6: Do you offer guarantee for the products?A: Yes, we offer 1-2 years warranty according to different products. Q7:
What action will you take if there are some product problems?A: If there are defective ones in the batch of products, we will offer spare ones for.
