Fiber Optic PLC Splitter 1X64 Plastic Box for Local Area Network and Gpon

Name: Fiber Optic PLC Splitter 1X64 Plastic Box for Local Area Network and Gpon
Brand: all-electronics-online.com
SKU: 817887145
Availability: InStock
Rating: 4.9 (51 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLC Splitter 1x64 Plastic Box
Connection Structure:	St
Certification:	RoHS, ISO9001, UL
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)
Application:	Communication, Medicine
Light Source TYPE:	Fiber Optics

Product Description

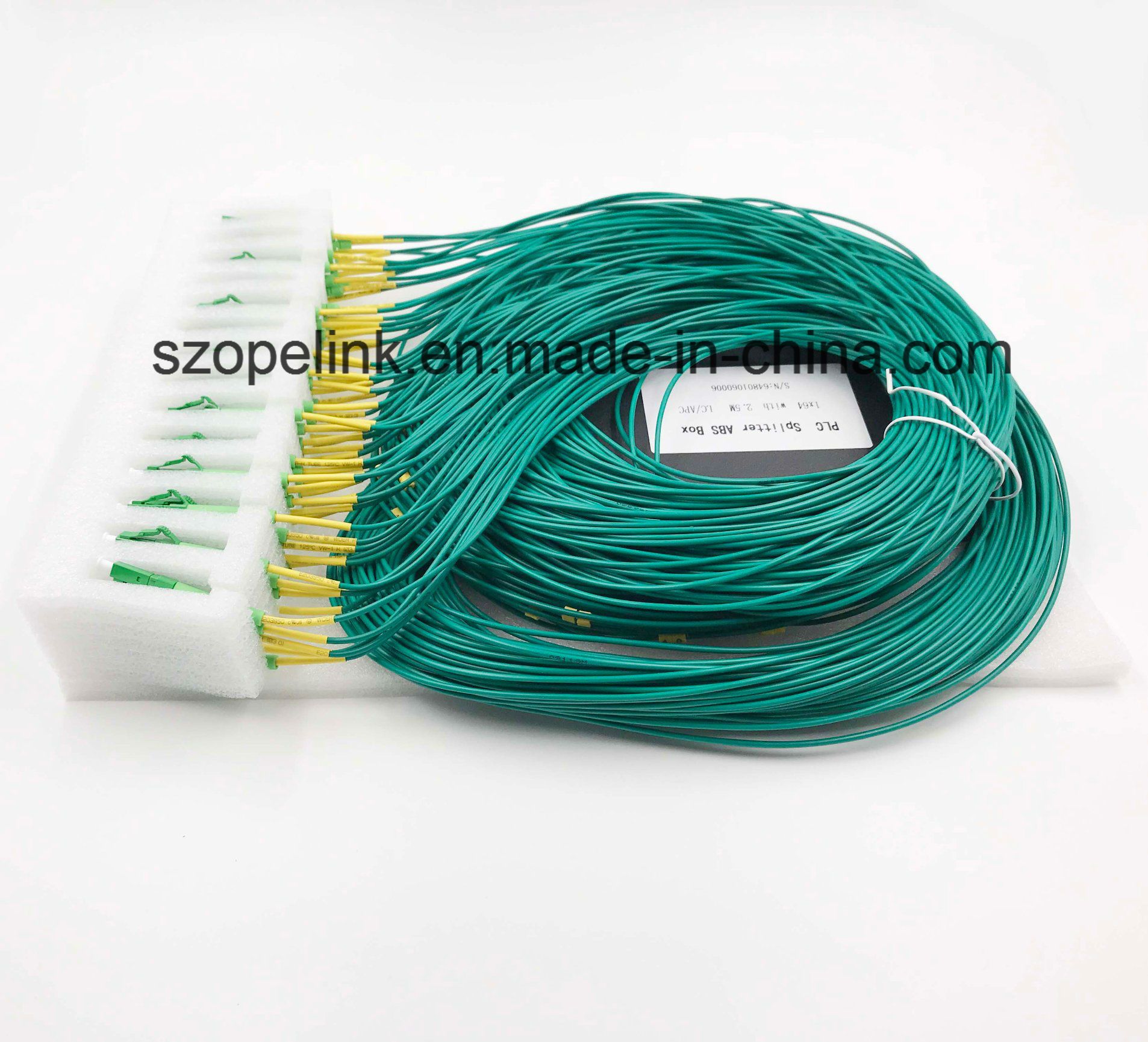

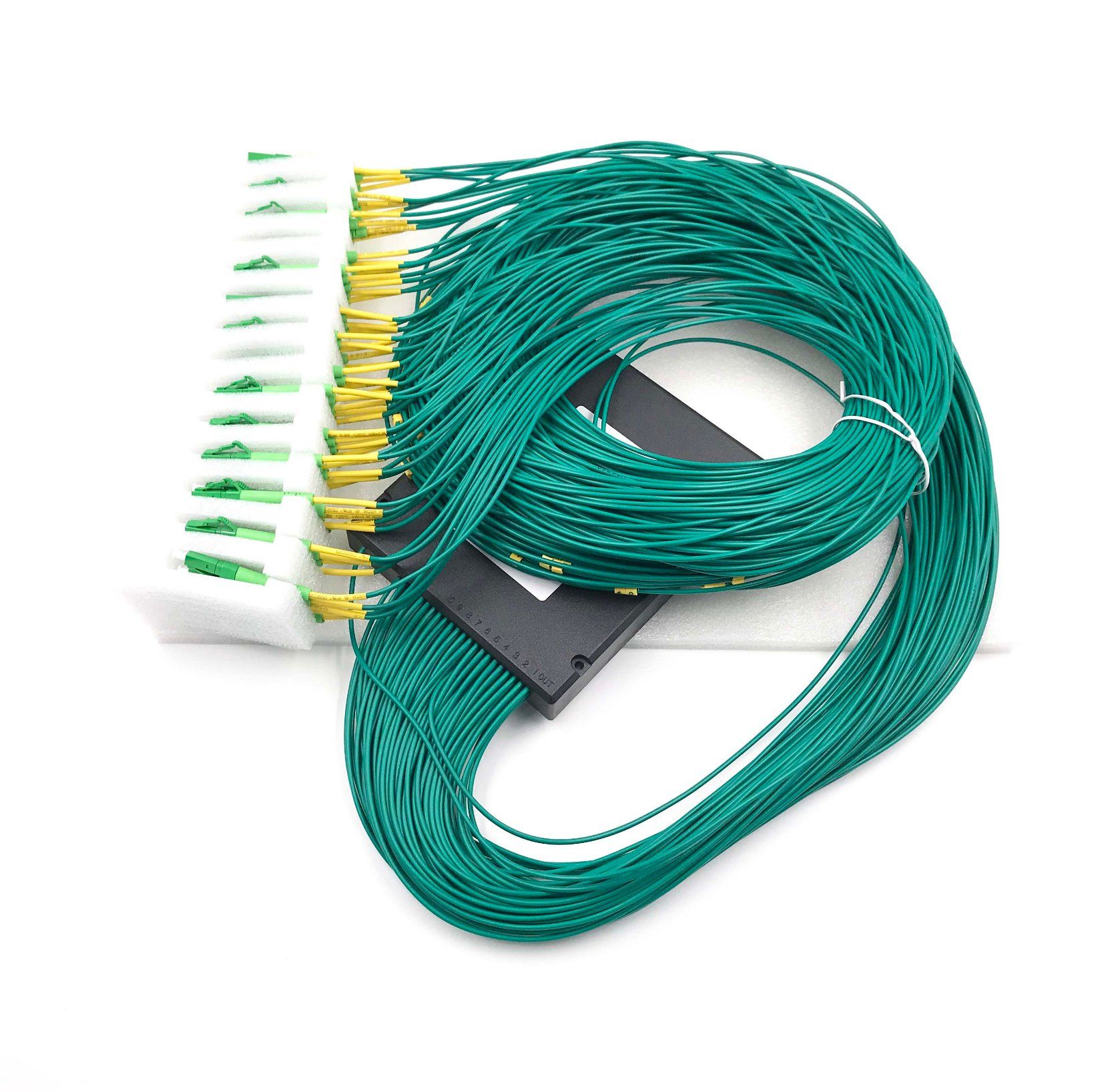

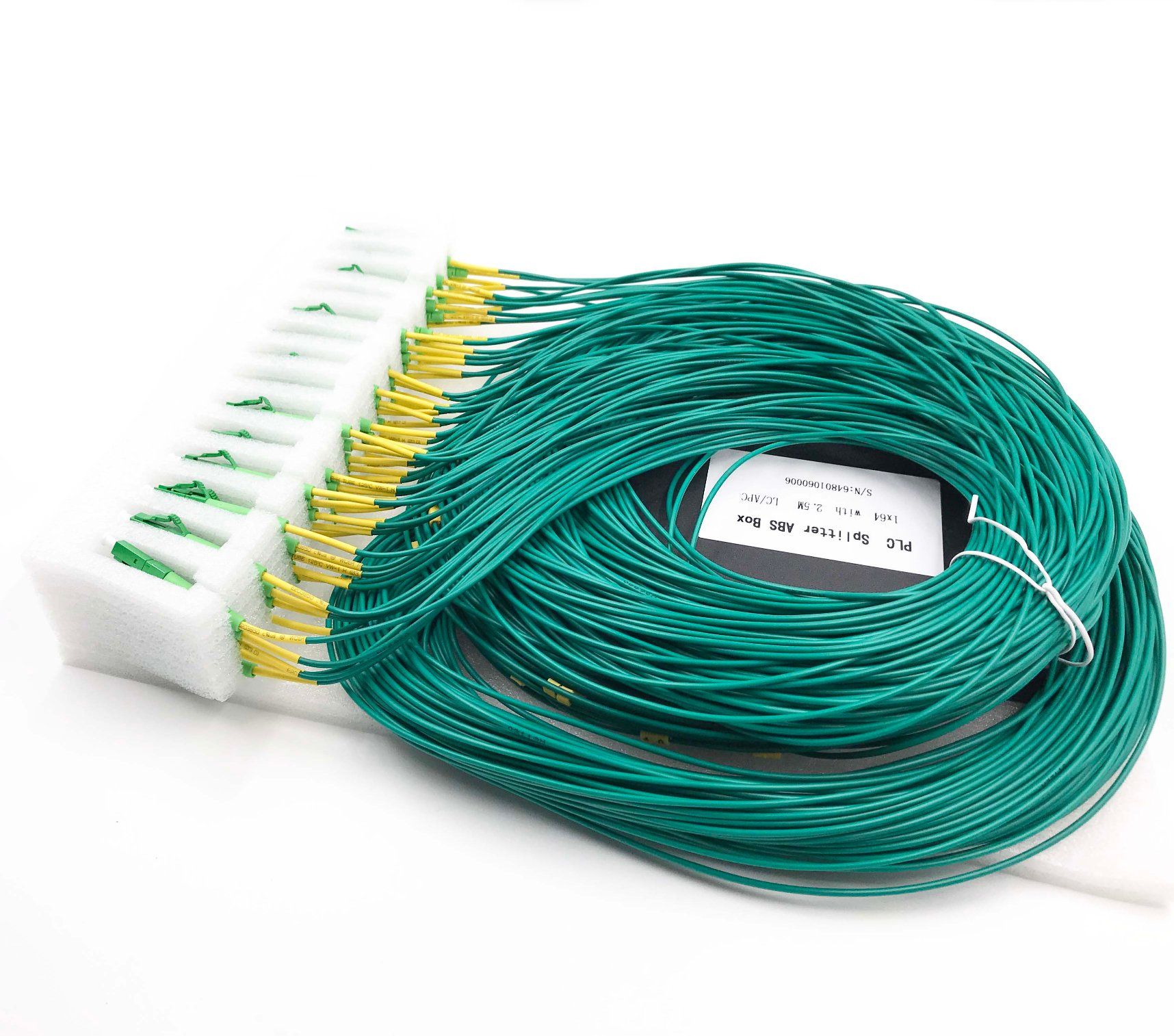

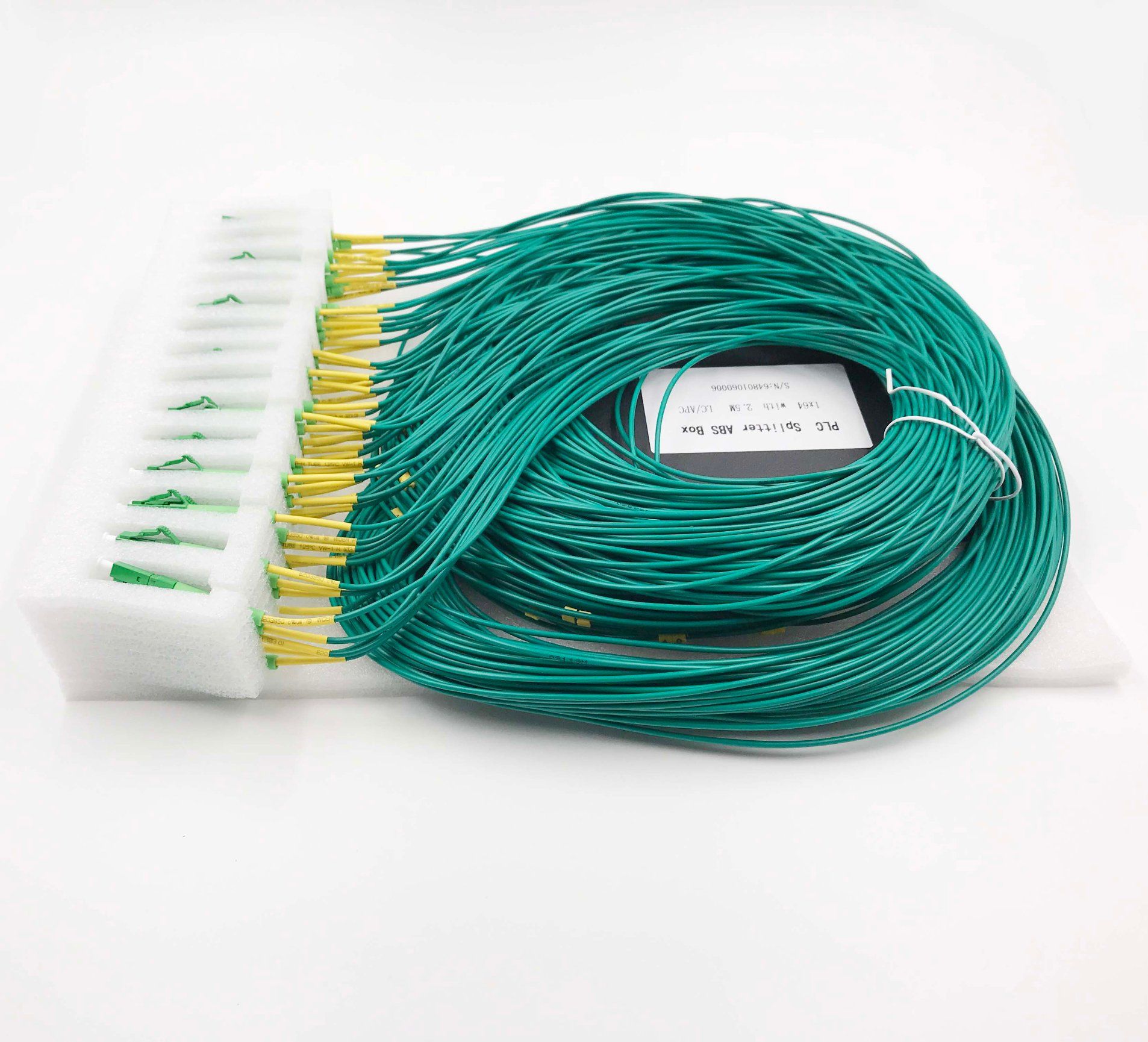

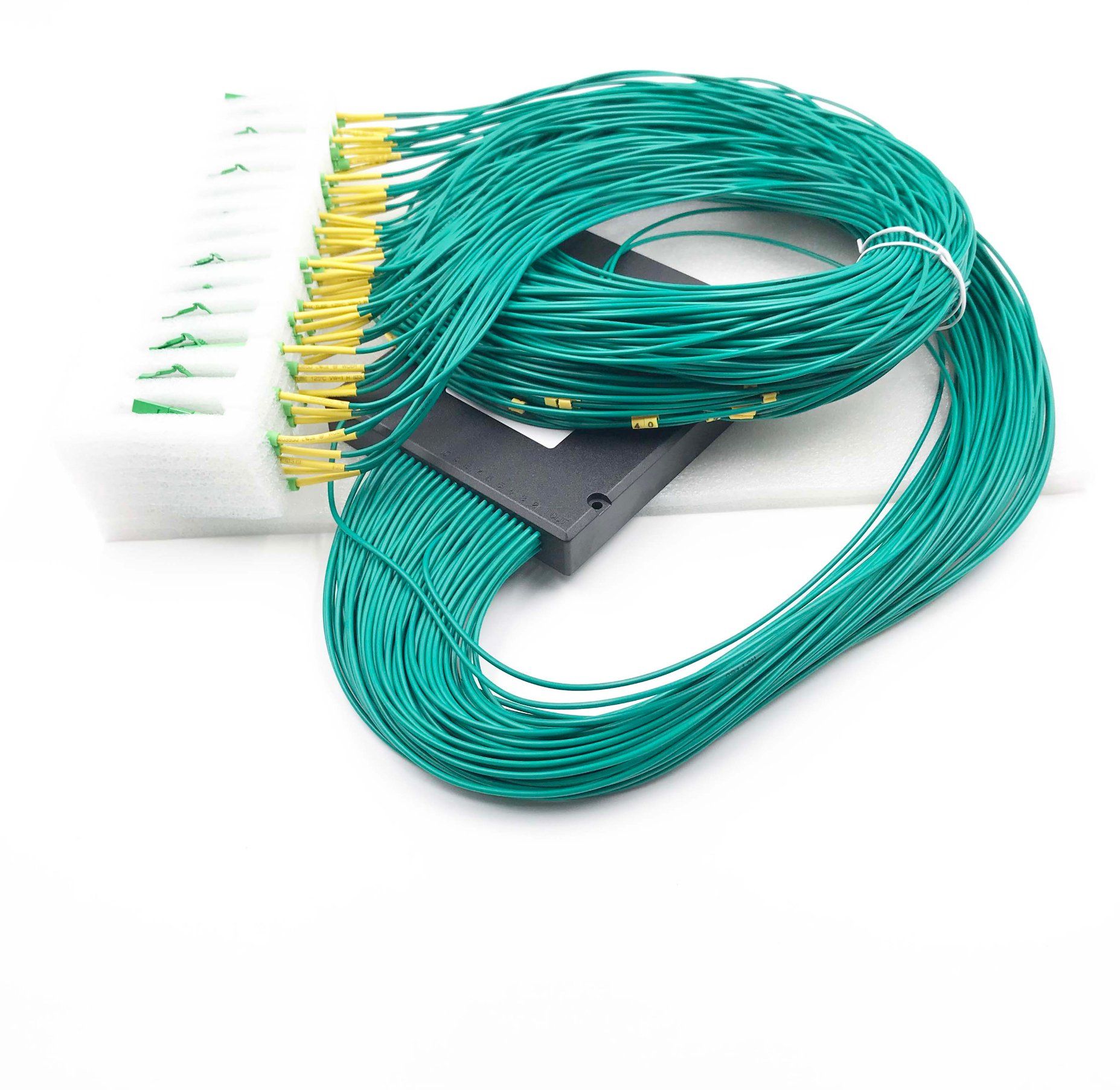

PLC Spliiter 1X64 Plastic Box for Local Area Network

PLC Splitter is Based on the Planar Waveguide Technology. It Provides a Low Cost Power Distribution Solution with Small
Form Factor and High Reliability.

Features:
Low Insertion loss
Low PDL
High Return Loss
Uniform Power Splitting
Compact Design
Wide Operating Wavelength
Wide Operating Temperature
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209

Applications:
FTTx (FTTB, FTTH, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)
CATV Systems
Test Equipments

Specifications:

Parameter		Value
Product Type		1×2/2x2	1×4/2x4	1×8/2x8	1×16/2x16	1×32/2x32	1×64/2x64	1×128/2x128
Wavelength(nm)		1260~1650
I.L(dB)	Typ.	3.6/4.2	7.1/7.2	10.4/10.6	13.6/13.8	17.2/17.5	20.1/20.5	25.0/25.2
	Max.	4.3/4.5	7.4/7.6	10.7/11.0	14.0/14.8	18.0/18.0	21.5/21.5	25.8/25.8
Uniformity(Max.)(dB)		0.5/0.8	0.8/1.0	1.0/1.2	1.4/1.5	1.6/1.8	2.0/2.5	2.6/3.0
PDL(Max.)(dB)		0.2/0.2	0.3/0.3	0.3/0.3	0.3/0.3	0.3/03	0.5/0.5	0.8/1.0
TDL(Max.)(dB)		0.5
R.L(dB)		≥55(APC)/≥55(UPC)
Directivity(dB)		≥55
Operating & Storage Temperature		-40~+85
Note: All the data above does not include connectors. UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB.

----------------------------------------------------FAQ---------------------------------------------------

----------------------------------------------------FAQ---------------------------------------------------

Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty according to different products.

Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.

OPELINK Technology is a high-tech enterprise with a focus on the design and the production of optical communication and accessories. We are among the industry leaders here in China and we own that to our highly skilled and experienced production staff and engineers. We manufacture a complete selection of premium quality products including fiber optic splitters, optical WDM, fiber optic circulator and many other active optical components.

Every stage PF production in our workshop is carefully controlled, from raw material selection to assembly, packaging and transport. We do this to guarantee quality and ensure that all of our customers are satisfied with their delivery.

In addition to our products sold in China, we also do business in France, the United States, Brazil, Russia, and many other countries. So far we have cooperated with Ericsson (Spain), Vodafone (Hungary), etc.

Moreover, OPELINK employs a professional foreign team in which most of members have more than 5 years experience in optical communication equipment.
