Fiber Optic Pre-Connectorized Multiple Cable Assemblies
| Price: |
US $ 7-30/Meter |
| Min Order: |
1/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
01897 |
| Fibre Grade: |
OS1/OS2, |
| Cable Specification: |
Tight buffer 4, 8, 12 |
| Connectors: |
IEC 61755, LC |
| Packaging: |
100 Coil in heavy duty polymer bag |
| Operating Temperature: |
-20 ~ +60 |
| Cable Color: |
Yellow |
| Attenuation Coefficient: |
1.5 Max (1300nm) |
| Fiber Count: |
12 |
| Length: |
100 mtrs |
| Application: |
Probe |
| Type: |
Single-mode Fiber |
| Connection Structure: |
LC |
| Certification: |
CCC |
Product Description

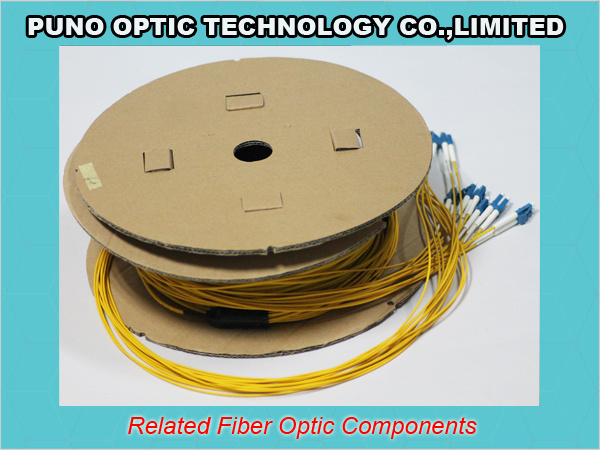

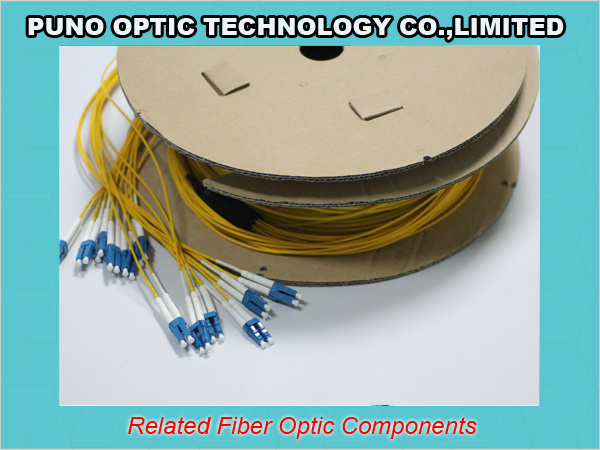

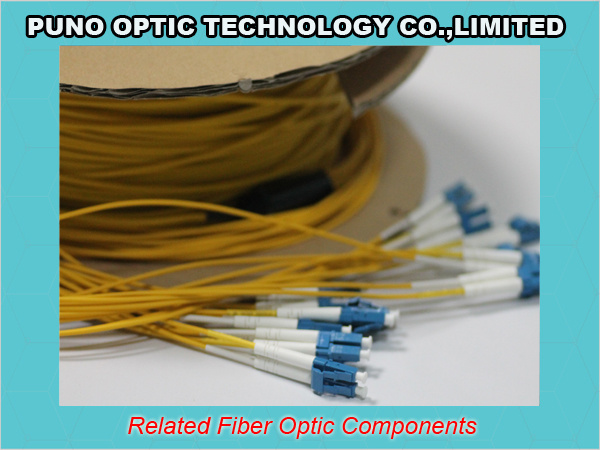

Fiber Optic Pre-Connectorized Multiple Cable Assemblies
Item Overviews
This cable is factory made, quality controlled fibre optic assembly is specified for short internal optical
links. The 900 μ m tight buffer presentation lends itself to installation within a patch panel, wall box or
Optical Distribution Frame (ODF). Crush resistant protective tubing assures secure transportation and
installation. The high strength pulling element allows fast, safe and effective pulling. The overall assembly
and packing are light and compact, reducing transport cost and storage space. Installation waste is also
reduced. A unique link loss certificate accompanies all multifiber assemblies.
Feature
√ Available in OM1, OM2, OM3, OM4 (ISO/IEC) and G.652D(OS1/OS2), G657A1 fibre types;

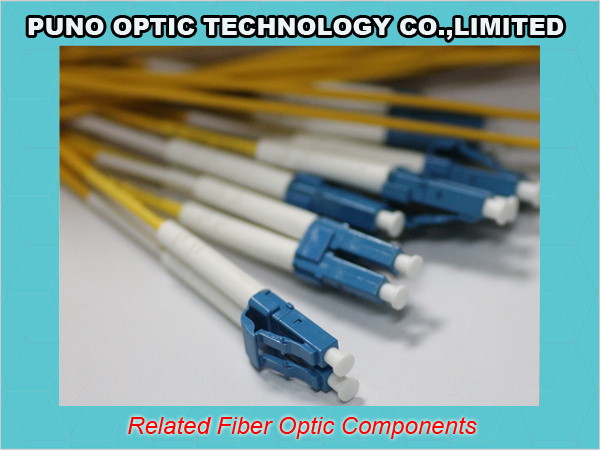

√ Available with SC, LC, FC, ST, and E2000 connector types;
√ 2 - 24 core tight buffer cable with standard connectivity;
√ Fast installation plug and play system;
√ No splicing or connector termination required.
Benefits
√ Robust crush resistant protection tube;
√ High tensile strength pulling element;
√ Economical, light and compact assembly;
√ Low waste packaging;
√ User friendly link loss test certificate;
√ Installation guide supplied.
Applications
√ Internal horizontal and backbone cabling;
√ Ideal for data centre use.
Standards Compliance
√ TIA/EIA-568-C.3 and ISO/IEC 11801;
√ ISO/IEC 60793 and ISO/IEC 60794;
√ ISO/IEC 61753, IEC 61754 and IEC 61755;
√ ISO/IEC 60332-1, IEC 61034-1/2 and IEC 61754-1/2;
√ Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC.
Technical Specification | Specification | Value |
| Fibre Grade | OS1/OS2, G.657A1, OM1, OM2, OM3, OM4 (ISO/IEC) |
| Cable Specification | Tight buffer 4, 8, 12 and 24 cores (ISO/IEC 60794)
Max OD 24 cores 6.5 ± 0.2 |
| Connectors | IEC 61753, IEC 61754, IEC 61755 |
| Pulling Element | No pulling element: length < 20mtr A side pulling element: length ≥ 20mtr |
| Packaging | Length ≤ 100 Coil in heavy duty polymer bag
Length > 100 Drum |
| Operating Temperature | -20 ~ +60°C |
| Storage Temperature | -40 ~ +70°C |
| Cable Color | Yellow, Black, Aqua or customized |
| Application | Indoor / Outdoor |
| FibreType (ISO/IEC 11801) | OS1/OS2 | OM1 | OM2 | OM3 | OM4 |
Attenuation Coefficient
[dB/km] | ≤ 0.38 Max (1310nm)
≤ 0.25 Max (1550nm)
≤ 0.34 Typ (1310nm)
≤ 0.19 typ (1550nm) | ≤ 3.5 Max (850nm)
≤ 1.5 Max (1300nm)
≤ 2.9 Typ (850nm)
≤ 1.2 typ (1300nm) | ≤ 3.5 Max (850nm)
≤ 1.5 Max (1300nm)
≤ 2.7 Typ (850nm)
≤ 0.9 typ (1300nm) |
Minimum Bandwidth: Overfilled
Launch [Mhz-km] | NA | ≥ 200 (850nm)
≥ 500 (1300nm | ≥ 500 (850nm)
≥ 500 (1300nm) | ≥ 1500 (850nm)
≥ 500 (1300nm) | ≥ 3500 (850nm)
≥ 500 (1300nm |
Minimum Bandwidth: Laser Effective
Modal Bandwidth [Mhz-km] |
NA |
NA |
NA |
≥ 2000
(850nm |
≥ 4700
(850nm) |
