Fiber Optic Rack Mount PLC Splitter Patch Panel Singlemode SC/LC/ST/FC
| Price: |
US $ 1-30/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Application: |
Fiber Splitter |
| Type: |
Single-mode Fiber |
| Certification: |
CE |
| Connection Structure: |
Sc/LC/St/FC |
| Brand: |
Fiberlink of OEM |
Product Description

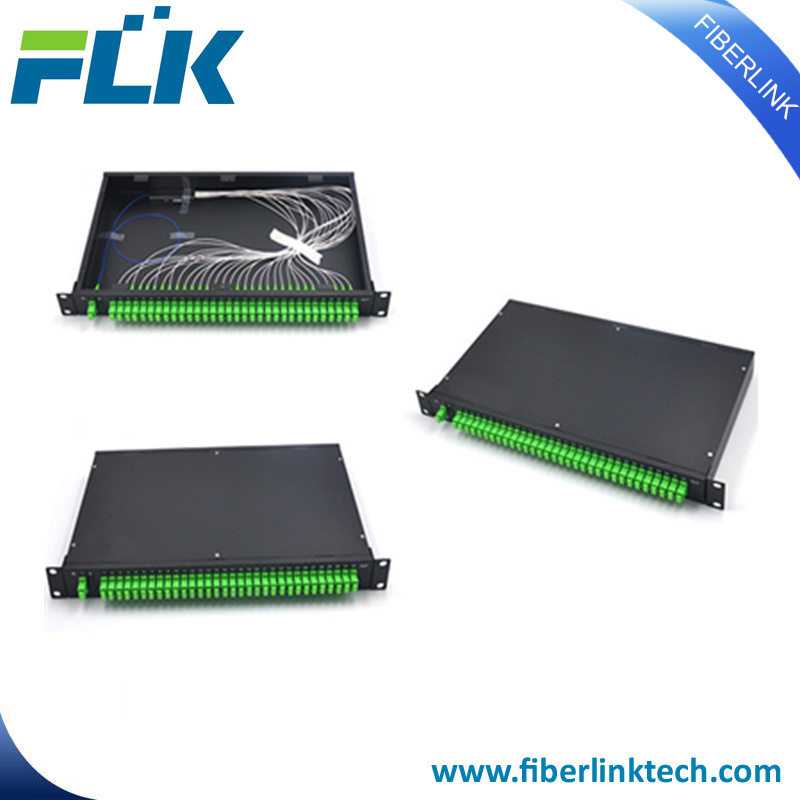

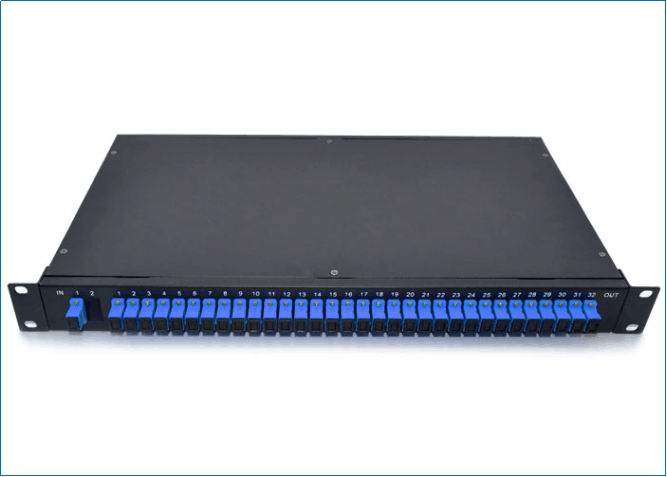

Fiber Optic Rack Mount PLC Splitter Patch Panel is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Fiberlink provides whole series of 1xN PLC Splitter and 2xN PLC Splitter products that are tailored for specific applications. All Rack Mount Splitters meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
Features1) Low Insertion loss
2) Low PDL
3) Compact Design
4) Good channel-to-channel uniformity
5) Wide Operating Wavelength: From 1260nm to 1650nm
6) Wide Operating Temperature: From -40ºC to 85ºC
7) High Reliability and Stability Applications1) Can be used for FTTX Systems
2) Passive Optical Networks (PON)
3) CATV TV Networks (CATV)
4) Optical Signal Distribution Compliance1) Telcordia GR-1209-CORE-2001
2) Telcordia GR-1221-CORE-1999
3) YD/T1117-2001 1xN PLC Splitter Specifications| Port Configuration | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
| Fiber Type | SMF28-e or customer specified |
| Operating Wavelength (nm) | 1260~1650 |
| Insertion Loss (dB) | Typical | 3.7 | 6.8 | 10.0 | 13.0 | 16.0 | 19.5 |
| Max | 4.0 | 7.2 | 10.5 | 13.5 | 16.9 | 21.0 |
| Loss Uniformity(dB) | Max | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
| Return Loss (dB) | Min | 50 | 50 | 50 | 50 | 50 | 50 |
| Polarization Dependent Loss(dB) | Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
| Directivity (dB) | Min | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | Max | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.8 |
Temperature Stability
(-40~85 ºC)(dB) | Max | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1.0 |
| Operating Temperature (ºC) | | -40~85 |
| Storage Temperature (ºC) | | -40~85 |
| Package Size (mm) | | 19" 1U 2U Rack-Mount Box, LGX Box, ODF Box |
Note: All the data above does not include connectors.
Add an additional 0.2dB loss per connector.
2xN PLC Splitter Specifications| Port Configuration | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 |
| Fiber Type | SMF28-e or customer specified |
| Operating Wavelength (nm) | 1260~1650 |
| Insertion Loss (dB) | Typical | 3.8 | 7.4 | 10.8 | 14.2 | 17.0 | 21.0 |
| Max | 4.2 | 7.8 | 11.2 | 14.6 | 17.5 | 21.5 |
| Loss Uniformity(dB) | Max | 1.0 | 1.4 | 1.5 | 2.0 | 2.5 | 2.5 |
| Return Loss (dB) | Min | 50 | 50 | 50 | 50 | 50 | 50 |
| Polarization Dependent Loss(dB) | Max | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.5 |
| Directivity (dB) | Min | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | Max | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1.0 |
Temperature Stability
(-40~85 ºC)(dB) | Max | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1.0 |
| Operating Temperature (ºC) | | -40~85 |
| Storage Temperature (ºC) | | -40~85 |
| Package Size (mm) | | 19" 1U 2U Rack-Mount Box, LGX Box, ODF Box |
Note: All the data above does not include connectors.
Add an additional 0.2dB loss per connector.
Ordering Information| FPB | XXX | XX | X | X |
| Port Configuration | Box Type | Input Connector | Output Connector |
| F=Fiberlink | 102=1x2 | LX= LGX Box, metal | 0=None | 0=None |
| P=PLC Splitter | 104=1x4 | 19= 19" 1U Rack mount Box | 1=FC/UPC | 1=FC/UPC |
| B=Rack Mount | 108=1x8, | TP= ODF Box | 2-FC/APC | 2-FC/APC |
| | 116=1x16 | WM= Wall mount Box | 3=SC/UPC | 3=SC/UPC |
| | 132=1x32 | XX= customized | 4=SC/APC | 4=SC/APC |
| | 164=1x64 | | 5=LC/UPC | 5=LC/UPC |
| | 202=2x2 | | 6=LC/APC | 6=LC/APC |
| | 204=2x4 | | X=customized | X=customized |
| | 208=2x8, | | | |
| | 216=2x16 | | | |
| | 232=2x32 | | | |
| | 264=2x64 | | | |

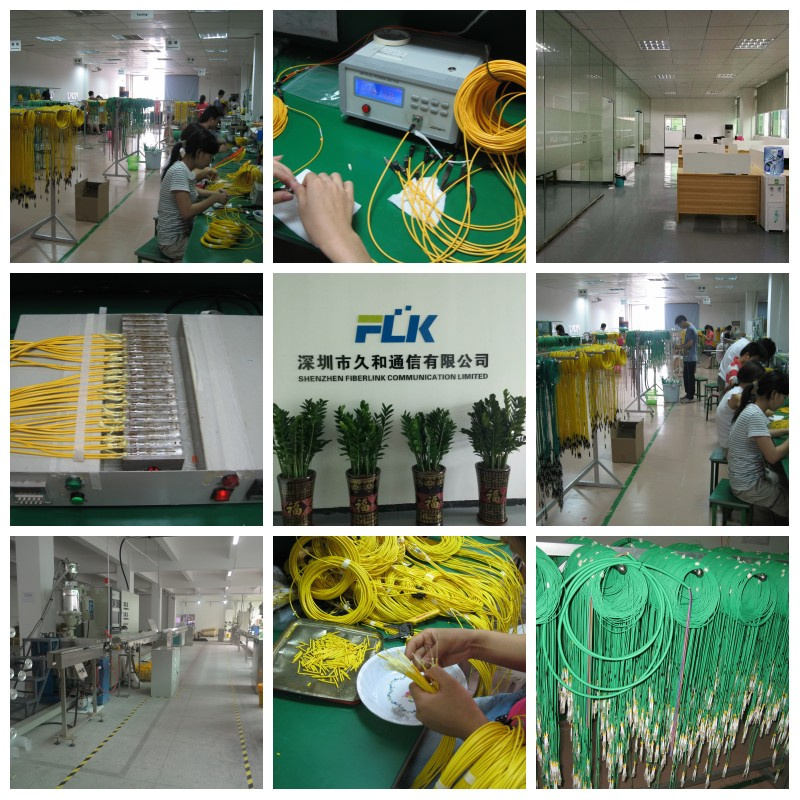

SHENZHEN FIBERLINK COMMUNICATION LIMITED has been dedicated to full range of fiber optic passive components and accessories for about 10 years, our products include fiber optic cable, patch cord, connector, adapter, PLC Splitter, FBT coupler, attenuator, distribution box, terminal box, patch panel, splice closure, test tools, etc.
Service: 1.Professional manufacturer, 100% tested.
2.Customers solutions in days, not weeks.
3.Warmly services with careful attentions.
4.Can provide your specific inquiry within 24 hours.
5.Save much costs, bring more benefit for customer to expand business.
6.We have been 9 years experience in this field. We are the prefessional supplier that you can trust.FAQ: Q1:How can you guarantee the delivery time?
A:1. To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich experience.
2. We can regulate the penalty clause in the contract for the late delay.
Q2:What's your best price?
A:Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.
Q3:What's your MOQ?
A:Low MOQ, 1pc for sample checking is available
Q4:Can I print our own logo on the product?
A:Yes, Please send your logo to us.
Q5:Can you provide OEM/ODM service?
A:Yes, we can. Please tell us the details of your requirements
Q6:How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q7:Why choose us to cooperate?
1. We have first-class production line and strict quality management system.
2. We have professional procedure system and big production capacity to guarantee fast deliver and on time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate the new products based on our rich experience .
5. We have professional team to provide comprehensive one-stop service for you.
Our company supplies high-performance fiber optic communication system products with high quality and favorable price. Our main products are Fiber optic cable, Fiber patch cord, Fiber adapter, Fiber attenuator, FBT Coupler, PLC splitter, Fiber patch panel, Fiber termination box, Fiber distribution box, Fiber optic splice closure, MPO system and FTTH solution products, etc. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
Interconnect Products Division: Develops and manufactures fiber optic components for a diverse range of applications. The division's products include Fiber optic connectors, patch cords andadapters, attenuators, couplers, PLC splitters, circulators, and isolators.
Solution Products Division: Known for providing Fiber Optic Communication Solution in the world, the Solution Products division focused on fiber accessories and systems, such as Fiber patch panel, Fiber termination box, Fiber distribution enclosure, Fiber optic splice closure, MPO system andFTTH solution products, etc.
OEM Products Division: OEM Products division provides OEM services to our clients by not only complete customers' requirements but also give active suggestions to improve the products' performance and quality. This division's main mission is to help customers stay competitive by constant innovation service.
