| Prod Model: |
SC Adapter with Auto-Shutter |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Transmission Medium: |
Singlemode and Multimode |
| Ferrule Endface: |
Upc/APC |
| Connector Type: |
Sc Adapter with Auto-Shutter |
| Brand: |
Fiberlink or OEM |
Product Description

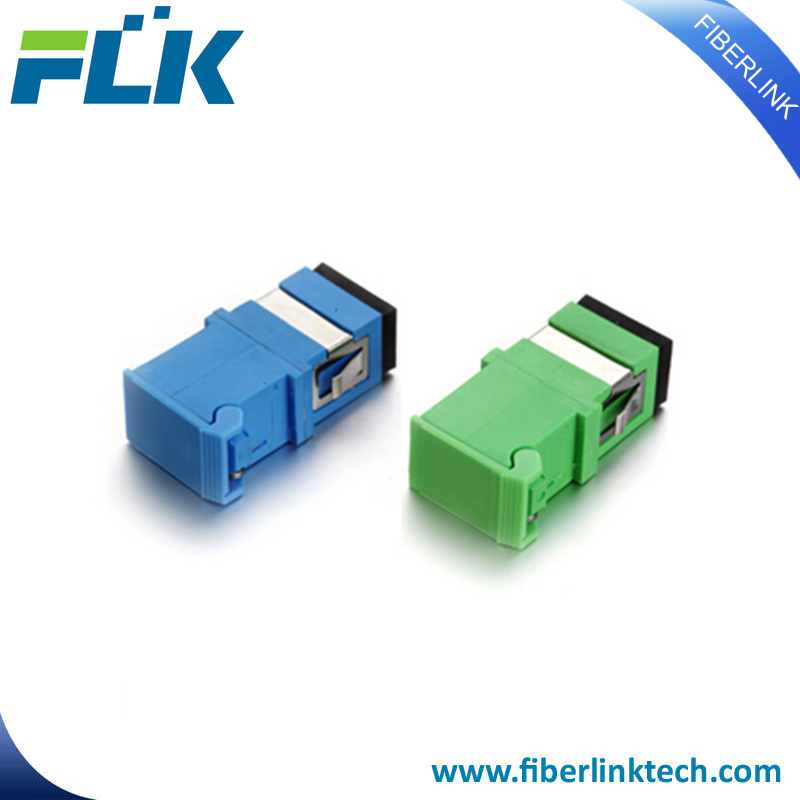

SC Fiber Optic Auto Shutter Adapters are specially designed to suit FTTH applications. The auto shutter is designed to prevent ingress of dust and also to prevent accidental exposure to laser. Auto Shuttered adapter utilizes the conventional split ceramic sleeve method to align fibers and thus ensures the same precision and optical performance as the normal adapter. all products are designed and controlled under IEC standard, meet the requirement of Telcordia GR-326 and TIA/EIA as well.
Applications
Telecommunication network
CATV system
Local Area Network
Active/Passive device
FTTH and FTTX
Competitive Advantages
Telcordia GR-326, IEC, TIA/EIA Standard compliant
100% Optical performance inspection and end-face geometric
Low Insertion Loss.
RoHS Compliance
Customized design and production.
Parts & Material
| Parts | Material | Remarks |
| Sleeve | Zirconia, PB | |
| Housing | PBT | Flammability UL94 V-0 |
| Dust cap | ABS | Flammability UL94 V-0 |
| Shutter | ABS | Flammability UL94 V-0 |
| Metal Cover | Stainless Steel | |
Optical Performance| Item | Premium Grade | Standard Grade |
| Insertion Loss | ≤0.1dB | ≤0.2dB |
| Durability | 1000 times | 1000 times |
Environmental and Mechanism| Properties | Test condition | Conformance | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
| Temperature Cycling | -40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | | ≤0.2dB |
| Storage Temperature | -40ºC to +85ºC | | ≤0.2dB |
