Takfly Communications Co., Ltd. >> Fiber Optic Sc Bare Fiber Adapter

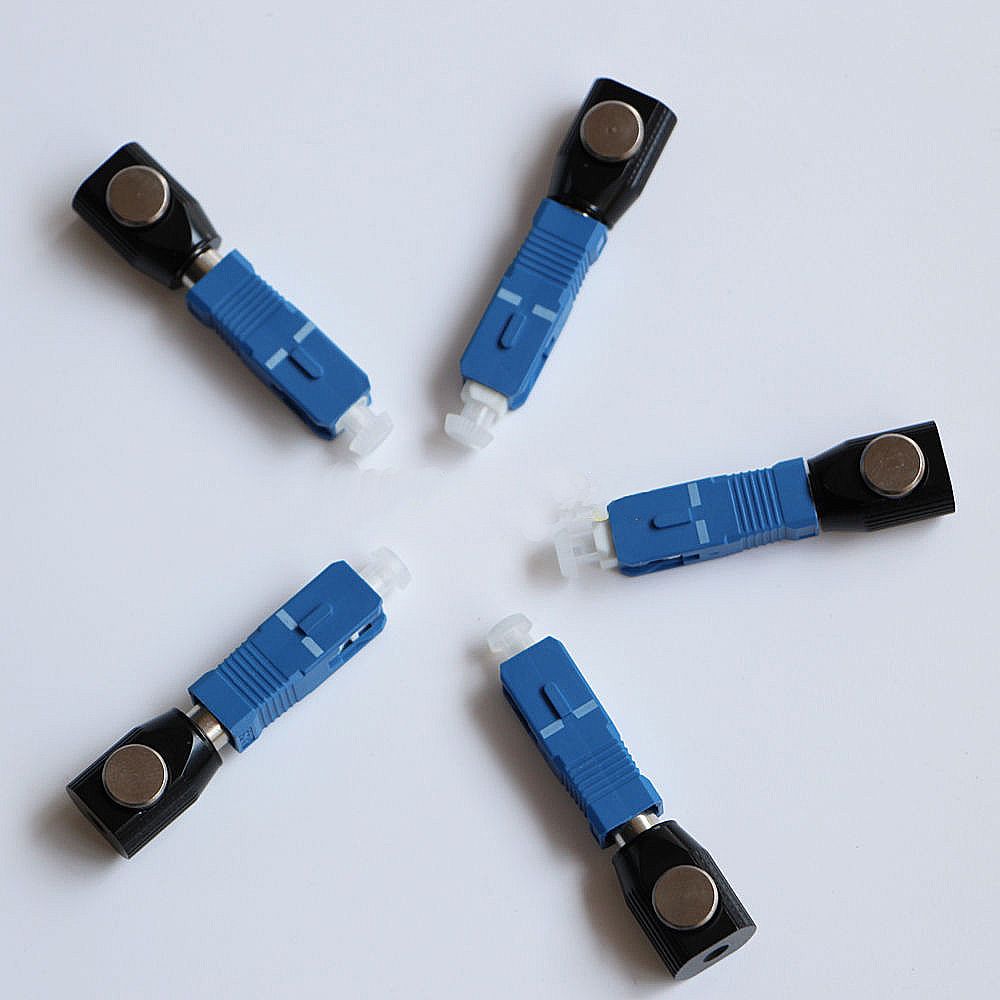

Fiber Optic Sc Bare Fiber Adapter

Fiber Optic Sc Bare Fiber Adapter
Price: US $ 0.5/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: Bare fiber Adapter
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name: Df
Insertion Loss (Typical): ≤0.5dB
Return Loss: ≥45dB
Exchangeability: ≤0.2dB
Repeatability: ≤0.2dB
Durability: >1000
Color: Blue
Operating Temperature: -40~75
Storage Temperature: -45~85
Delivery Time: 3-5working Days After Payment Recieved
Transmission Medium: Single-Mode
Structure: SC
Number Of Cores: Single-Core
Ferrule Endface: PC(',UPC)

Product Description

Fiber Connector/Optical Coupler/Fiber Optic Sc Bare Adapter

Details:
An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
Bare fiber optic adapters are used as the medium to link the bare optical fiber to fiber optic equipment.

Features:

Fits accordingly FC, SC, ST adapters
Lightest weight and very compact size
Specially designed mechanism minimizes insertion loss
Highest repeatability
User friendly -- easy to insert, remove and reload fiber
Application:

WANs, LANs, CATV
Testing equipment
Communication system
Telecommunication networks
Temporarily connect bare fiber

ParameterUnitBare fiber adapter
Insertion Loss (Typical)dB≤0.5
Return LossdB≥45
ExchangeabilitydB≤0.2
RepeatabilitydB≤0.2
DurabilityTimes>1000
Operating TemperatureºC-40~75
Storage TemperatureºC-45~85
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
