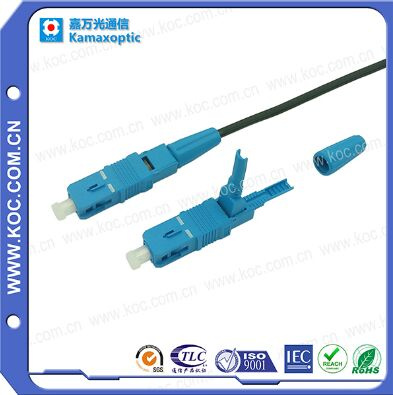

Fiber Optic Sc Sm Easyconn Fic Connector
| Price: |
US $ 0.7-1/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
SC(PC) |
| Boot Type: |
Round, Flat |
| Boot Color: |
Blue,Green,Aqua,Red,Magenta,Beige |
| Adapter Type: |
Sc |
| Cable Color: |
Aqua,Green, Beige,Yellow, Magenta |
| Housing Color: |
Aqua,Green, Beige |
| Boot Diamter: |
3.0mm, 0.9mm |
| Certificate: |
Tlc,ISO9001,SGS,Reach,RoHS,IEC |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
Product Description
Competitive cost of fast install connector from KOC China.Applications:FTTX
Ethernet backbone temporary or permanent connection
Outdoor optical fiber temporary connection
Military optical fiber network connection Features:Low insertion loss
Low return loss
Wide working temperature range
Advantages: Ferrule hole V-groove alignment ensure the fiber core alignment error <0.5um. This will reduce the connect loss.
The V-groove has the advantage than V-groove when different fiber diameter are used. This will reduce core offset between customer and stuff fiber.
Outdoor optical fiber temporary connection
Flexible fiber connect, high pulling resistance. Specification:| Item | Parameters | Remark |
| Insert Loss (IL) | Typical:0.20dB Max:0.5dB | 1310nm&1550nm |
| Return Loss (RL) | Typical:48dB Min:45dB | 1310nm&1550nm |
| Fiber | SM 9/125um G657A1 | |
| Installation time | <10S(excluding fiber dispose) | |
| Tensile Strength | >80N | Peak force of cable tension |
| Reassembly times | ≥5 times | |
| Operating Temperature | -40~+85ºC | |
| Connection cable | Drop cable, Φ2.0mm and Φ3.0mm cable | |

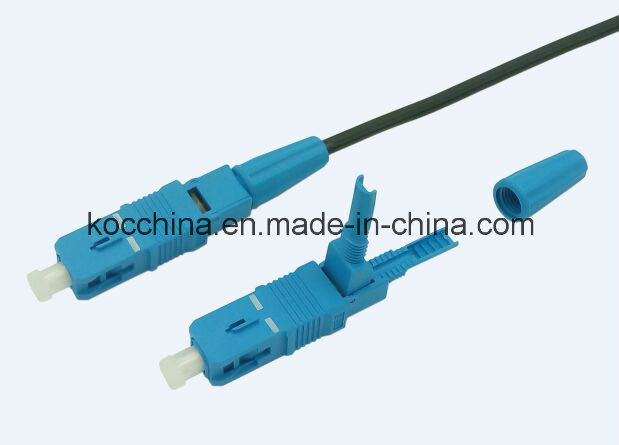

Pictures:
