| Prod Model: |
armored |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Armored: |
5.7mm |
| Dx: |
Sm |
| Mm: |
Om3 |
| Cable Diameter Szie: |
2.0mm, 3.0mm |
| Applicable Fiber: |
G657A, G652D, |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
Armored Cable |
Product Description

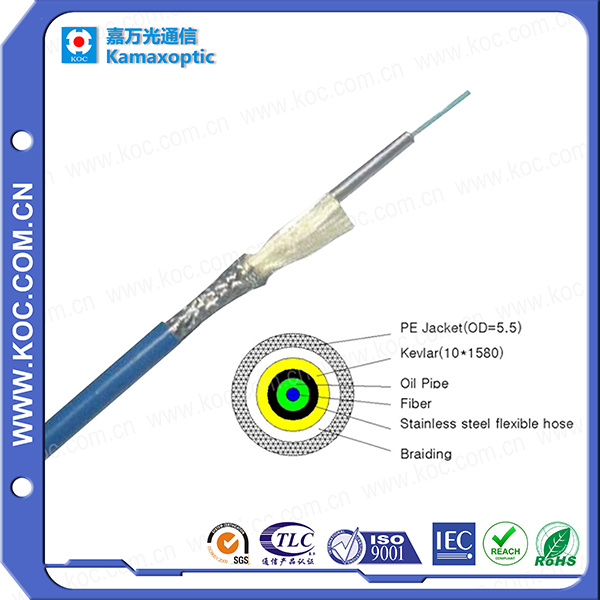

Simplex Armored Cable
Detailed information:
APPLICATIONS
Pigtails and patch-cord ideal for use in optical device, equipment Ideal for use in distribution frame;
Ideal for use in optical device and equipment.
Ideal for use in optical distribution frame.
FEATURES
High crushing resistant, mouse-biting proof.
Good mechanical property and environment property
Flame resistant performance
Soft, agile, convenient for connection
Satisfy various request of markets and customers
| Item | Units | Single Mode | Multimode |
Core/Mode
Diameter | μm | 9.2±0.4μm@1310nm
10.4±0.8μm@1550nm | 50±2.5μm | 62.5±2.5μm |
Cladding
Diameter | μm | 125±1μm | 125±1μm | 125±1μm |
| Max Attenuation | dB/Km | 0.5d/km@1310nm
0.4d/km@1550nm | 3.5d/km@850nm
1.5d/km@1300nm | 3.5d/km@850nm
1.5d/km@1300nm |
Operating
temperature | ºC | -40ºC----+85ºC |
| Outer Diameter | mm | 2.85±0.10mm |
| Net Weight | kg/km | 18 |
Allowable
Bending Radius | mm | 25 |
Allowable
Tensile | N | 200 |
| Crush Resistant | N/100mm | 3000 |
Shenzhen KOC Communication Co., Ltd. is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.
Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.
We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
NOTE;The price is for singlemode duplex armored indoor cable.
Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.
Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.
We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
About KOC
Located in Shenzhen, China, KamaxOptic Communication Co. Ltd., well-known as KOC, is specialized in fiber optic communication products and accessories. She offers precise customized solutions for various customers involved in telecommunication, broadcast, CATV and network industry worldwide.
Our quality is guaranteed by the scientific management with the assistances of professional personnel, advanced testing equipments and efficient ERP system under the strict guidance of ISO9001: 2000, from supplier evaluation to inbound material examination, from processing monitoring to permanent inspection, from packing to shipping. We do care for every detail!
To be dedicated to be a popular manufacturer with her quality products, satisfactory services and attention to details through the full commitment of each personnel to work as one team in an effort to exceed our customer expectations.
To operate the business in a transparent and honest manner, that our customers, our associates and our business partners are proud to play their part in our success.
Please visit us website for more information: http://www.koc.com.cn
