Fiber Optic Sm/mm Optical Connector for FTTH

Prod Model:	CATV
Gender:	Male
Application:	Power

Product Description

Product Description

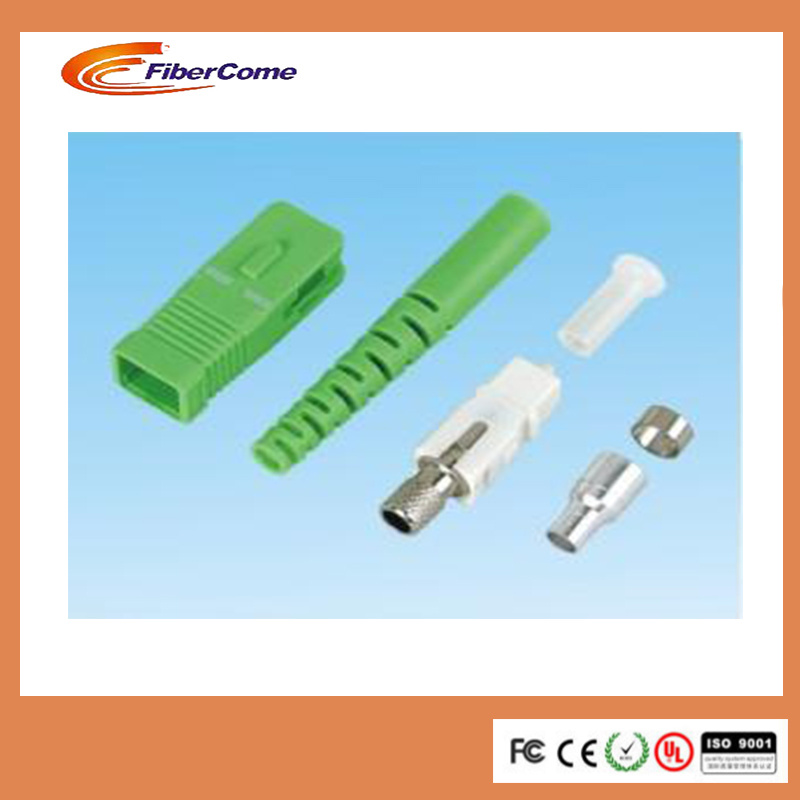

Single Mode Sc/Upc PLC Splitter Optical Connector for CATV FTTH1. Cat5e/Cat6/Cat7 Patch cable


1. Feature

v Low insertion loss and high return loss;

v Good repeatability & interchangeability;

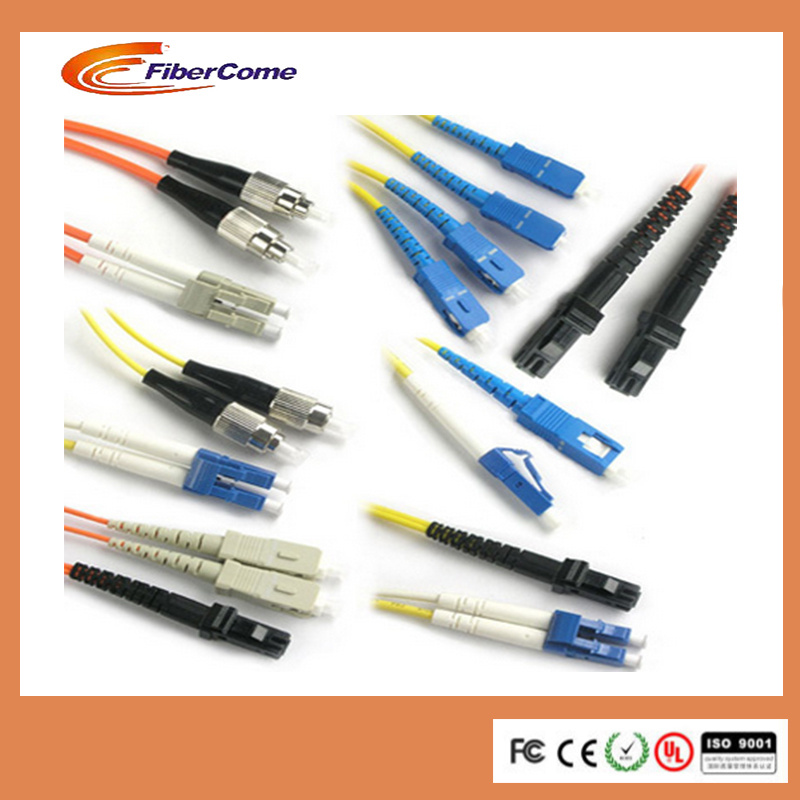

v PC, UPC, APC polishing; FC, SC, ST, LC, MU connector;

v Suitable for high-speed, high-capacity optical fiber transmission system;

v Provide single mode/ multimode patch cord and pigtails;

v Fiber diameter: Φ0.9mm, Φ2.0mm, Φ3.0mm;

v Length/Type: according to customers' demands.

Mechanical, Environmental & Material Data

Fiber Mode	Singlemode or Multimode
Fiber count	1
Connector Style	SC, FC, ST, LC, MU, E2000, DIN
Polish or Ferrule Interface Type	PC, UPC, APC
Cable Lengths	Custom Lengths
Jacket Material	LSZH
Outer Jacket Color	Black
Inner Jacket Color	White
Strength Member	Aramid Yarn
Outer Jacket Diameter(mm)	4.6 ±0.1
Inner Jacket Diameter(mm)	3.0 ±0.1
Crush(N/100mm)	1000
Maximum Tensile Load(Long term)	150N
Maximum Tensile Load(Short term)	400N
Storage Temperature(°C)	-20°C to 60°C
Installation Temperature(°C)	-5°C to 50°C
Operating Temperature(°C)	-20°C to 60°C

Optical Characteristics

Fiber Type	Max. Attenuation(dB/km)				Min.Overfill Launch Bandwidth (Mhz.km)		Min.Gigabit Ethernet Link Distance (m)
							Gigabit		10Gigabit
	850nm	1300nm	1310nm	1550nm	850nm	1300nm	850nm	1300nm	850nnm
OM1 62.5/125µm	≤2.7	≤0.6	-	-	≥500	≥600	275	550	-
OM2 50/125µm	≤2.3	≤0.6	-	-	≥500	≥500	750	600	150
OM3 50/125µm	≤2.3	≤0.6	-	-	≥1500	≥500	1000	600	300
OM4 50/125µm	≤2.3	≤0.6	-	-	≥3500	≥500	1100	600	550
G652D 9/125µm	-	-	≤0.30	≤0.18	-	-	-	-	-
G657A 9/125µm	-	-	≤0.35	≤0.21	-	-	-	-	-

optic cheap SC PC Sm Duplex Fiber Optical Pacth Cords












2. Application

Ø Optical fiber communications system;

Ø Optical fiber access networks;

Ø Optical fiber CATV;

Ø Optical fiber test equipments;

Ø Optical fiber data communication;

1.Technical parameters

No.	Item	Unit	Single Mode			Multi Mode
1	Insertion loss	dB	≤0.3			≤0.3
2	Return loss	dB	PC	UPC	APC	/
			≥45	≥50	≥55	≥45
3	Repeatability	dB	0.1
4	Working Times	Times	≥1000
5	Operating Temperature	ºC	-40~85
6	Optical Cable Diameter	mm	Ф0.9,Ф2.0,Ф3.0



2.3D Specification

Item	PC Polishing		APC Polishing
Ferrule Diameter(mm)	2.5	1.25	2.5	1.25
Radius of Curv(mm)	10~25	7~25	5~15
Fiber Height(um)	-100~50		±50
Apwex Offset(um)	±50		±50



Connector Type Code

Code	Connector	Code	Connector	Code	Connector	Code	Connector	Code	Connector	Code	Connector
FP	FC/PC	FA	FC/APC	LP	LC/PC	LA	LC/APC	MU	MU	DN	DIN
SP	SC/PC	SA	SC/APC	TP	ST/PC	TA	ST/APC	MT	MTRJ	E2	E2000

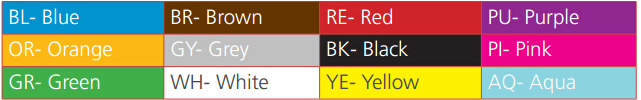

Color Code

Note:Yellow Jacket for SM, Orange Jacket for OM1~OM2, Aqua Jacket for OM3 and Purple Jacket for OM4.
(other colors may be available upon request).


For any question, pls feel free to contact us. Your inquiry is expected! Warmly welcom you to inquiry us.

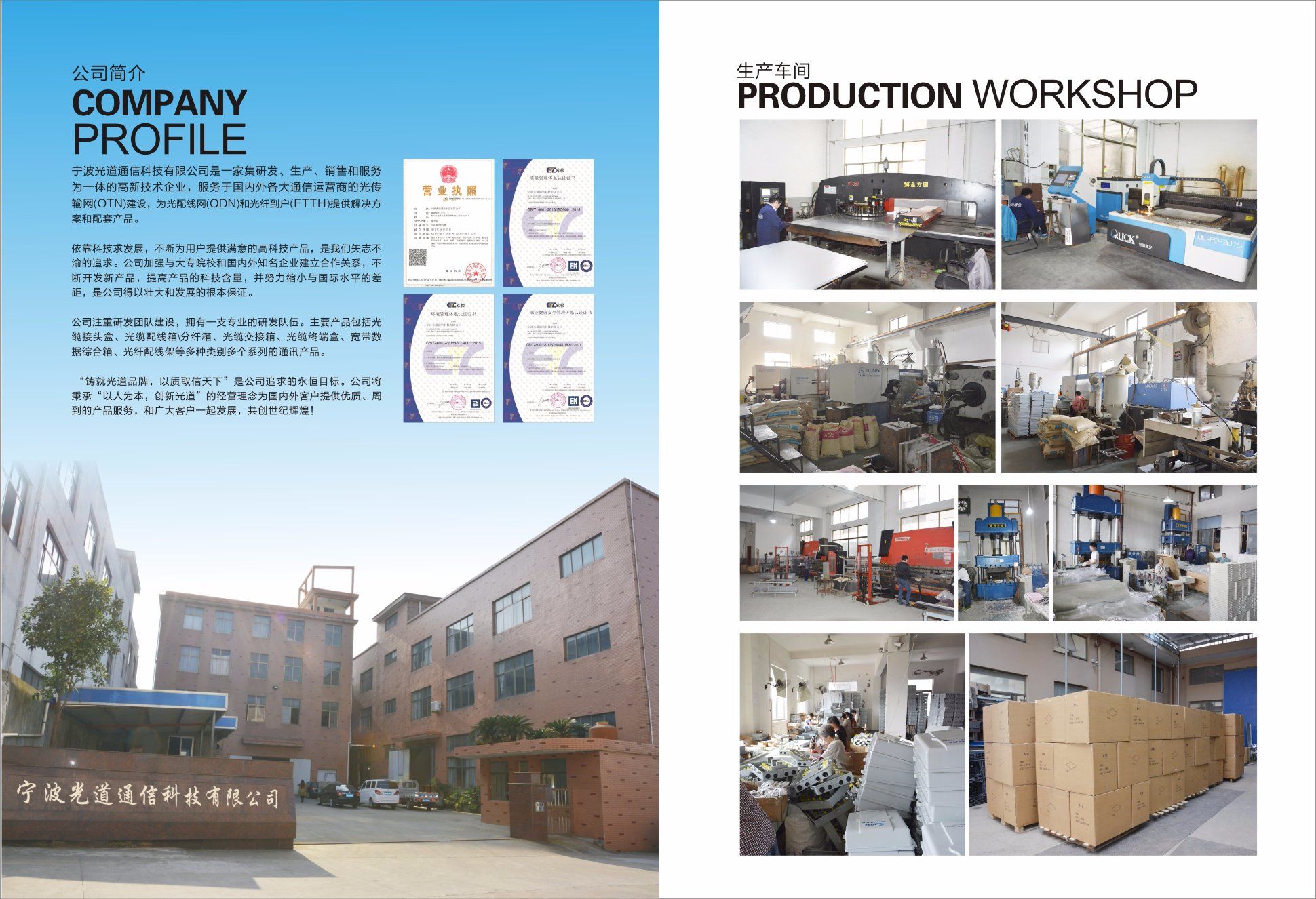

Company Show
