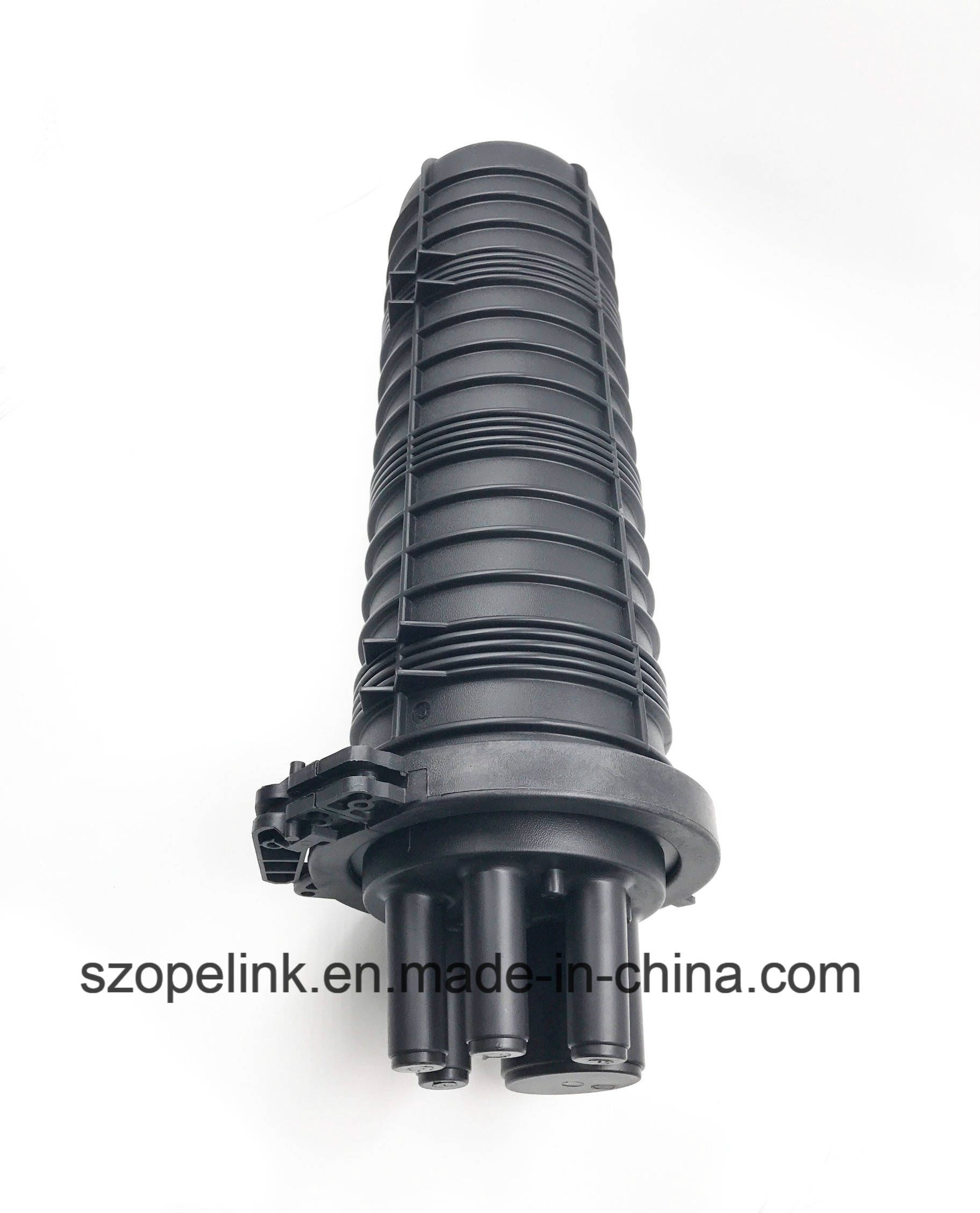

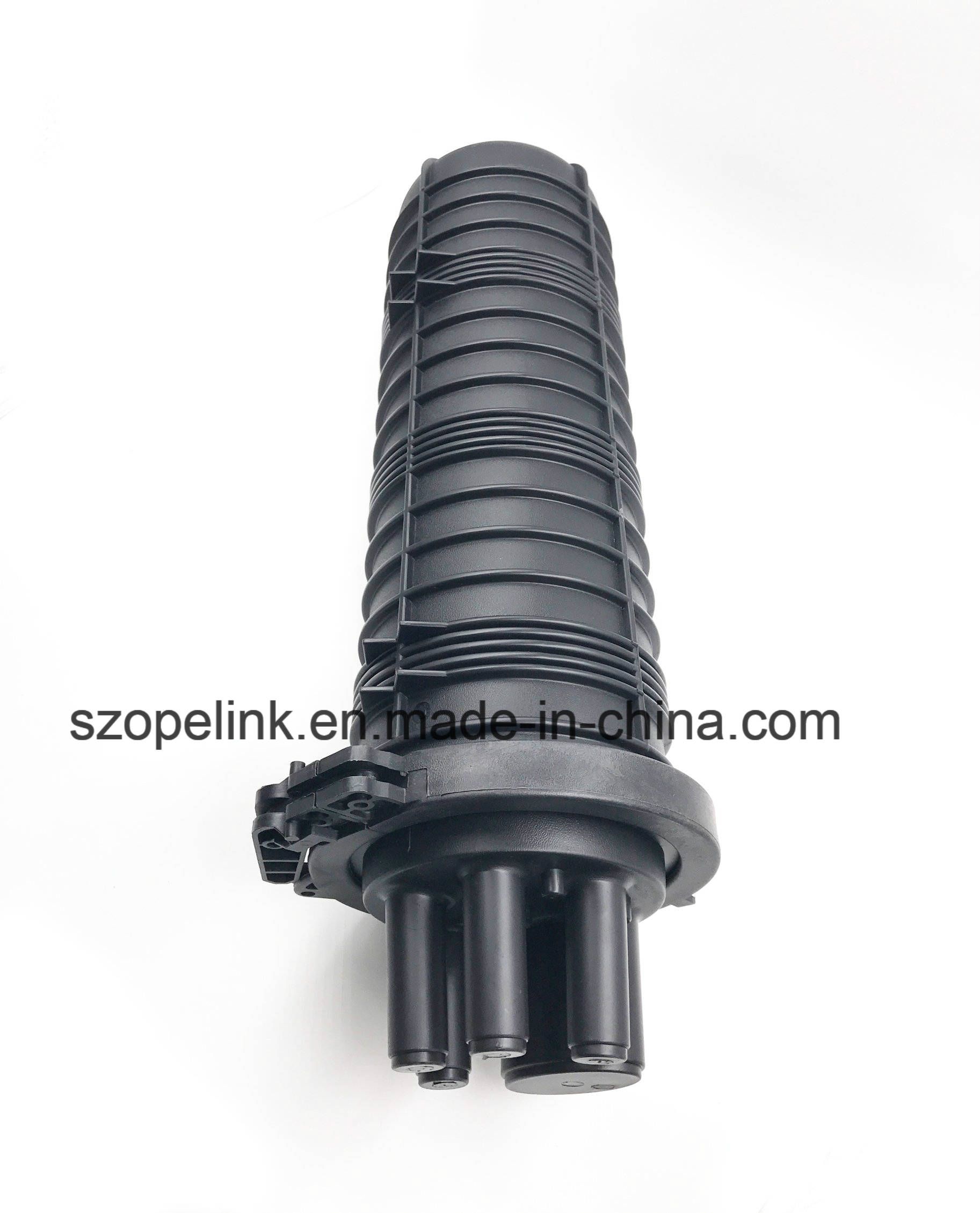

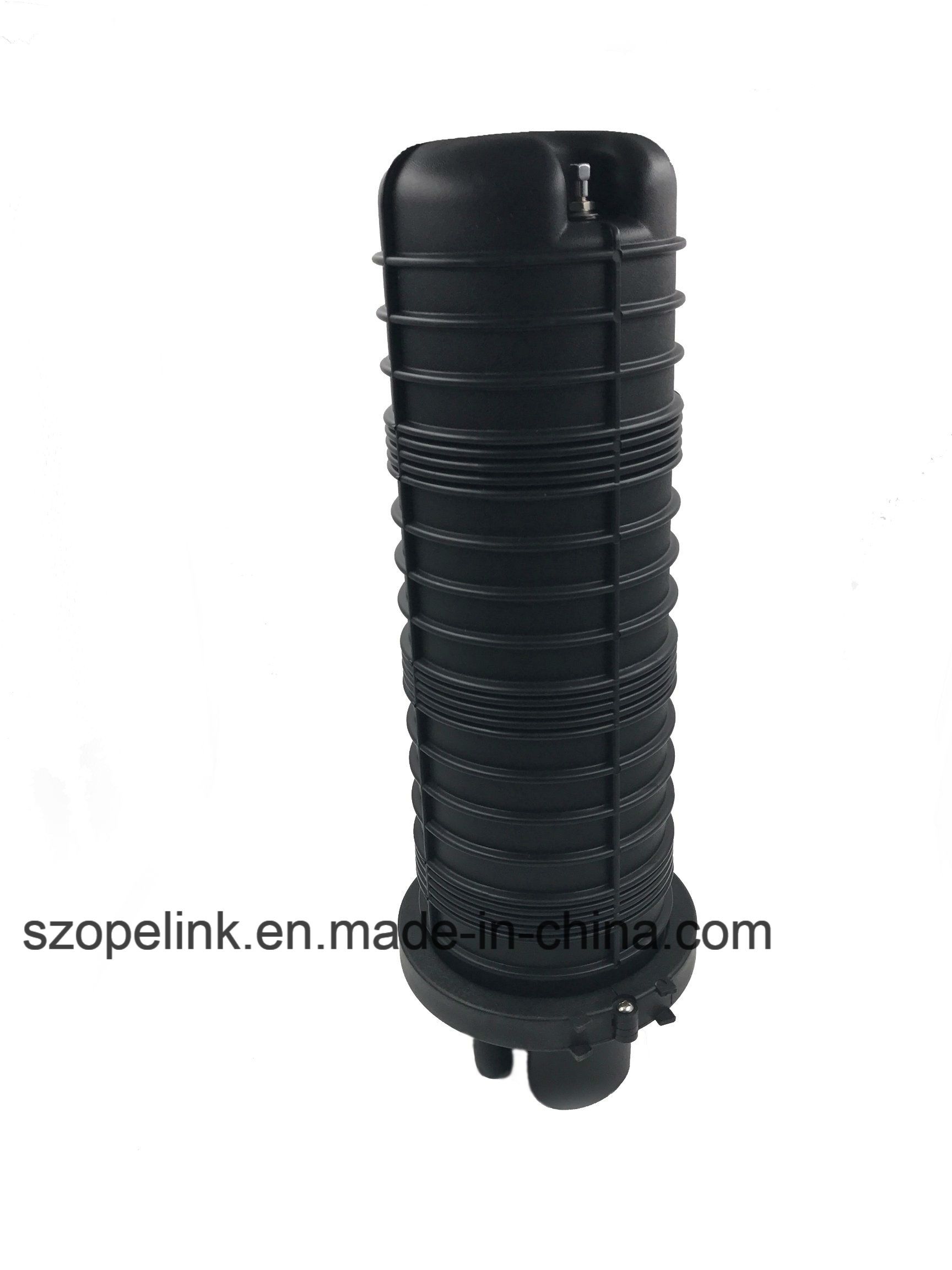

Fiber Optic Splice Dome Closure D004 48 Core FTTH Installation

Name: Fiber Optic Splice Dome Closure D004 48 Core FTTH Installation
Brand: all-electronics-online.com
SKU: 834418145
Availability: InStock
Rating: 4.9 (51 reviews)

Price:	US $ 23-30/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	D004 48 core
Weight:	3.0-3.6kg
Number Of Inlet/out Ports:	4
Diameter Of Fiber Cable:	8mm-36mm
Capacity:	Bunchy:24-96 (Cores), Ribbon: up to 288 (Cores)
Splice Tray:	24 Core or 12 Core
Package Dimension:	540mm*205mm
Pressure Testing Valve:	Available
Earthing Deriving Device:	Available
Application:	Medicine
Certification:	ISO9001
Type:	Hear Shrink Type
Core:	48
Brand:	Opelink or OEM
Sheath Material:	Pb Plastic

Product Description

Dome Closure D004

1. Scope of application
This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.

The scope of application is: aerial, underground, pipeline, hand-holes. The ambient temperature ranges from -40 to 65ºC.

2. Basic structure and configuration
2.1 Dimension and capacity

Outside dimension (Height x Diameter)	540mm×205mm
Weight (excluding outside box)	3000 g- 3600g
Number of inlet/out ports	4 pieces in general
Diameter of fiber cable	Φ8mm~Φ36mm
Capacity of FOSC	Bunchy:24-96 (cores), Ribbon: up to 288 (cores)

2.2 Main components

No.	Name of components	Quantity	Usage	Remarks

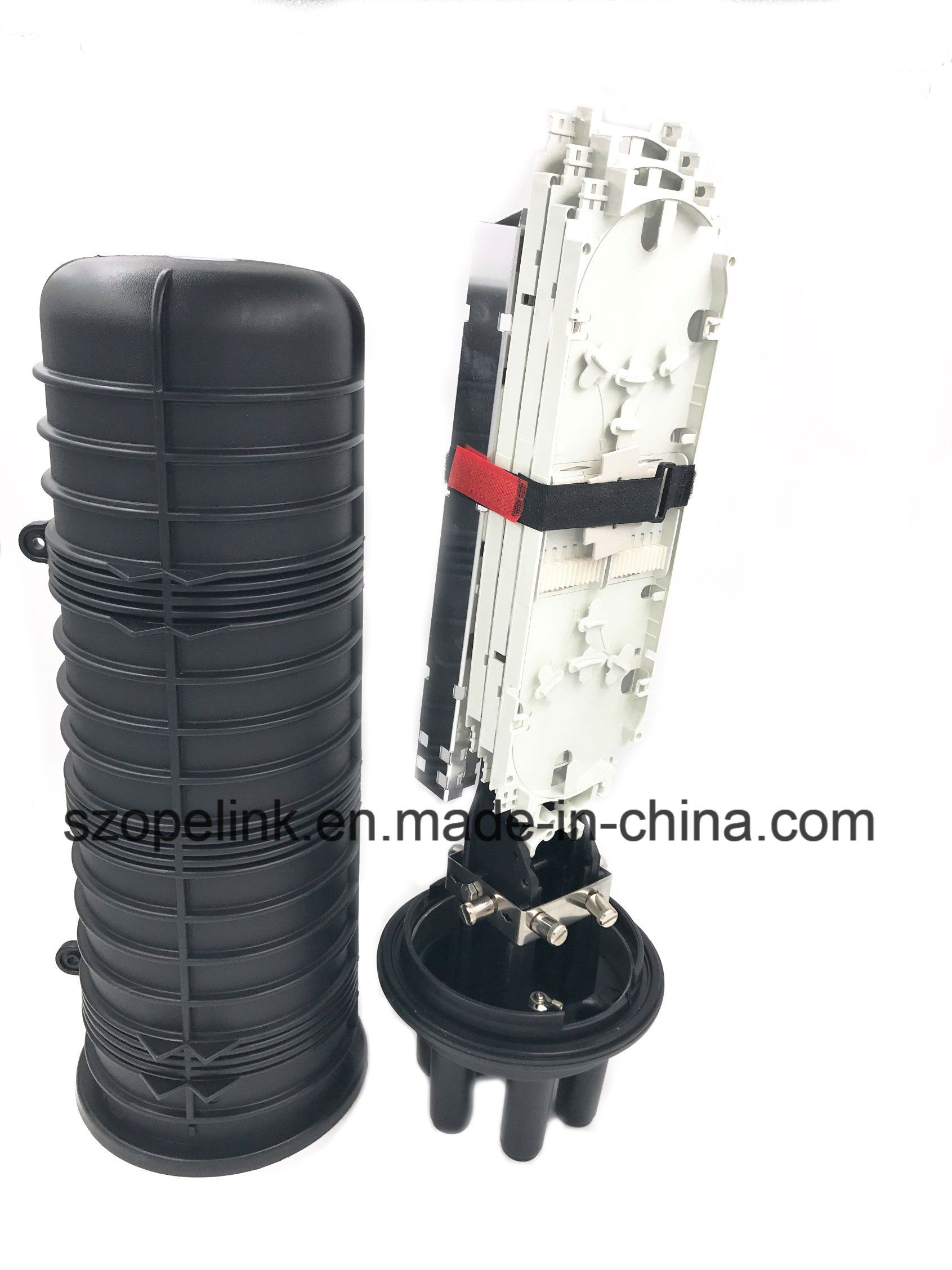

1	FOSC cover	1 piece	Protecting fiber cable splices in whole	Height x Diameter 450mm x 170mm

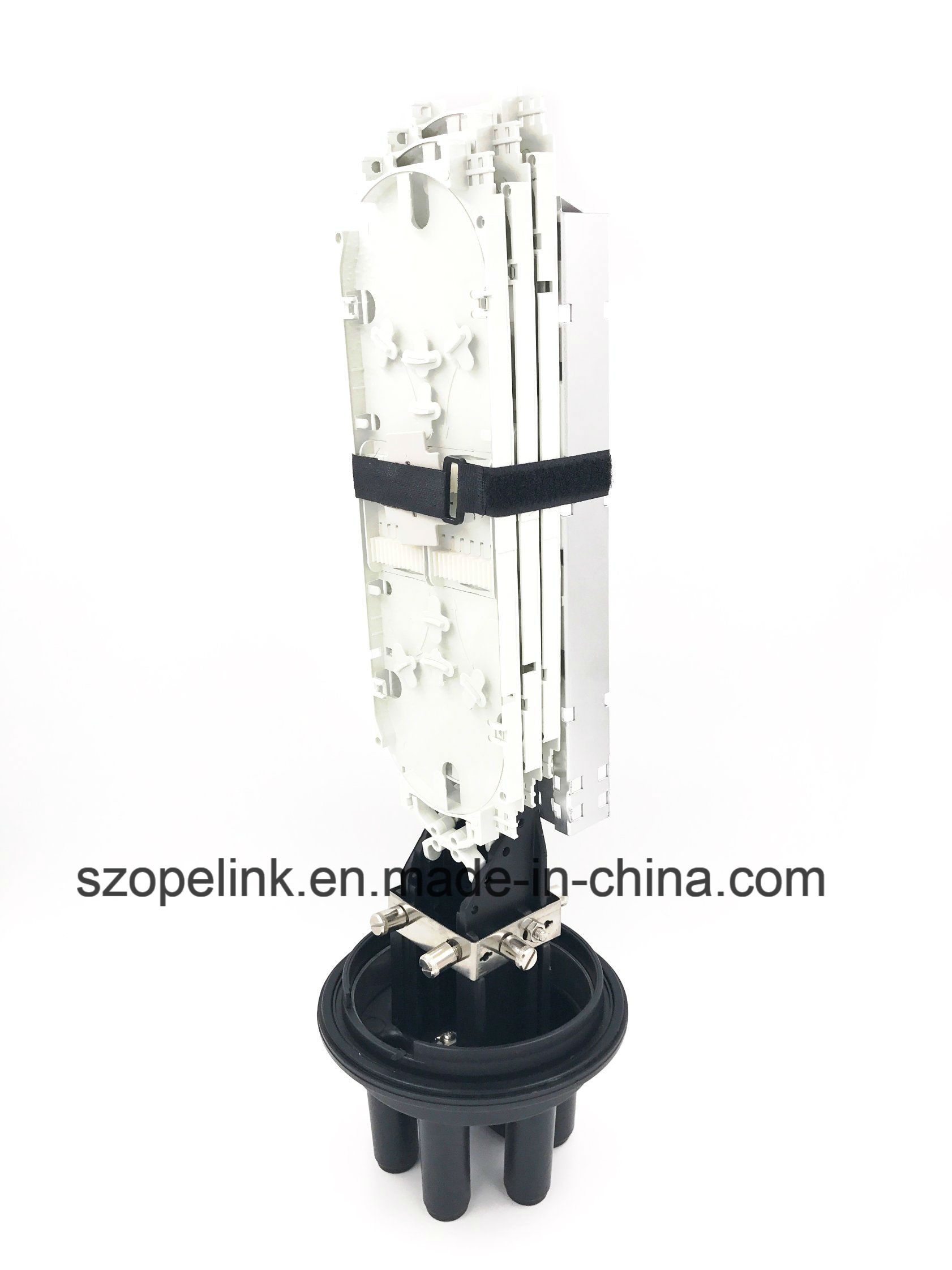

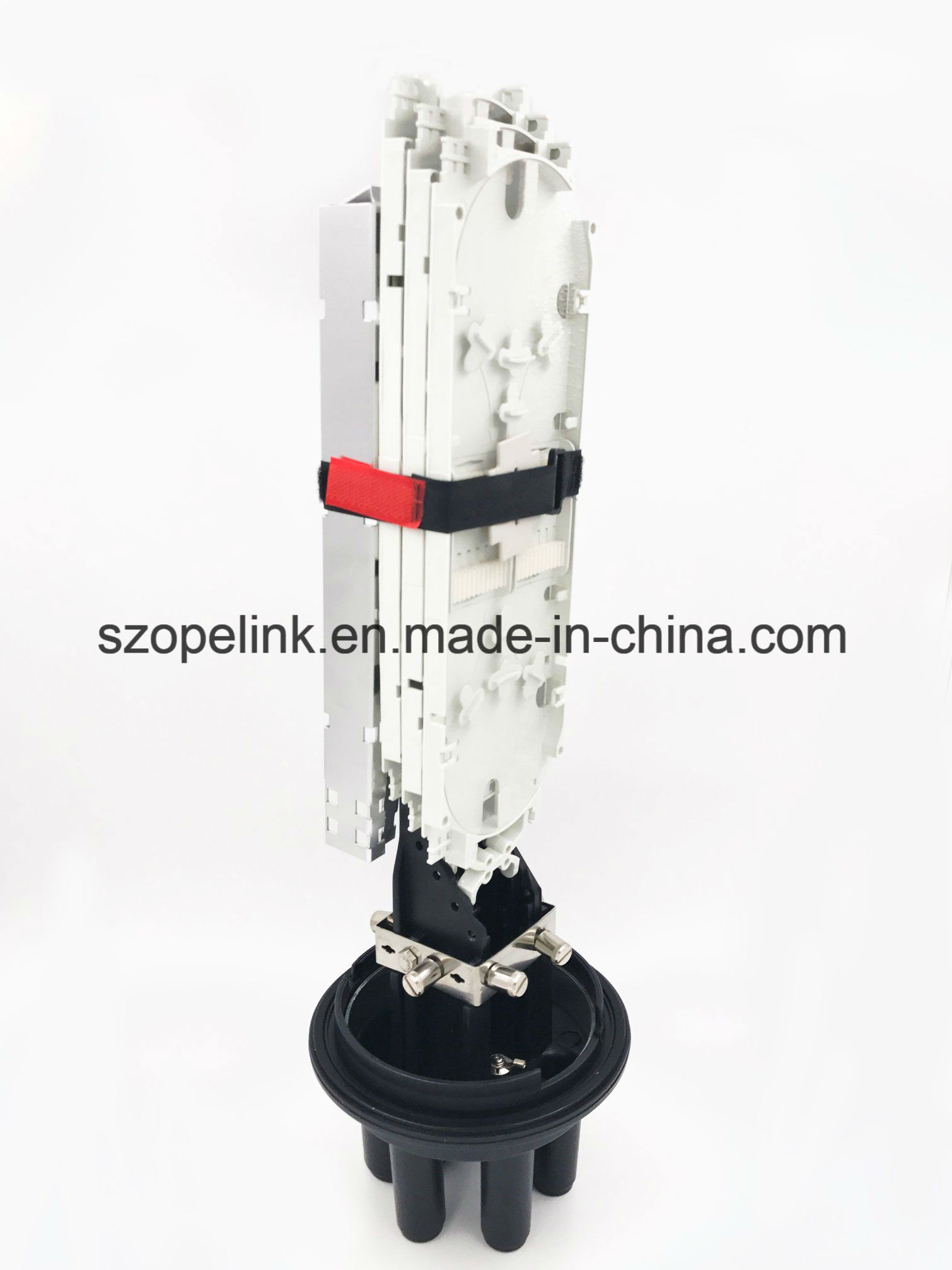

2	Fiber optic splice tray (FOST)	Max. 4 trays (bunchy) Max.: 4 trays (ribbon)	Fixing heat shrinkable protective sleeve and holding fibers	Suitable for: Bunchy: 24(cores) Ribbon: 12 (pieces)

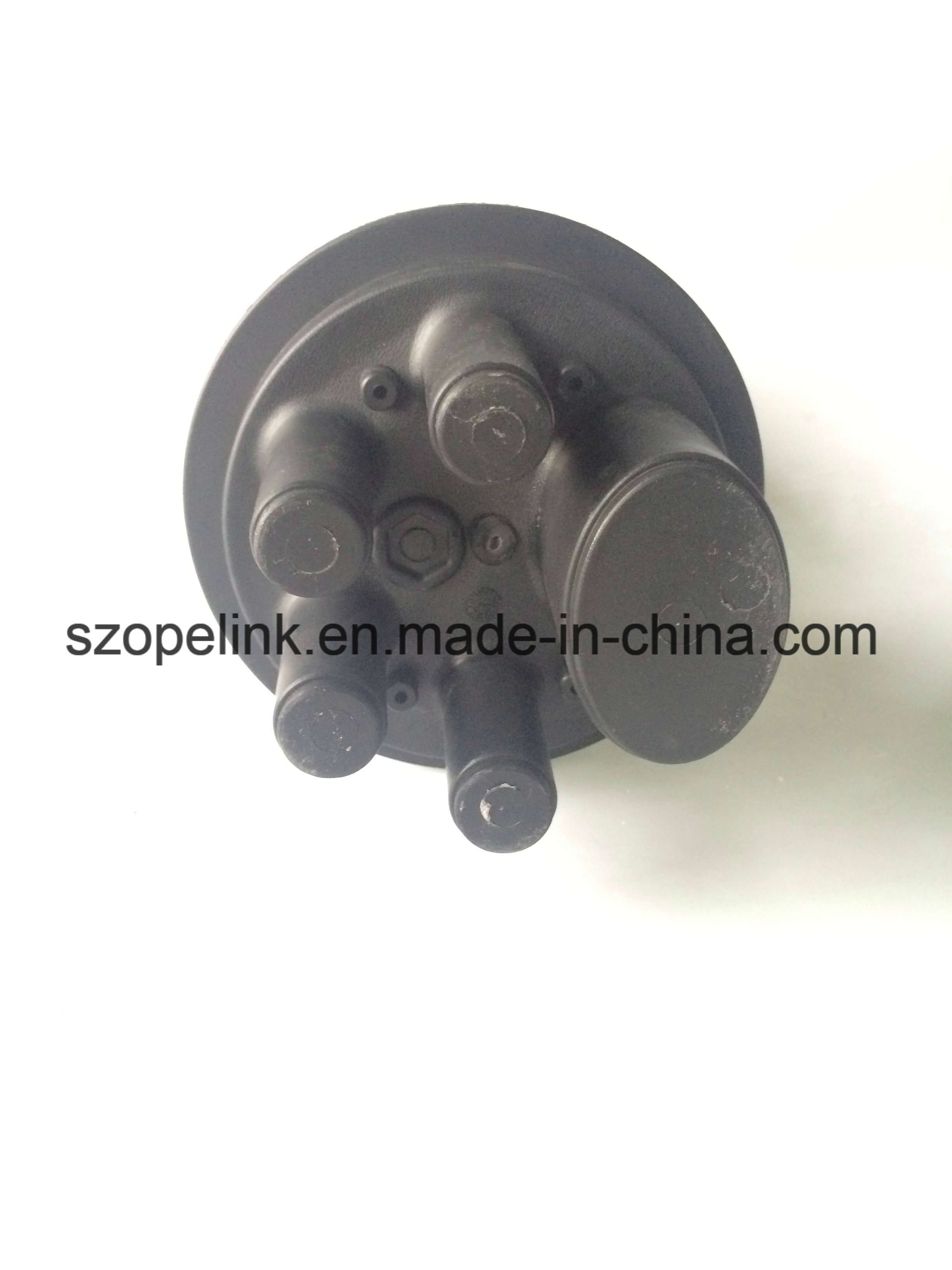

3	Base	1set	Fixing internal and external structure
4	Plastic hoop	1 set	Fixing between FOSC cover and base
5	Seal fitting	1 piece	Sealing between FOSC cover and base
6	Pressure testing valve	1 set	After inject air, it is used for pressure testing and sealing testing	Configuration as per requirement
7	Earthing deriving device	1 set	Deriving metal parts of fiber cables in FOSC for earthing connection	Configuration as per requirement

2.3 Main accessories and special tools

No.	Name of accessories	Quantity	Usage	Remarks
1	Heat shrinkable protective sleeve		Protecting fiber splices	Configuration as per capacity
2	Nylon tie		Fixing fiber with protective coat	Configuration as per capacity
3	Heat shrinkable fixing sleeve (elliptical)		Fixing and sealing single fiber cable	Configuration as per requirement
4	Heat shrinkable fixing sleeve (circular)		Fixing and sealing mass of fiber cable	Configuration as per requirement
5	Branching clip		Branching fiber cables	Configuration as per requirement
6	Earthing wire	1 piece	Putting through between earthing devices
7	Desiccant	1 bag	Put into FOSC before sealing for desiccating air.
8	Labeling paper	1 piece	Labeling fibers
10	Buffer tube	decided by customers	Hitched to fibers and fixed with FOST, managing buffer.	Configuration as per requirement
11	Aluminum foil paper	1piece	To protect the bottom of closure and inlet/outlet tubes when heating heat shrinkable fixing sleeve with fire sprays
