| Prod Model: |
92252-646 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Insertion Loss ( Max): |
<0.3dB |
| Return Loss ( Min): |
Upc>50dB, APC>60dB |
| Operating Temperature: |
-40 to + 75 Degrees Celsius |
| Storage Temperature Range: |
-40 to + 85 Degrees Celsius |
| Humidity: |
95% Rh ( Non-Packaging) |
| Transmission Medium: |
Single-Mode |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
| Structure: |

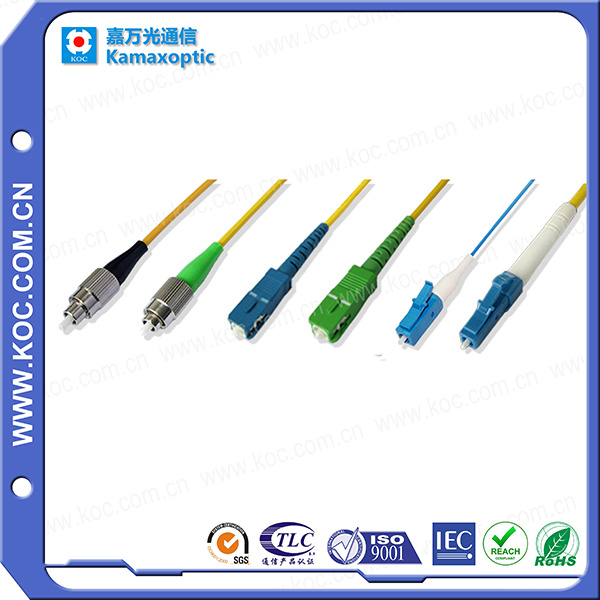

FC, Sc, LC |
| Connector Type: |
FC, Sc, LC |
| Brand: |
Koc |
Product Description
APPLICATIONS
High Performance Transmission
Quality System ISO9001
100% Visual Test by 800X
100% Geometrical Inspection by DORC
Complied with Telcordia GR-910-CORE
Various Connector Type Available
Applications
CATV Systems
Optical Network Equipments
Optical Measurement Equipments
Fiber Optic Telecommunications
High Speed Transmission Systems
The tuned patch-cords is tuned and manufactured according to TIA/EIA Standard for Intermateability Performance. It is for High Performance Transmission System.
In order for the performance of the connectorized passive devices to be consistent between the manufacturers testing facility and the customers testing facility the variability of the connector loss MUST be minimized. Even with a core offset of 0.5 um if the connectors are not tuned using Tuning Masters the resulting variability in the loss when mated to other connectors can be significant compared to the intrinsic loss in the passive component.
The tuned cord's core eccentricities are to be tuned shall be oriented towards the connector key as illustrated by TIA/EIA Standard. There are two kinds of tuned angular of ± 60deg and ± 90deg of the Key.
| Model | Tuned cord |
| Type | SC/PC, SC/APC, FC/PC, FC/APC,LC/PC, LC/APC |
| Tuned Angular | ±60deg |
| Insertion Loss (Max) | < 0.2dB |
| Return Loss (Min) | >50dB/UPC, >60dB/APC |
| Polarization Dependent Loss | ≤ 0.1 dB |
| 3D Data: Radius of Curvature | 10~25 mm(PC), 5~15 mm(APC) |
| Fiber Height (spherical Fit) | ± 50 nm |
| Apex Offset | 0 ~50 um |
| Operating Temperature | -40 to 75ºC |
| StorageTemperature Range | -40 to 85 ºC |
| Humidity | 95 % RH (Non-packaging) |
| KOC Optical Tuned Patch-cords Ordering Code |
| Side 1 | Side 2 | Fiber mode | Fiber Qty | Cable size | Buffer | Jacket | Length |
| TP-SC/ | SC- | 9: 9/125um | S: Simplex | 0: 0.9mm | T: tight | L: LSZH | _meter |
| TP-FC/ | FC- | 5: 50/125 | D: Duplex | 2: 2.0mm | L: loose | P: PVC |
|
| TP-LC/ | LC- | 6: 62.5/125 |
| 3: 3.0mm |
|
|
|
| TP-SCA/ | SCA- |
| , |
|
|
|
|
| TP-FCA/ | FCA- |
|
|
|
|
|
|
| TP-LCA/ | LCA- |
|
|
|
|
|
|
