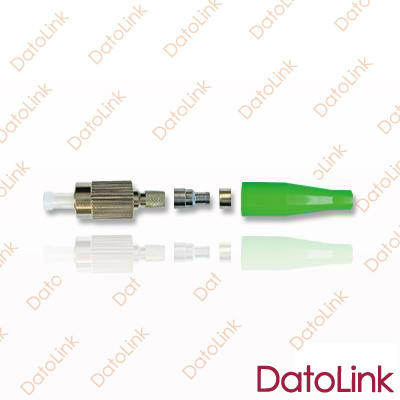

Fiber Optical Connector with FC/APC

Name: Fiber Optical Connector with FC/APC
Brand: all-electronics-online.com
SKU: 709448005
Availability: InStock
Rating: 4.7 (146 reviews)

Price:	US $ 0.45-0.55/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DTL-CFA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter:	2.0mm,3.0mm
Transmission Medium:	Single-Mode
Structure:	FC
Number Of Cores:	Single-Core
Ferrule Endface:	APC

Product Description

FC stands for Fixed Connection. It is fixed by way of threaded barrel housing. FC connectors are typical in test environments and for single mode applications. FC connectors were designed for use in high-vibration environments. The FC Connector is the most popular connector used today. It can be seen in every area of the communications environment, from a telecom's distribution room to a LAN closet, the FC has set the standard for optical Fiber connectors. FCS are being replaced by SC and LC connectors.

Features:

Low insertion loss and high return loss
Free-floating ceramic ferrule
UL-rated plastic housing and boot
Boots in a variety of colors
High precision alignmentconctor

Applications:

Local Area Networks (LANs) and Wide Area Networks (WANs)
Fiber Optic CATV, FTTH, FTTB, FTTP etc
Fiber Optic telecommunication systems
Transmission Mode (ATM)
Fiber Optic Backbone
Military Instrumentation

Availability:

-The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
-Clips are available for SC and LC duplex connectors
Housing kits without ferrule are available.
-PC, UPC and APC are available

Specifications
	Single mode	Multimode
Insert Loss	≤0.20dB	≤0.25dB
Return Loss	≥50 dB (PC)
	≥55 dB (UPC)
	≥65 dB (APC)
Durability	<0.20 dB typical change, 1000 mating
Operating Temperature	From -40 to + 80 degree	From -40 to + 80 degree
Ferrule Hole Sizes	125.0+1/-0μm, Concentricity: ≤1.0μm	125μm, Concentricity: 1≤3μm
	125.5+1/-0μm, Concentricity: ≤1.0μm	127μm, Concentricity: 1≤3μm
	126.0+1/-0μm, Concentricity: ≤1.0μm	128μm, Concentricity: 1≤3μm

Shenzhen Datolink Communication Technology Co., Ltd. Was founded in the January of 2007 by several engineers, who have had many years of working experience in fiber optical as well as in structured cabling industry. Datolink is a high technology oriented company with fiber optical products and structured wiring. We are dedicated to the design, manufacture and sales, meanwhile, we can provide customers with complete cabling solutions in installation and maintenance.

The company has a strict and comprehensive system of quality control and approved the standard ISO9001: 2000. Is well connected with raw materials providers and factories worldwidely, to offer customers a broad line of products with competitive prices and very soon time of delivery.

Our products have been exported to over 20 countries and regions such as Europe, Middle East, Southeast Asia, Latin America, etc. Datolink Ltd is committed to offer the partners high quality products and professional services, we look forward for the successful development with mutual-benefits, for casting the future of fiber optical and structured cabling!
