| Prod Model: |
LC Fast Connector |
| Product: |
LC Fast Connector |
| Polish: |
Upc or APC |
| Fiber Application: |
Singlemode or Multimode |
| Fiber Type: |
Simplex |
| Maximum Cable Diameter (mm): |
250um, 900um, 2mm, 3mm Fiber Types |
| Connector Ferrule: |
Ceramic |
| Notes: |
Pre-Polished, Pre-Stubbed Factory Polished Ferrule |
| Certificate: |
Ce, RoHS |
| Service : |
Perfect After-Sale Service |
| Warranty Time: |
2 Years |
| Transmission Medium: |
Single-Mode |
| Structure: |
LC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
| Connector Type: |
LC Upc |
Product Description

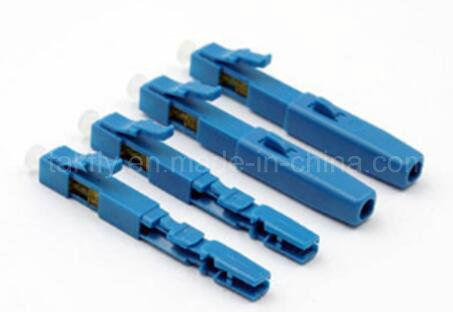

Fiber Optical LC Upc Field Assembly/Installable Fast Connector
The Fast Connector also is called "Field Assembly Connector" or "Field terminated fiber connector" or "quickly assembly Fiber connector". It is is designed for simple and fast field termination of single fibers, without polishing or epoxy. The unique design is a pre-polished ferrule and a mechanical splice inside the connector body.
Assembly of the LC type quick connector requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. No electrical power supply is needed.
Fiber Optical LC UPC Field Assembly/Installable Fast Connector
Technical Specification:
| Item | Parameter |
| Cable Scope | 3.0 x 2.0 mm Bow-type Drop Cable
2.0/3.0 indoor cable |
| Fiber Diameter | 125μm ( 652 & 657 ) |
| Coating Diameter | 250μm |
| Mode | SM |
| Operation Time | about 15s(exclude fiber presetting) |
| Insertion Loss | ≤ 0.25dB(1310nm & 1550nm) |
| Return Loss | ≥ 45dB |
| Success Rate | >98% |
| Reusable Times | >10 times |
| Tighten Strength of Naked Fiber | >5 N |
| Tensile Strength | >50 N |
| Work Temperature | -40~+85°C |
| On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
| Mechanical Durability(500 times) | IL ≤ 0.3dB |
| Drop Test(4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB
|
Fiber Optical LC UPC Field Assembly/Installable Fast Connector
Features:
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
PC,APC,UPC optional
Fiber Optical LC UPC Field Assembly/Installable Fast Connector
Application:
FTTH
Local Area Network
CATV System
Telecommunication Networks
Equipment Test
Fiber Optical LC UPC Field Assembly/Installable Fast Connector
