| Prod Model: |
MPO/MTP |
| IEC 61754-7 Compliant: |
Compact Design, up to 24 Fiber Ribbon |
| Cable Jacket Color: |
Blue,Green,Aqua,Red,Magenta,Beige |
| Adapter Type: |
MPO/MTP |
| Channel: |
2 RO 24 |
| Housing Color: |
Aqua,Green, Beige,Yellow, Magenta |
| Boot Color: |
Black |
| Boot Type: |
Round, Flat |
| Polishing: |
APC, PC,Upc |
| Cable Jacket Material: |
PVC, LSZH, Ofnr, Ofnp, PE |
| Application: |
Communication |
| Certification: |
SGS,Reach,IEC,Tlc |
| Type: |
2 to 24 Cores |
| Connection Structure: |
MPO/MTP |
| Material Shape: |
Ribbon Cable, Mini Round Cable |
| Brand: |
ODM |
| Sheath Material: |
PVC,LSZH |
Product Description

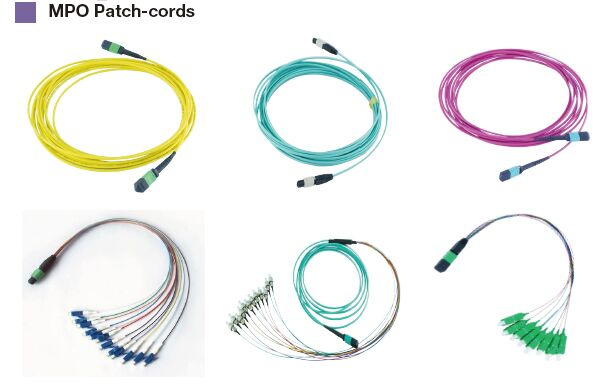

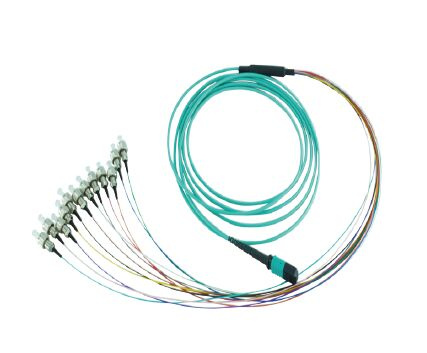

MPO Fiber Optical Patch-CordsU-Senda MPO solution is designed for high-density fiber
connections and high-speed data center cabling.
We provide an economic highly reliable solution for
your fber network systems.
APPLICATIONS:
- CATV, and Multimedia
- Gigabit Ethernet
- Industrial and medical
- Active device interface
- Premise installations
- Interconnection for O/E modules
- Data processing networks
- Telecommunication networks
- Optical switch interframe connection
- Asynchronous Transmission Mode (ATM)
FEATURES:
- IEC 61754-7 Compliant
- Compact design, up to 24 fiber ribbon
- Polishing does not require diamond film
- Precision molded MT ferrule
- Telcordia GR-1435-CORE compliant
- Low insertion loss and back reflection loss
- High precision guide pins for exact alignment
SPECIFICATIONS
| Single mode | Multimode |
| Insertion Loss | Low Los ≤ 0.35dB | Low Los ≤ 0.35dB |
| Standard Loss ≤ 0.7dB | Standard Loss ≤ 0.5dB |
| Return Loss | ≥ 55dB | ≥ 30dB |
| Durability | <0.3dB typical change,
200 matings | - |
| Operating Temperature | -40 to +85 ºC | -40 to +85 ºC |
Note: The price range is for MPO(female)-MPO(female) Singlemode 12 core mini round cable 1m.
Shenzhen Senda Communication Technology & Equipment Co. Ltd. was established in March 2012 as a sub-company of Shenzhen KOC Communication Co. Ltd..
With the total investment of RMB 15 million (USD2.4 million), the XXXX is a hitech company involved in optical research,product development and manufacture. 1500 square meters dust free clean workshop is equipped with the most advanced producing equipment for fiber optic components and furnished with best laboratory and testers.
The core team of the company is combined by the elites who are doctors from Great Britain and USA and local experts in the fiber optic industry. They are experienced in production managements, technology development,products promotion, capital operation and intellectual protection. There are 150 people in production and production management, and 110 skilled production line operators. Furthermore, the company set up 600 spare meters research center with more than 10 R & D and process engineers.
The center enhances our independent research & development and our leading position in the core science and technology in fiber optic communication devices, networking, fiber optic sensors and ultra-fast fiber optic lasers.
Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

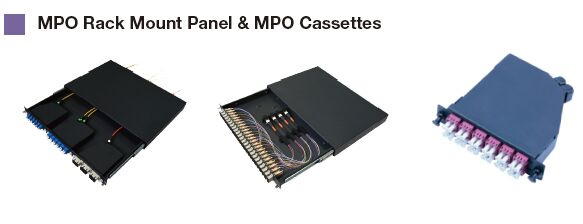

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.
We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
About KOC
Located in Shenzhen, China, KamaxOptic Communication Co. Ltd., well-known as KOC, is specialized in fiber optic communication products and accessories. She offers precise customized solutions for various customers involved in telecommunication, broadcast, CATV and network industry worldwide.

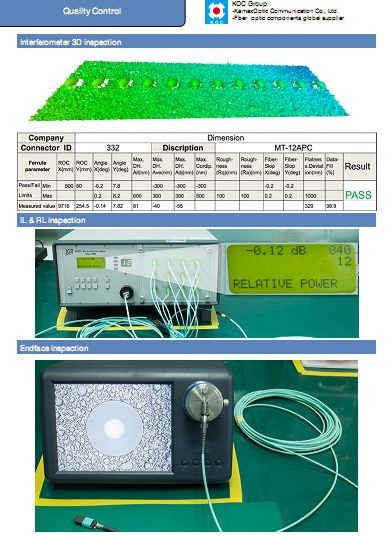

Our quality is guaranteed by the scientific management with the assistances of professional personnel, advanced testing equipments and efficient ERP system under the strict guidance of ISO9001: 2000, from supplier evaluation to inbound material examination, from processing monitoring to permanent inspection, from packing to shipping. We do care for every detail!
To be dedicated to be a popular manufacturer with her quality products, satisfactory services and attention to details through the full commitment of each personnel to work as one team in an effort to exceed our customer expectations.
To operate the business in a transparent and honest manner, that our customers, our associates and our business partners are proud to play their part in our success.
Please visit us website for more information: http://www.koc.com.cn
