Fiber Optical MPO/MTP Series Products

Name: Fiber Optical MPO/MTP Series Products
Brand: all-electronics-online.com
SKU: 803825535
Availability: InStock
Rating: 4.4 (34 reviews)

Price:	US $ 38-50/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPO/MTP
Cable Diameter Szie:	0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm
Connector Housing Color:	Aqua,Green, Beige
Connector Boot Color:	Black,
Clips:	with Clips, Without Clips
Length:	0.5m, 1m,2m or Customized
Cable Jacket Color:	Blue, Beige, Aqua, Black, Green, Yellow,Customized
Connector Type:	2 to 24 Core
Cable Type:	Mini Cable, Ribbon Cable
Application:	FTTX
Type:	Multi-mode Fiber
Certification:	SGS
Connection Structure:	MPO-MPO
Brand:	Ark
Sheath Material:	PVC; LSZH; PE; Ofnp; Ofnr

Product Description

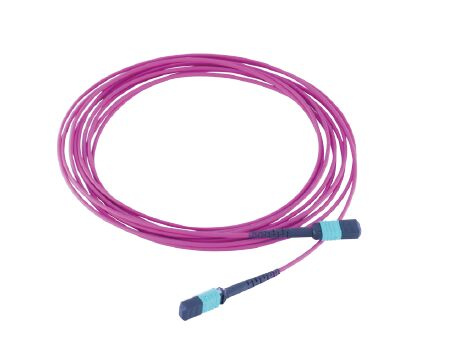

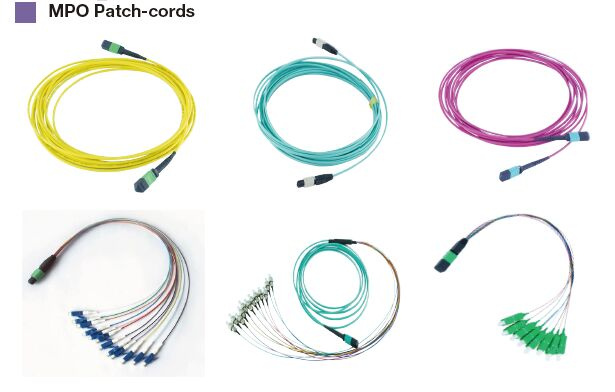

MPO Fiber Optical Patch-Cords

MPO solution is designed for high-density fiber

connections and high-speed data center cabling.

We provide an economic highly reliable solution for

your fber network systems.

APPLICATIONS:

- CATV, and Multimedia

- Gigabit Ethernet

- Industrial and medical

- Active device interface

- Premise installations

- Interconnection for O/E modules

- Data processing networks

- Telecommunication networks

- Optical switch interframe connection

- Asynchronous Transmission Mode (ATM)

FEATURES:

- IEC 61754-7 Compliant

- Compact design, up to 24 fiber ribbon

- Polishing does not require diamond film

- Precision molded MT ferrule

- Telcordia GR-1435-CORE compliant

- Low insertion loss and back reflection loss

- High precision guide pins for exact alignment

SPECIFICATIONS

	Single mode	Multimode
Insertion Loss	Low Los ≤ 0.35dB	Low Los ≤ 0.35dB
Insertion Loss	Standard Loss ≤ 0.7dB	Standard Loss ≤ 0.5dB
Return Loss	≥ 55dB	≥ 30dB
Durability	<0.3dB typical change, 200 matings	-
Operating Temperature	-40 to +85 ºC	-40 to +85 ºC

SPECIFICATIONS

ITEM	PARAMETER
Applicative connector type	MTRJ,MPO,MTP
Fiber mode	Single mode(PC)	Multi-mode(PC)
Operating wavelength	1250~1650nm	850nm, 1300nm
Test wavelength	1310nm, 1550nm	850nm, 1300nm
Insertion Loss	MT-RJ: typical≤0.40dB,Max≤0.50dB MPO: typical≤0.50dB,Max≤0.70 dB	MT-RJ: typical≤0.25dB,Max≤0.30dB MPO: typical≤0.40dB,Max≤0.50dB
Return Loss	APC≥50dB	/
Applicative cable OD.	MTRJ: Duplex ∮2.0mm / Simplex ∮3.0mm; MPO: Ribbon fiber/breakout fiber
Repeatability	≤0.10dB
Interchangeability	≤0.20dB
Durability	≤0.20dB typical change,500 mating
Tensile Strength	≥120N(without 0.9mm patchcord) or customized
Operating Temperature	-20ºC to +70ºC
Storage Temperature	-40ºC to +85ºC

ORDERING OPTIONS

Fiber Type	Cable Type	Connector	Boot Size	Boot Color	Polishing Type	Length
SM: 9/125μm	Simplex(2-fiber)	Male	2.0mm	Black	PC	Customized
MM: 50/125μm	Duplex	Female	3.0mm		APC
MM: 62.5/125μm	Ribbon		Ribbon
MM: OM3	Breakout

Note: The price range is for MPO/MPO 24 CORE round cbale 3meter.

Operating since 1998

Ark was established in 1998, during a time when optical communications was a fledgling industry in China. As an experienced manufacturer, we provide a wide range of products including SM/mm fiber-optic connectors, multiplexers, optical attenuators, MPO cassettes and optical distribution frames.

Providing OEM and Training Services

Our engineering team can design custom products in accordance with clients' requirements. These specialized products are available with bilingual (English and Chinese) installation manuals. OEM and training services can be provided upon request. We began as a school-run factory and now widely recognized as a pioneer in the field.

When the National Research Institute of Telecommunications completed the first trial fiber-optic connector in China, we became a designated manufacturer. Our double status as a learning institution and a production center provided the perfect accommodations for this important project. An experienced taskforce of technicians had worked round the clock to put the new technology into production. Months of dedication and countless trials allowed us to successfully implement the prototype technology into finished products. Extensive collaboration with research centers enabled us to yield the first-ever domestically produced fiber-optic connector. This achievement marked the beginning of a new era for the Chinese optical communications industry.

We have established a production base in Jiangxi for the focused production of fiber-optic connectors and adapters. In 2005, we built a production facility for jumpers and attenuators in Shenzhen. Its establishment was complimented with the addition of an independently operated sales center and R&D institute.

Meeting RoHS and SGS Standards

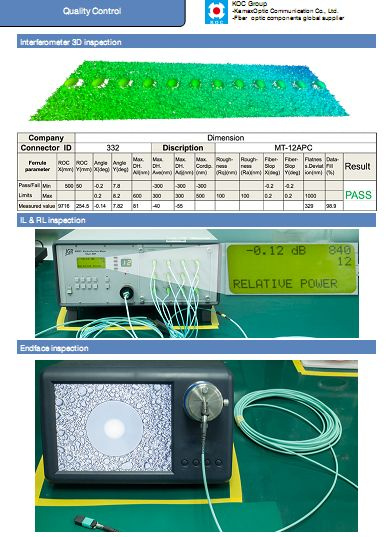

We have successfully passed the ISO 9001 certification because of our meticulousness in the whole production process. Advanced manufacturing techniques and premium raw materials ensure the outstanding quality of our competitively priced products. All our products are compliant with RoHS and SGS standards.

Trusted by Well-known Companies

Our major clients include well-known companies such as Shenzhen Huawei Technologies, Wuhan Acceling Technologies, Shenzhen Sunsea Telecommunications and Luoyang Aviation Electrical Factory. We are the only supplier of SC optical connectors for the Ericsson (Europe). We are also the preferred supplier of the Telefonica (China branch).

Contact Us

We have redoubled our product development efforts to accommodate fluctuating market demands. Successive investments in 2012 and 2013 enabled our Shenzhen facility to produce new products such as CWMD and DWDM modules. We seek to cooperate with prospective partners in the creation of a brand new chapter in the optical communications industry. Call now.
