Fiber Optical MU Adapter

Name: Fiber Optical MU Adapter
Brand: all-electronics-online.com
SKU: 725181132
Availability: InStock
Rating: 5 (110 reviews)

Price:	US $ 1-2/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PN-006
Fiber Type:	SM, mm
Connector Type:	MU
RL:	55dB
IL:	0.35dB
Connector Durability:	500 Matings
Weight:	0.007lbs
Fiber Polish:	UPC, APC
Usage:	Display
Connection:	Plug In
Output Type:	Fiber
Brand:	PUNO

Product Description

Fiber Optical MU Adapter

PUNO's 727 series MU connectors deliver superior performance and high repeatability in a small form factor. Our MU connectors feature impact resistant, nonflammable polymer, push-pull type operation, scalable high-density package, small size, and light weight. Connectors are available in either 2 mm or 900 µm boot types. MU adapters feature the same quality and reliability found in the SC adapter, plus all the benefits of a small form factor interface. MU adapters are available with either zirconia or metal sleeves in simplex or vertical duplex configurations.

Applications:

√ High-Density DWDM;
√ Telecommunications;
√ Test Instruments;
√ Broadband Networks;
√ Data Centers.

Features:

√ High-Density Package;
√ High-Optical Performance;
√ NTT Compatible;
√ TIA-604 Compliant;
√ Push-Pull Type Operation;
√ Small Size and Lightweight;
√ Telecordia GR-326 Qualified.

Specifications - MU Connector:

Parameters	Multimode	Single-mode
Insertion Loss	0.2 dB Typical 0.3 dB Maximum	0.15 dB Typical 0.25 dB Maximum
Back Reflection	-25 dB Typical	-35 dB PC Polish -45 dB Super PC -55 dB Ultra PC
Connector Durability	500 Matings
Connector Repeatability	IL<0.2dB	IL<0.1dB
Temperature Cycling	<0.2dB
Vibration	<0.2dB
Cable Retention	>15lb
Operating Environment	-40°C to +85°C

Specifications - MU Adapter:

Parameters	Phosphor/Bronze	Zirconia
Connector Durability	500 Matings	500 Matings
Connector Repeatability	<0.2dB	<0.1dB
Insertion Loss	IL<0.3dB	IL<0.2dB
Operating Temperature	-40°C to +85°C

Ordering Information - MU Adapter:

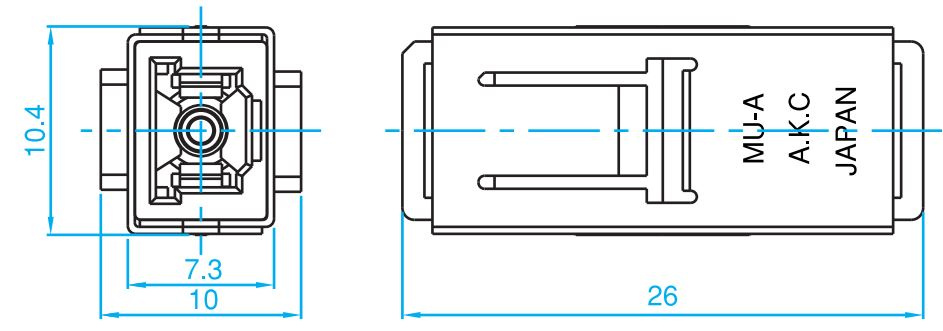

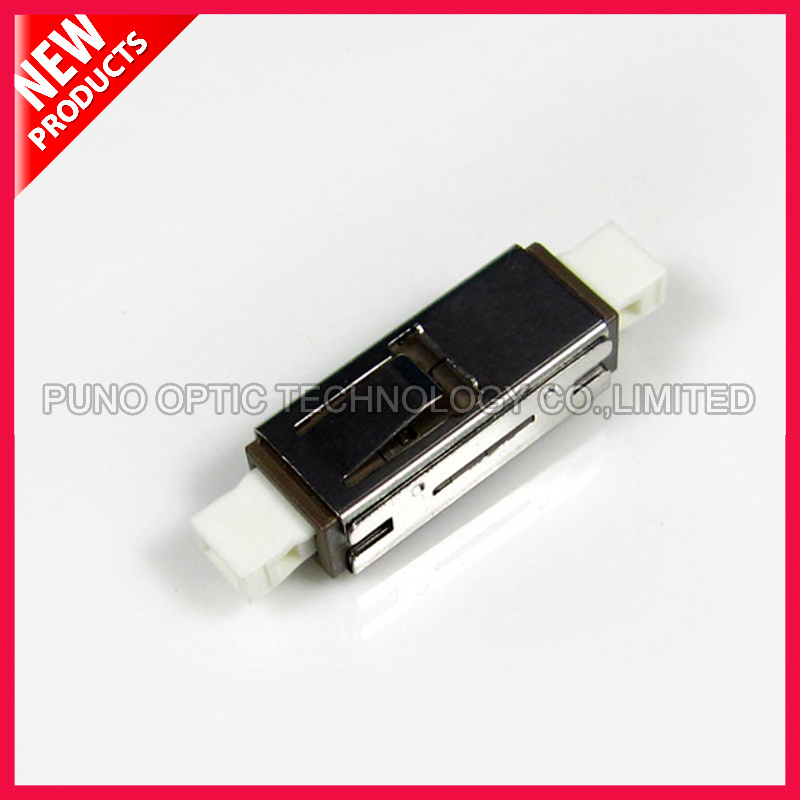

PN-008	MU-A Simplex, Metal Sleeve Adapter
PN-009	MU-A Simplex, Zirconia Sleeve Adapter

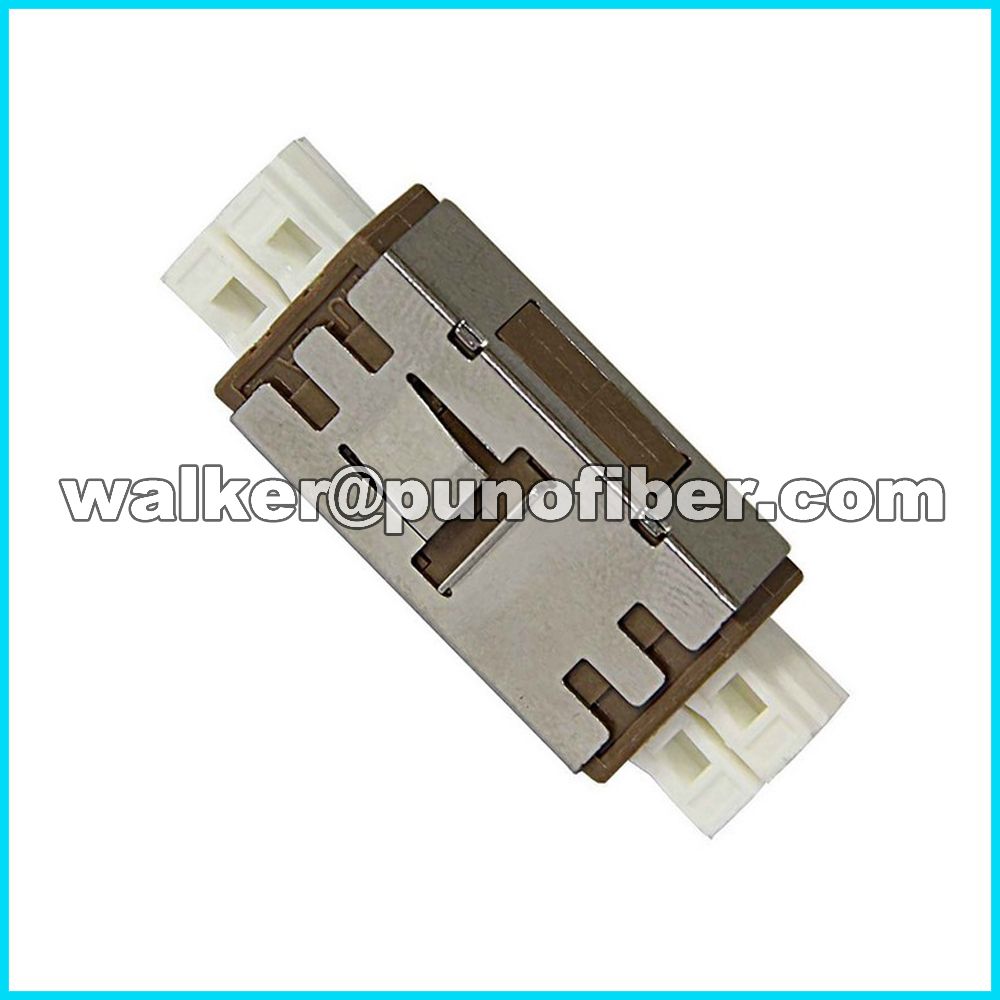

PN-010	MU-2A Vertical Duplex, Metal Sleeve Adapter
PN-011	MU-2A Vertical Duplex, Zirconia Sleeve Adapter

Product Appearance:
