Fiber Patch Cord LC-LC Single Mode

Name: Fiber Patch Cord LC-LC Single Mode
Brand: all-electronics-online.com
SKU: 835019905
Availability: InStock
Rating: 4.6 (35 reviews)

Price:	US $ 1-1.5/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Fiber Patch Cord LC-LC
Fiber:	Singlemode Fiber LC Patch Cord
Length:	1-50m
Fiber Type:	G652D, G657A2
Fiber Count:	Simplex, Duplex, Bundle
Operating Tempereture:	Rature: -20/+60 Degree
Application:	Communication
Type:	Single-mode Fiber
Certification:	CPR

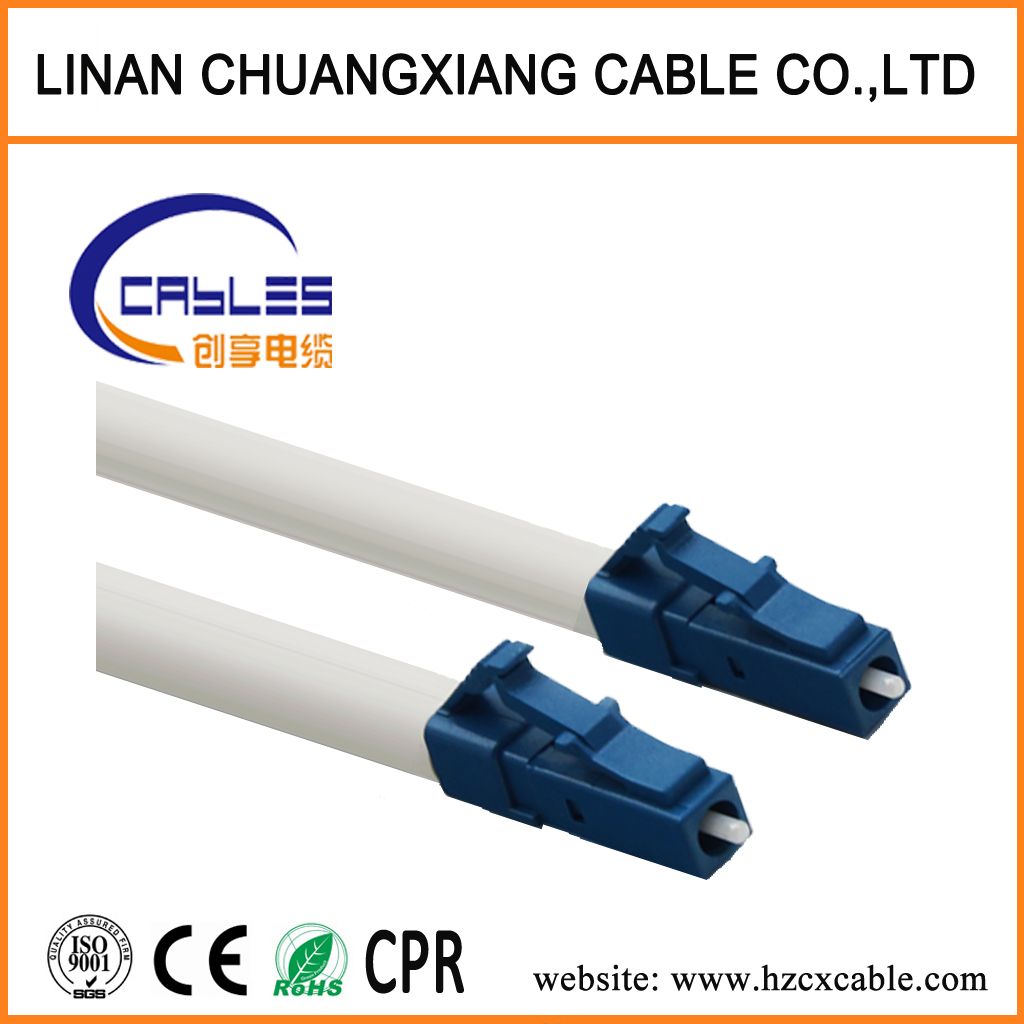

Connection Structure:	LC-LC
Brand:	Cx / OEM

Product Description

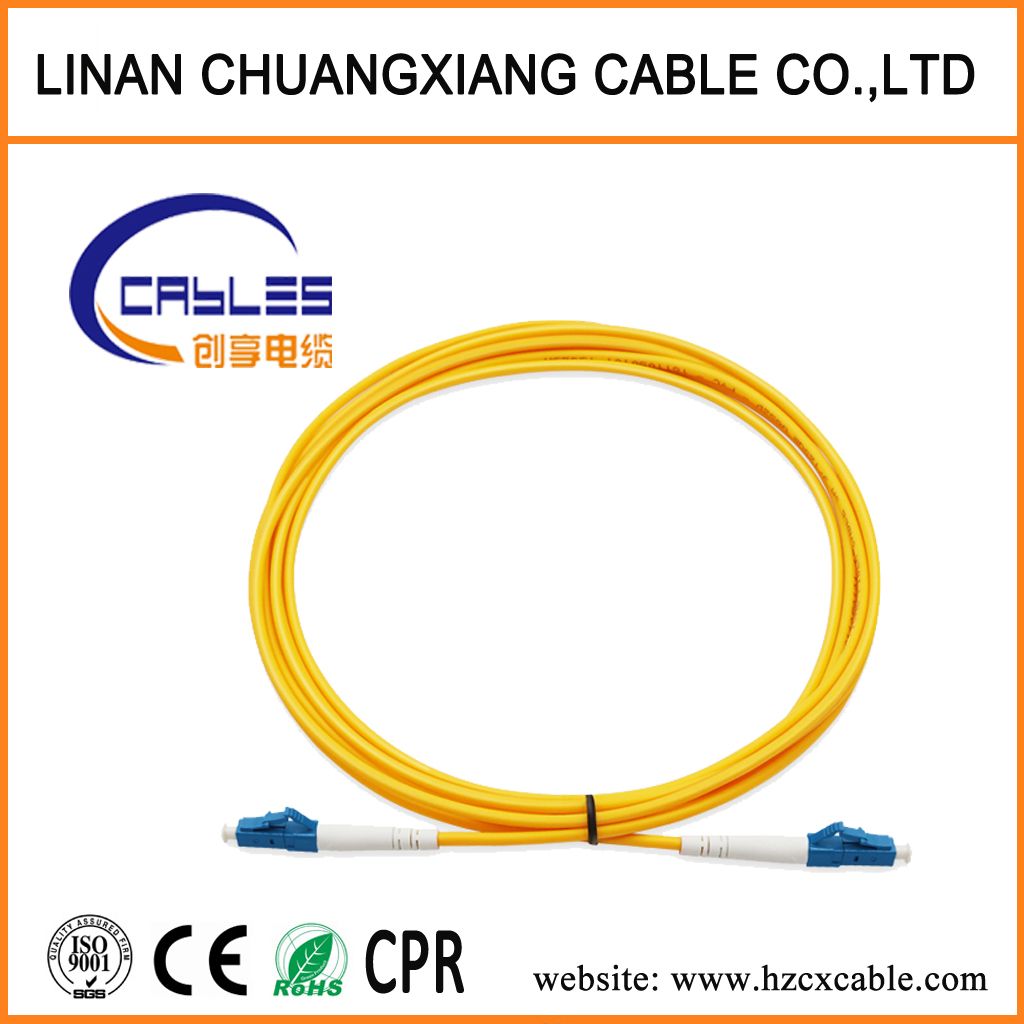

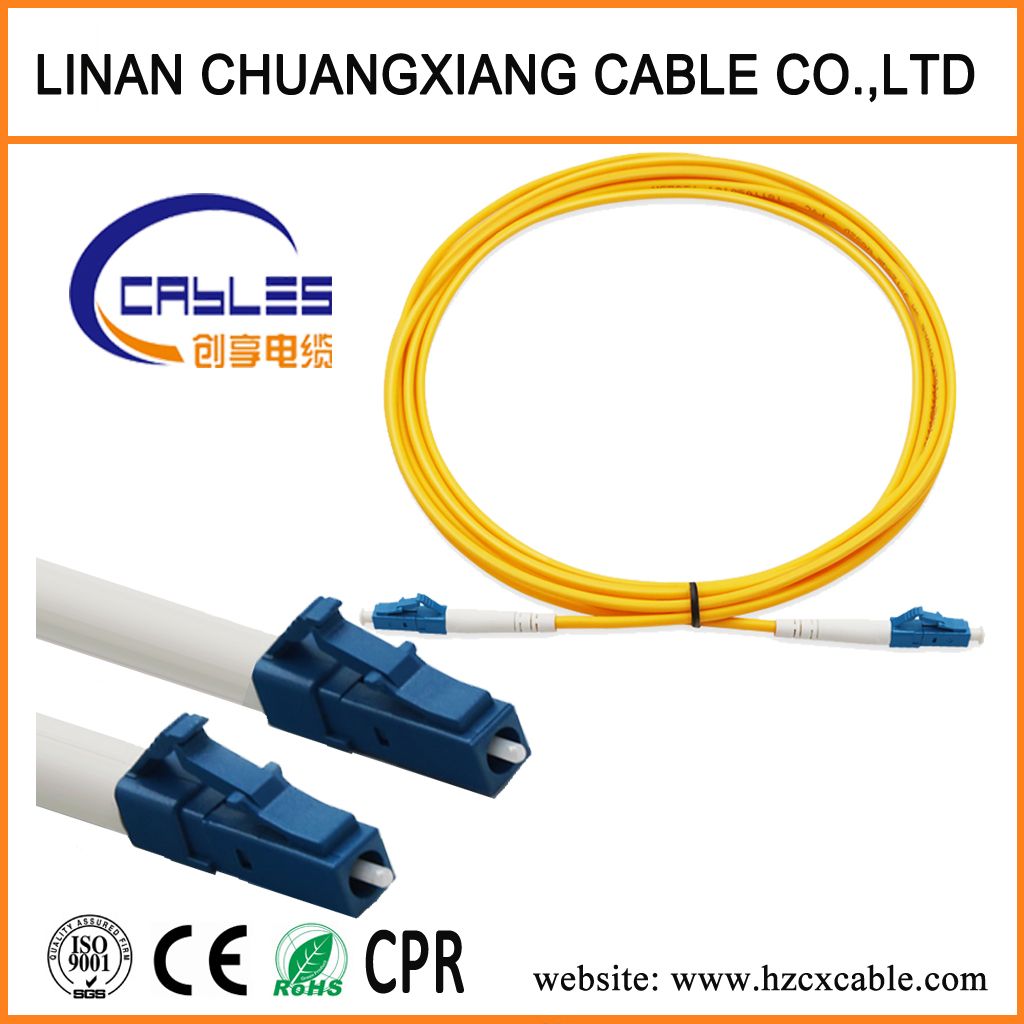

Optical Fiber Patch Cord LC-LC

Description:
The patch cord is made by 2.0mm or 3.0mm PVC sheath simplex or duplex indoor cable and then is completed with SC. ST. FC or LC connectors.
It provides a stable and reliable connection both SM or MM and single or dual fiber. PC, UPC and APC is optional.

Low insertion loss.
High return loss.
High stability and reliability.

Application:
1. Optical fiber communication system
2. Optical access network
3. Optical-fiber date communication
4. Optical fiber CATV
5. A local area network (LAN)
6. Test equipment

Technical parameter:

Characteristic	SM , MM
Connector type	FC/SC/ST/LC/MU/MT-RJ
Diameter(mm)	0.9,2.0,3.0
Polish	SM PC	MM PC	UPC	APC
Insertion loss	≤0.3dB	≤0.4dB	≤0.2dB	≤0.3dB
Return loss	≥40dB		≥50dB	≥65dB
Interchangeability	≤0.2dB
Repeatability	≤0.2dB
Operation temperature	-40~+80

Order Optional:

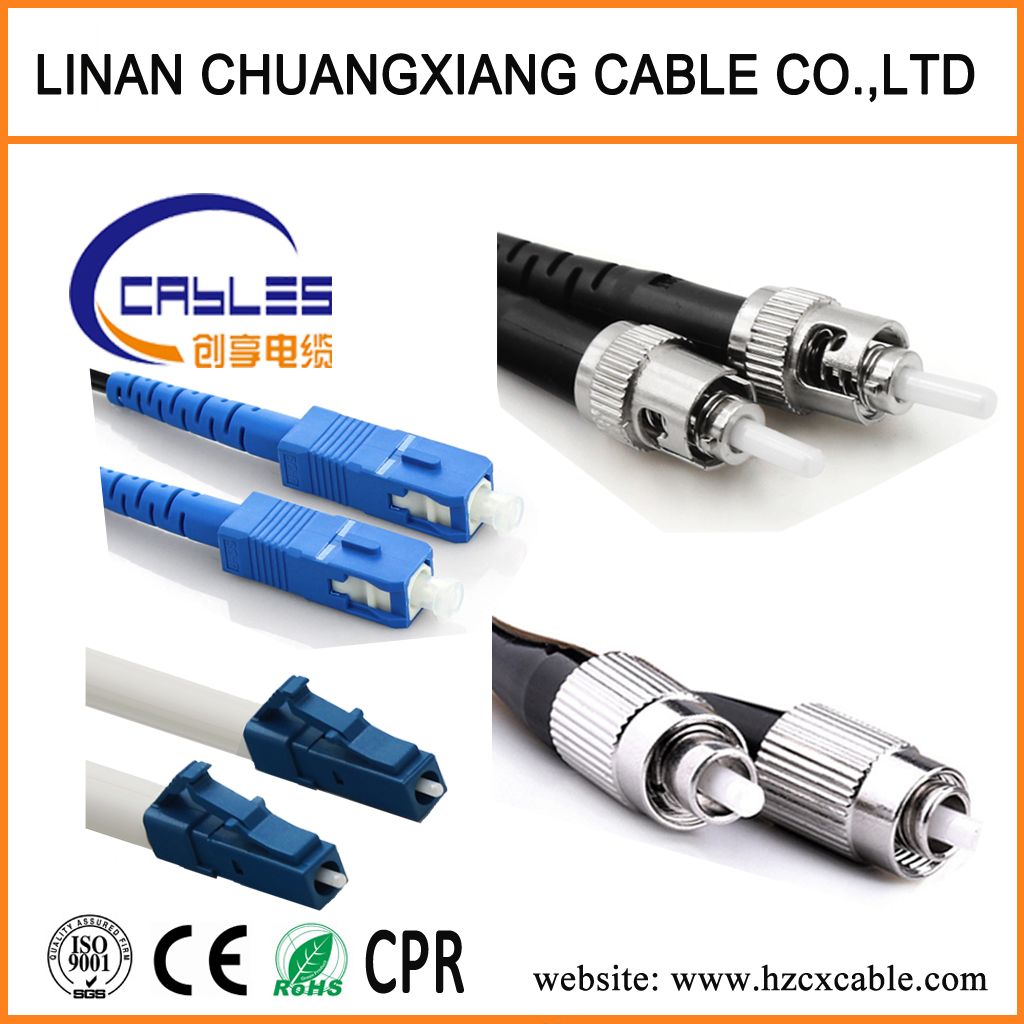

1) Connector type: FC, SC, LC, ST
2) Ferrule End-face: PC, UPC, APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH

G652D fiber information
Mode field diameter (1310nm): 9.2±0.4μm
Mode field diameter (1550nm): 10.4±0.8μm
Cladding diameter: 125±1.0μm
Coating diameter: 245±7.0μm
Attenuation at 1310nm: ≤0.35dB/km
Attenuation at 1550nm: ≤0.21dB/km
Bending loss at 1550nm (100 turns,30mm radius): ≤0.05dB
Dispersion in the range 1288 to 1339nm: ≤3.5ps/(nm·km)
Dispersion at 1550nm: ≤18ps/(nm·km)
Dispersion slope at zero dispersion wavelength: ≤0.092ps/(nm2·km)

More product:

Contact Information:
Name: Diego
Mob :+86 15067106732
Tel:+86 571 61107876 Fax:+86 571 61107877
Web: www.hzcxcable.com

We are here waiting for you~

Linan Chuangxiang Cable Co., Ltd has high quality products, preferential prices of communication wires and cables, and high quality customer service. We will still insist on the enterprise sprit of "concentration, profession, integrity, and practicability", the operation philosophy of "focusing on one thing, making it stronger and producing one cable wholeheartedllu"and the humanity idea of "being kind to staffs and customers". We look forward to move forward with old and new customers work together in glory.

Our company supplies different kinds of Cables with high quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the cables with good quality at the reasonable price.

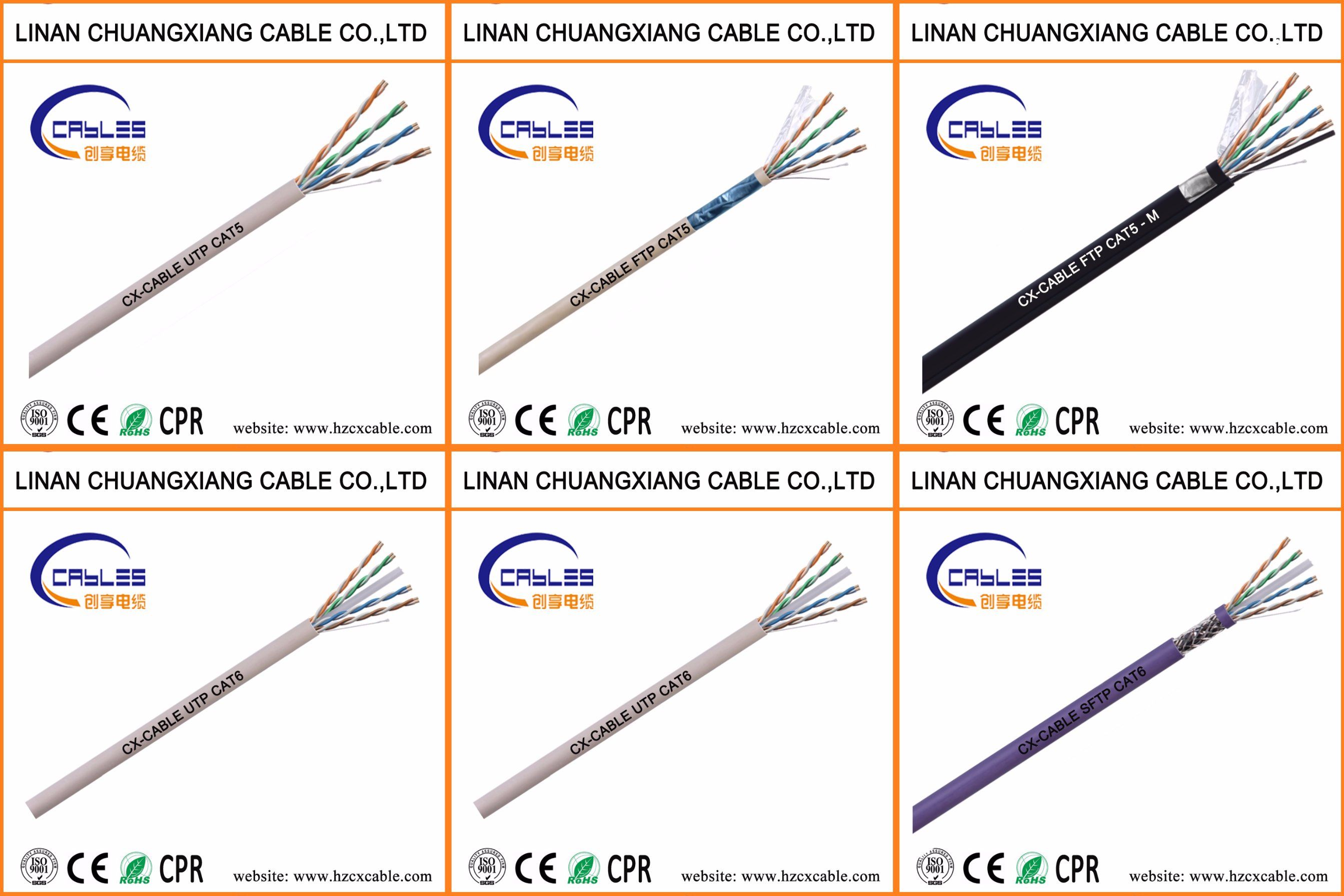

Our main products are LAN cable and coaxial cable. Every year, we will attend three or four exhibitions in the whole world to extend our cable business. Now, our main market is Africa, , the Middle East, and also Asia. We look forward to have the customers alll over the world.
