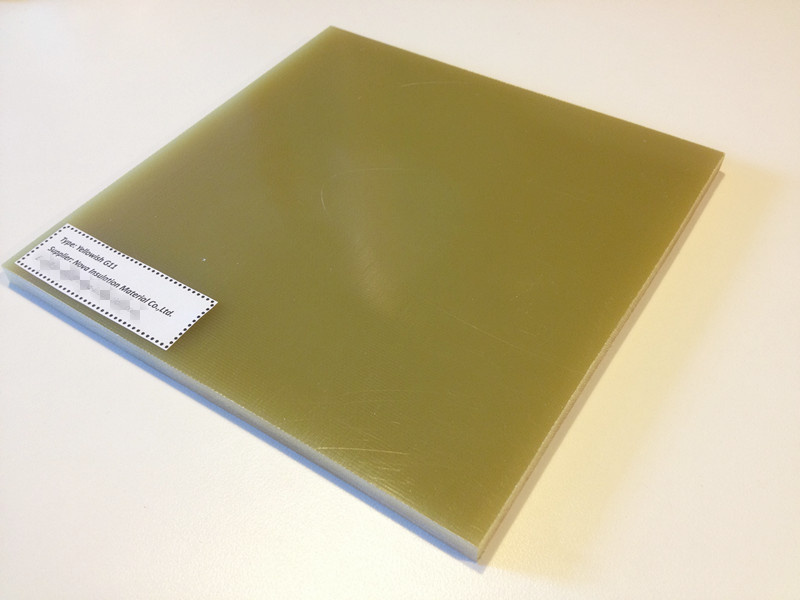

Fiberglass Epoxy Material Hgw 2372.1

Prod Model:	epgc 203
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sheet Size:	1020*1220
Application:	Switch Baseplate
Type:	Insulation Sheet
Chemistry:	Inorganic Insulation
Material:	Fiberglass
Thermal Rating:	H 180
Maximum Voltage:	20KV~100KV
Color:	Yellowish
Brand:	Nova

Product Description

G11 is similar to G10, with the addition of a higher operating temperature
And improved mechanical strength at elevated temperature up to 180 Degree Celsius.

Applications:
Widely used as insulating structural parts in electrical & mechanical equipments, such as generators, motors, transformers, terminal boards, PC boards, washers, and many others.

Advantages:
* G11 Temperature Index: 155 / 180 Degree Celsius
* Maximum operating temperature up to 200 degree Celsius
* Proof tracking index (CTI) 600V, halogen-free, and flame -resistance. (specific grade)
* Higher mechanical at elevated temperature.
* Excellent rigidity & dimensional stability
* Good dielectric properties
* Low water absorption

Specifications:
1) Grade: G11
2) Color: Brown; Yellowish;
3) Thickness range: 0.1mm~100mm
4) Sheet size: 1020*1220mm; 1020*2040mm; 1220*2440mm
5) Min. Order Quantity: 500 kgs in a lot
