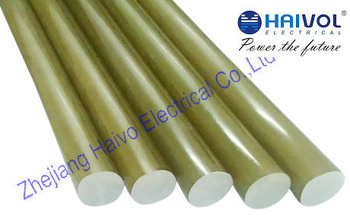

Fiberglass Rod for Composite Insulator Used

Prod Model:	insulator
Application:	High-voltage
Material:	Composite Polymer
Structure:	Suspension Insulator
Type:	B Type Insulator
Color:	Green
Brand:	Haivol

Product Description

1.Capacity: 100 Pultrusion lines, the largest manufacturer of composite insulator rods in China.
2.Technique: the only one using vacuum injection technique without mould release agent.
3.Test: Rods passed tests in domestic labs, including WHVRI,CEMT,XIHARI, especially passed KEMA tests in the Netherlands and 7200h stress corrosion test.
4.Standards: IEC, ASTM, GB,DL
5.Application: Rods operate in high voltage lines up to 1000kV.
Features
1. Range: Diameter Ф5-Ф130 mm; Length 0-12.5 m
2.Type
Based on properties, rods are classified into High temperature resistant type (E-glass Rod) and High temperature & acid resistant type (E-glass Rod).
Table I: The specification of high temperature resistant E-glass Rod

No.	Item	Type	Color	Diameter(D)	Length(L)	Note
1	TREG5*L	E	Green	5mm	According to Customer's order
2	TREG8*L	E	Green	8mm	Ditto
3	TREG10*L	E	Green	10mm	Ditto
4	TREG12*L	E	Green	12mm	Ditto
5	TREG13*L	E	Green	13mm	Ditto
6	TREG14*L	E	Green	14mm	Ditto
7	TREG15.7*L	E	Green	15.7mm	Ditto
8	TREG15.875*L	E	Green	15.875mm	Ditto
9	TREG16*L	E	Green	16mm	Ditto
10	TREG17*L	E	Green	17mm	Ditto
11	TREG17.48*L	E	Green	17.48mm	Ditto
12	TREG18*L	E	Green	18mm	Ditto
13	TREG19*L	E	Green	19mm	Ditto
14	TREG20*L	E	Green	20mm	Ditto
15	TREG22*L	E	Green	22mm	Ditto
16	TREG24*L	E	Green	24mm	Ditto
17	TREG25*L	E	Green	25mm	Ditto
18	TREG26*L	E	Green	26mm	Ditto
19	TREG28*L	E	Green	28mm	Ditto
20	TREG30*L	E	Green	30mm	Ditto
21	TREG30.7*L	E	Green	30.7mm	Ditto
22	TREG32*L	E	Green	32mm	Ditto
23	TREG34*L	E	Green	34mm	Ditto
24	TREG35*L	E	Green	35mm	Ditto
25	TREG36*L or TREB36*L	E	Green \ Brown	36mm	Ditto
26	TREG38*L or TREB38*L	E	Green \ Brown	38mm	Ditto
27	TREG40*L or TREB40*L	E	Green \ Brown	40mm	Ditto
28	TREB44.32*L	E	Brown	44.32mm	Ditto
29	TREB45*L	E	Brown	45mm	Ditto
30	TREB46*L	E	Brown	46mm	Ditto
31	TREB48*L	E	Brown	48mm	Ditto
32	TREB50*L	E	Brown	50mm	Ditto
33	TREB53*L	E	Brown	53mm	Ditto
34	TREB55*L	E	Brown	55mm	Ditto
35	TREB60*L	E	Brown	60mm	Ditto
36	TREB63.5*L	E	Brown	63.5mm	Ditto
37	TREB68*L	E	Brown	68mm	Ditto
38	TREB70*L	E	Brown	70mm	Ditto
39	TREB76.2*L	E	Brown	76.2mm	Ditto
40	TREB80*L or TREL80*L	E	Green \ Brown	80mm	Ditto
41	TREB88*L	E	Brown	88mm	Ditto
42	TREB90*L or TREL90*L	E	Green \ Brown	90mm	Ditto
43	TREB92*L or TREL92*L	E	Green \ Brown	92mm	Ditto
44	TREB100*L or TREL100*L	E	Green \ Brown	100mm	Ditto
45	TREB105*L	E	Brown	105mm	Ditto
46	TREB110*L or TREL110*L	E	Green \ Brown	110mm	Ditto
47	TREB120*L or TREL120*L	E	Green \ Brown	120mm	Ditto
48	TREB130*L or TREL130*L	E	Green \ Brown	130mm	Ditto
Explain: 1,T ---- Taporel R---- Rod E ---- E-glass type G ---- Green B----- Brown L---- Black 2,Please mark No. and length when place your order.

Table II: Technical Parameters of High temperature resistant E-glass Rod

No.	Description	Unit	Value
1	Density(20±2ºC)	g/cm3	≥2.15
2	Water absorption rate	%	≤0.05
3	Tensile strength	MPa	≥1260
4	Tensile modulus	kN/mm2	≥ 56
5	Bending Strength	MPa	≥900
6	Compressive strength	MPa	≥590
7	Torsional strength	N/mm2	≥90
8	Thermal bending strength	MPa	≥300
9	Dye penetration test	min	≥15
10	Water diffusion test	uA	≤100
11	Power frequency puncture Voltage	KV/cm	≥56
12	Full wave impulse voltage	KV/cm	≥95
13	Heat deflection temperature	ºC	≥155
Applied standard: GB ,DL, IEC ,ASTM and Taporel's enterprise standard.

Based on application, rods are classified into 7 types:
for composite suspension & tension insulators (Diameter Ф16-Ф40)
for composite pin insulators((Diameter Ф24---Ф53)
for composite cross arm insulators(Diameter Ф28-Ф80)
for composite post insulator (Diameter Ф28-Ф130)
for composite surge arresters(Diameter Ф5-Ф40)
for composite fuse cutout (Diameter Ф19-Ф36)
3. Color: Light green, brown, black
Highlight: Performance of our E-glass rods is higher than normal rods by 20%, suitable for application to all kinds of composite insulators manufacture techniques, especially to injection technique.
Specifications
Epoxy Rods for High Voltage Composite Insulators
1.Rated voltage:10kv-1000kv
2.Material: Fiberglass
3.Diameter: 12mm--90mm

Epoxy Rods for High Voltage Composite Insulators

1.Superiormechanical strength to steel, more reliable and light Excellent insulation performance, electric voltage covers from 10kv to 1000kv
2.TYPE:  •Ordinary:    a.E-glass type
                                     b.High temperature resistant type
                 •ECR(acidproof)
3.sepcification:

Tensile  strength (MPA):	≥1350(ordinary )
	≥1467(ECR)
Bending strength(MPA):	≥930
Bending strength under 145oC high temperature(MPA):	≥350
Elastic modulus Gpa	41
Electric  strenght  Epa (kv/mm, 50Hz)	53
Density(g/c m2)	2.1
Ratio of water absorption	0.013-0.04
Linear expansion coefficient (10-6/K)	3.0
Surface resistance(1014Ω)=	3.6
Glass transition temperature TG	130oC
