Fiberglass Sleeving Coated with Silicone Resin-SGS

Name: Fiberglass Sleeving Coated with Silicone Resin-SGS
Brand: all-electronics-online.com
SKU: 808423255
Availability: InStock
Rating: 4.4 (24 reviews)

Price:	US $ 0.034-0.99/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SB-SGS-40
Application:	Wire Harness, Bus Bar
Type:	Insulation Sleeve
Chemistry:	Organic Insulation
Material:	Fiberglass
Thermal Rating:	250 250
Maximum Voltage:	4kv
Certification:	Ts16949, RoHS,Reach
Brand:	Sunbow

Product Description

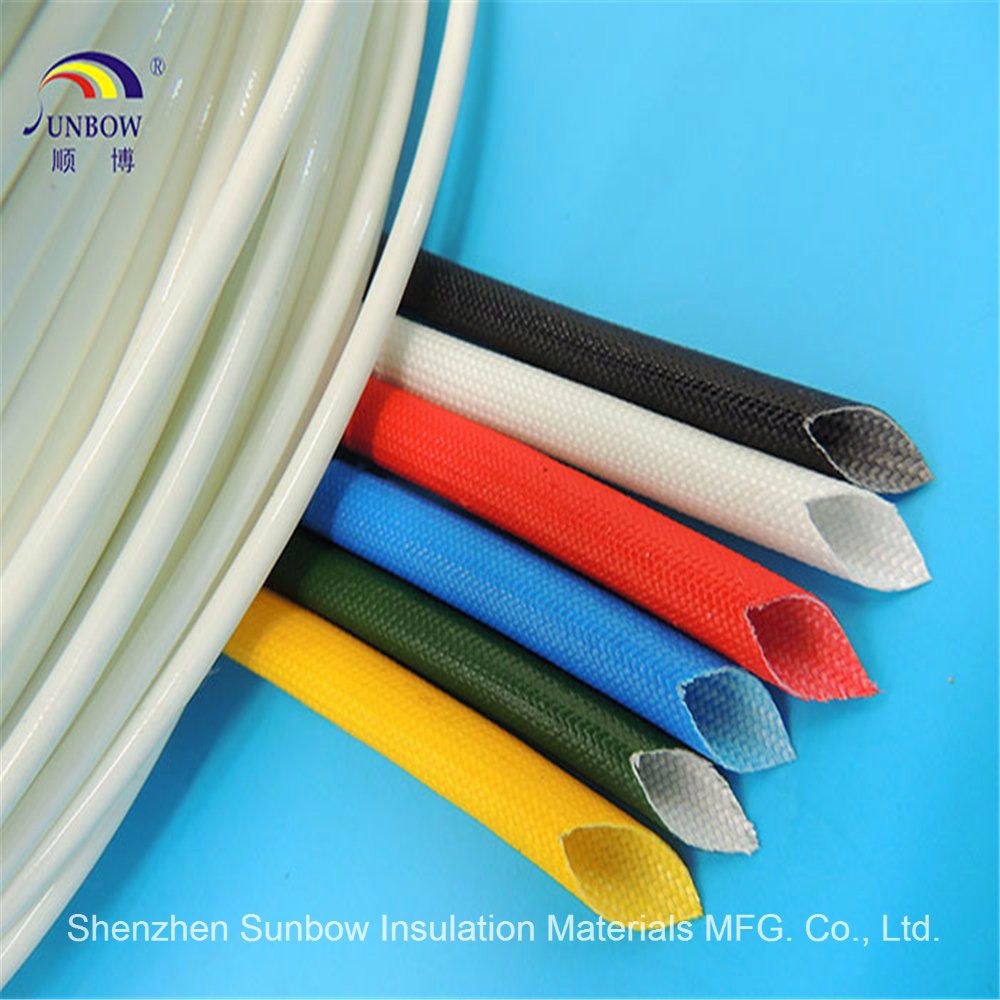

Fiberglass Sleeving Coated With Silicone Resin-SGS

Model Number: SB-SGS-40
Working temperature: 200ºC
Structure
The material content of the SB-SGS-40 is non-alkali fiberglass braided then coated with silicone resin and treated in high
temperature.
Usage
SB-SGS-40 sleeving with its good dielectric strength, flexibility and flame retarding properties makes it high performance
qualities. It can be widely used in insulated or partially insulated conductors, bus bars, component leads, or assemblies
of electrical components etc.
SPECIFICATION

ITEM	PERFORMANCE)		NOTE
DIELECTRIC BREAKDOWN VOLTAGE KV AC	MINIMUM AVERAGE	≥4.0	BEFORE AGED
	MINIMUM SINGLE POINT	≥3.0	BEFORE AGED
	MINIMUM AVERAGE	≥3.0	6 HRS* 245±5ºC 245±5ºC 6HRS AGING
	MINIMUM SINGLE POINT	≥2.0	6 HRS* 245±5ºC 245±5ºC 6HRS AGING
THERMAL ENDURANCE	NO INDICATION OF CRACK	OK	6 HRS* 245±5ºC 245±5ºC 6HRS AGING
FIRE RESISTANCE	VW-1	OK	UL 1441

DIMENSION

INSIDE DIAMETER		WALL THICKNESS MINIMUM (mm)	STANDARD PACKAGE m/roll
NOMINAL(mm)	TOLERANCE(mm)	WALL THICKNESS MINIMUM (mm)	STANDARD PACKAGE m/roll
φ0.5	+0.2, -0.1	≥0.37	200
φ1.0	+0.2, -0.1	≥0.37	200
φ1.5	+0.2, -0.1	≥0.37	200
φ2.0	+0.2, -0.1	≥0.37	200
φ2.5	+0.3, -0.1	≥0.42	200
φ3.0	+0.3, -0.1	≥0.42	200
φ4.0	+0.3, -0.1	≥0.42	200
φ4.5	+0.3, -0.1	≥0.51	100
φ5.0	+0.3, -0.1	≥0.51	100
φ6.0	+0.3, -0.1	≥0.51	100
φ7.0	+0.3, -0.1	≥0.56	100
φ8.0	+0.3, -0.1	≥0.56	100
φ9.0	+0.3, -0.1	≥0.66	100
φ10.0	+0.3, -0.1	≥0.66	100
φ12.0	+1.0, -1.0	≥0.66	50
φ14.0	+1.0, -1.0	≥0.66	50
φ16.0	+1.0, -1.0	≥0.66	50
φ18.0	+1.0, -1.0	≥0.66	50
φ20.0	+1.0, -1.0	≥0.76	25
φ25.0	+1.0, -1.0	≥0.76	25
φ30.0	+1.0, -1.0	≥0.76	25

Color: Standard color is white (other color available upon request).
Package: Packing by rolls or cut upon request.
More picture show

Company show

Company profile
Shenzhen Sunbow Insulation Materials MFG. Co., Ltd, established in 2003, mainly engaged in the research & development, manufacture and sale of various insulation sleeving. And we had leading R&D engineers, had a batch of advantageous equipment and testing instruments. Now we had excess of 10 independent patents, gained high-tech enterprise in Shenzhen.

Our main products include fiberglass sleeving, silicone rubber tube, PVC tube, heat shrink tube, PTFE/FEP tube and so on. All our fiberglass sleeving had been obtained the UL and CSA certificates in 2010 (Cert No: E333178--UZIQ2, VW-1 for flame resistance requirement & E333177--UZFT2/8, 200C, 600V for thermal resistance requirement); Our heat shrink tube, silicone rubber tube and PTFE tube had been obtained UL certificate in 2013 (Cert. No. E360625); PVC tube had been obtained the UL certificates In in Apr.2014 (Cert.No.E467953); In May. 2012, our products successfully had been passed CQC test (Certificate No. CQC12134072554). It provides security for domestic and foreign home appliance supplier in Chinese mainland market.

Till now, we are the only one fiberglass sleeving manufacturer which obtained UL, CSA, and CQC certificates. Also we are the only one manufacturer which can provide certificates for all color and maximum size range (from 0.55mm to 25.4mm). Also all our products are in conformance with the European RoHS requirements, furthermore, based on European new requirements, we re-applied and obtained German PFOA and PFOS certificates and European Reach report.
FAQ
1. Why choose us?
We are the No.1 fiberglass sleeve coated silicone resin in China.
2. What material do you use?
Fiberglass yarn and silicone resin,PVC,silicone,PE,PET. RoHS,Reach,UL certificated
3. How's the package?
Packed by roll then rolls by carton. Also can cut and pack as requested.
4. Where is your factory?
In Shenzhen. The loading port here is Yantian or Shekou.
5. How many employees are there in your company?
More than 50.
6. How many people are there in your R&D department?
More than 5 desingers,.
7. How do you control the quality?
We have 8 QC team.
Each process has one QC. We check carefully before shipment.
8. What's your sample lead time?
can ship right now if in stock.5 - 7 working days if the items are out of stock.
9.Is the sample free charge?
Yes,it is free but the express fee should be paid by buyer.
10.What's your mass production lead time?
7 - 15 working days.
11. What's your payment terms?
L/C at sight, T/T in advance,Western Union,Paypal.

Shenzhen Sunbow Insulation Materials MFG. Co., Ltd, established in 2003, mainly engaged in the research & development, manufacture and sale of various insulation sleeving. And we had leading R&D engineers, had a batch of advantageous equipment and testing instruments. Now we had excess of 10 independent patents, gained high-tech enterprise in Shenzhen.

Our main products include fiberglass sleeving, silicone rubber tube, PVC tube, heat shrink tube, PTFE/FEP tube and so on. All our fiberglass sleeving had been obtained the UL and CSA certificates in 2010 (Cert No: E333178--UZIQ2, VW-1 for flame resistance requirement & E333177--UZFT2/8, 200C, 600V for thermal resistance requirement); Our heat shrink tube, silicone rubber tube and PTFE tube had been obtained UL certificate in 2013 (Cert. No. E360625); PVC tube had been obtained the UL certificates In in Apr. 2014 (Cert. No. E467953); In May. 2012, our products successfully had been passed CQC test (Certificate No. CQC12134072554). It provides security for domestic and foreign home appliance supplier in Chinese mainland market. Till now, we are the only one fiberglass sleeving manufacturer which obtained UL, CSA, and CQC certificates. Also we are the only one manufacturer which can provide certificates for all color and maximum size range (from 0.55mm to 25.4mm). Also all our products are in conformance with the European RoHS requirements, furthermore, based on European new requirements, we re-applied and obtained German PFOA and PFOS certificates and European Reach report.

Our products are widely used in H&N Motor, home appliance, electric heating equipment, Lighting, electronic instruments, wiring harness, transformer, power adapter, communication equipment, high/low voltage power distribution complete equipment, petrochemical industry, coal-mining industry, electric system and space flight and aviation area etc.

Due to business expansion, our factory moved to Gongming street, Guangming New District in Shenzhen. It occupies nearly 10, 000 square meters. We successfully passed ISO9001: 2008 and TS16949 international quality management system, now ISO14001 system is also pushing.

Over the years, we have been enjoying good reputation in our industry by adhering to the business philosophy of "Faith, Practical, and Responsive. " We also get supports and trusts from many international well-known enterprises. Thanks greatly for so many help and cooperation from our partnership, such as Philips, Whirlpool, Conair, Emerson, GE, Black & Decker, SEB, ABB, Schneider, Siemens, Electrolux, Toshiba, Panasonic, Hitachi, Mitsubishi, Samsung, China's Huawei, Haier, CRRC, and many other famous enterprises' trust directly and indirectly; Furthermore, as the second level supplier for automotive system, Sunbow products have been indexed in IMDS. We also have successfully become the qualified supplier for Volvo, Land-Rover, GM, Honda, Suzuki, Nissan, Hyundai and so on.

We know that our task is long-term and arduous, but opportunities are aside with challenges. We "Sunbow" people will take on a new look and work hard to provide our customers the best quality products, first-rate service, the most competitive price and the most reliable technical supports. Return to our customers, return on the community.
