Fig 8 Aerial Fiber Optic Cable
| Price: |
US $ 0.258-0.325/Piece |
| Min Order: |
2000/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
Aerial |
| Application: |
Communication |
| Certification: |
ISO9001 |
| Sheath Material: |
PE/LSZH |
| Type: |
Fiber Optic Cable |
| Connection Structure: |
Fiber Optic Cable |
Product Description

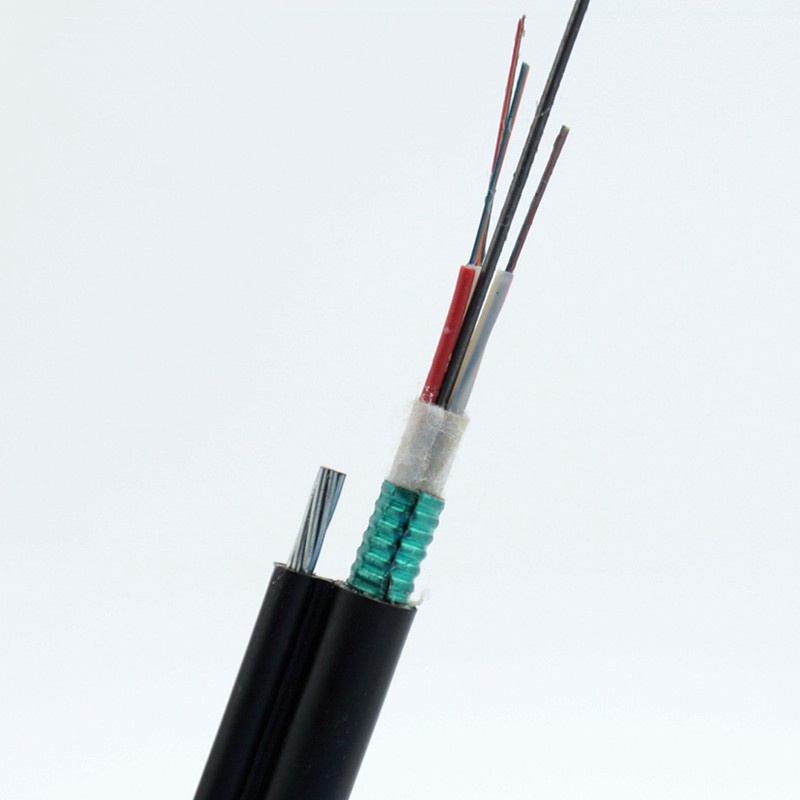

GYTC8S Aerial Fiber Optic Cable
: For self-supporting use2: For long Distance communication and LAN3: Water proof layer between steel tape and cable core4: 8 figure cross section5: Steel messenger wire6: Double coated PE corrugated steel tape under PE sheath7: Excellent water proof layer8: Steel tape armored, excellent anti-crush9: Good anti-bullet10: Messenger wire as the support member made excellent anti-pull performance and easy installationFigure 8 self-support optical fiber cable GYTC8SApplication:The figure 8 cables are suitable for installation in aerial environment for long haul communication.Features:1. Up to 144 fibers.2. The loose tube stranding technology make the fibers have good secondary excess lenth and allow the fibers free movement in the tube. Which keeps the fiber stress-free while the cables is subjected to longitudinal stress.3. Corrugated steel lape armored and PE outer sheath providing properity crush resistance and gun shot resistance features.4. Cross section shows figure 8.5. Stranded wires as sell supportiong member providing excellent strain performance and convenlent installation.Technical data:Fiber core Stranded Wire Cable diameter (mm) Messenger cable Diameter (mm) Cable Height (mm) Cable weight (kg/kg) Min. Bend radius Max. Running tension (N) Safe running tension (N) Min. Breaking tension (N) Max. Crush loading (N/100mm)Static Dynamic Short term Long term2-30 1× 7-4.2 9.8 6.4 18.8 210 10times cable diameter 20times cable diameter 7000 3500 15550 2000 100032-36 10.3 19.3 23038-60 10.7 19.7 23062-72 11.3 20.3 25574-96 12.9 21.9 290Description: Armored fiber optic cable GYTY53.The standard loose tube armored fiber optic cable to enhance. GYTY53We can supply various kinds of fiber optic cable, such as GYXTW(S)(Y), GYTS(GYTA), GYXTC8(GYTC8S), GYFTY(GYTY), GYTA(S)(Y)53, ADSS, GJFJV, etc. We can also provide OEM service and welcome customer's design.Advantages:Outdoor fiber optic cable. GYTY53 was double jacket cable, the different from GYTA53. GYTY53 is one steel tape armored.1. Low dispersion and attenuation2. Proper design, precise control for fiber excess length render the cable excellent mechanical and environmental properties.3. Double-jacket structure make cable have nice properties of moisture resistance and crush resistance4. with small cable diameter, light cable weight, easily to lay5. We can also provide OEM service, and the packing as customer's requirement.Application: Long-distance communication, local trunk line, CATV&computer networks systemInstallation method: Duct, aerial and direct burialSpecification:Fiber count Out Dia. (mm) Cable Wt. (kg/km) Max. Tensile strength(N) Max. Crush resistance(N)Long term Short term Long term Short term2-36 14.6 230 ≥ 1000 ≥ 3000 ≥ 1000 ≥ 300038-72 16.2 29074-96 17.9 32598-120 19.6 406122-144 21.4 446146-216 21.9 446

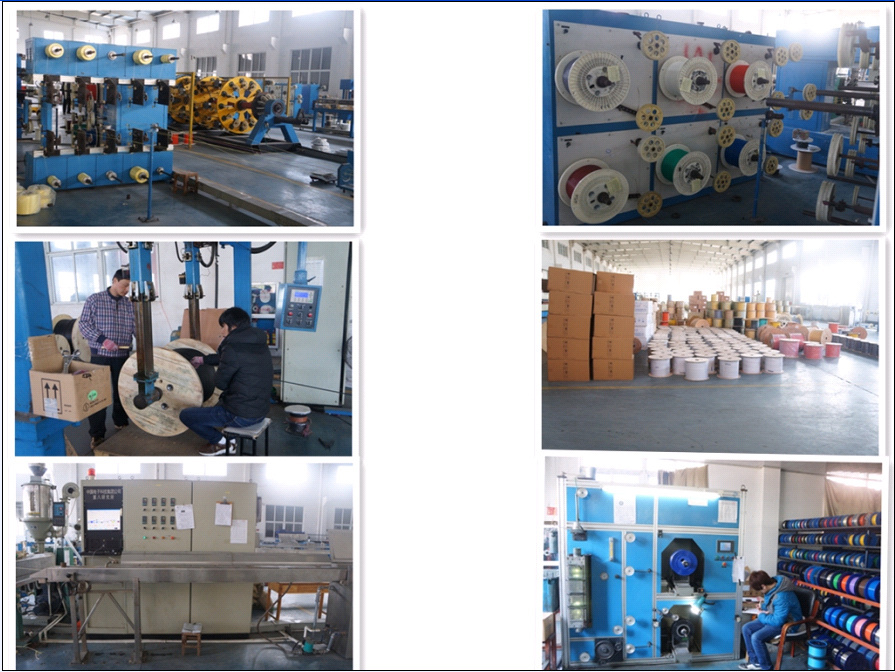

Ningbo Geyida Cable Technology Co., Ltd. is located in the tsz east industrial zone, cixi city of zhejiang province, located in south of Shanghai. In the east is the world-famous deepwater port, ningbo, traffic is convenient, the environment is superior. The factory covers an area of 20, 000 square meters, is a modern enterprise system established in accordance with the high-tech companies. Company introduction in modern technology and equipment, the introduction of modern management methods and systems. Modern quality management program, make product in every link in production got the quality guarantee. The company strictly according to ISO9002: 2000 quality management standard operation, international from product design, production, inspection, the whole management process of the service quality.
Company main product: All kinds of outdoor optical cable, indoor optical cable, optical line jumpers, optical fiber accessories etc. The company will continue to fight in the same storm-tossed boat "business" spirit of enterprise, in line with "brand, cooperation, innovation" business philosophy, adhere to the "customers first" service concept. Committed to build brand integrity, optic communications market oriented, innovative efforts to develop and produce products with excellent performance of cable. Enable the company to become the first-class modernized enterprise and unremitting efforts. Hope in the mutual benefit and win-win with domestic and foreign enterprises on the basis of establishing business relations and cooperation, and to develop and create a brilliant future with you! !
