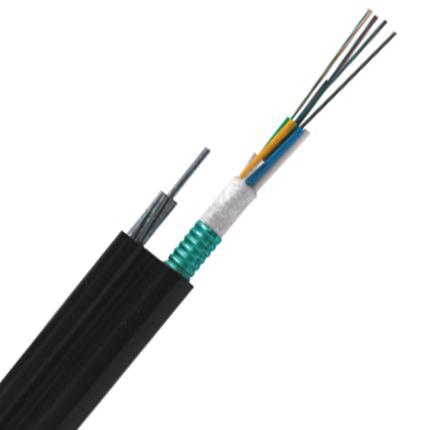

Figure 8 Cable-Gytc8y Optical Fiber Cable

Figure 8 Cable-Gytc8y Optical Fiber Cable
Price: Negotiable/Meter
Min Order: 1000/Meter
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
Prod Model: GYTC8Y
Application: Communication
Type: Single-mode Fiber
Connection Structure: SC
Certification: ISO9001
Brand: Yinet

Product Description

The fibers,250 um,are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound.A steel wire locates in the center of core as a metallic strength member.The tubes(and fillers)are stranded around the strength member into a compact and circular core.After an  Aluminum polyethylene laminate(APL) moisture barrier is applied around the cable core,this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE)sheath to be figure 8 structure.Figure 8 cable GYTC8A,GYTC8S are also available on request.This type of cable is specially applied for self-supporting aerial installation.

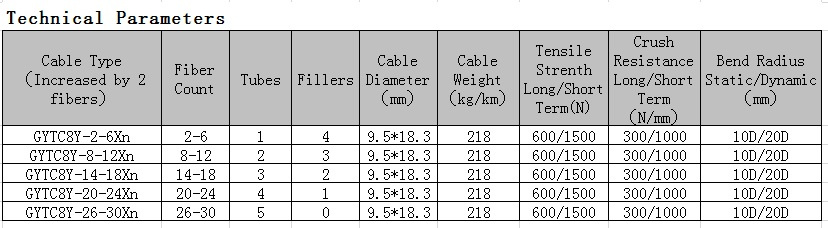

Datasheet

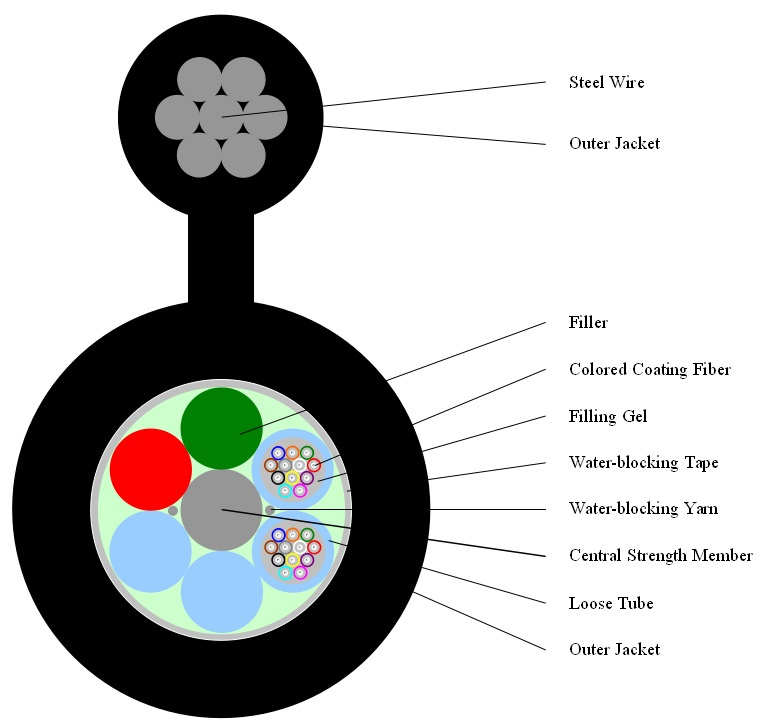

Structure



Specification
1.High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost
2.Good mechanical and temperature performance
3.High strength loose tube that is hydrolysis resistant
4.Special tube filling compound ensure a critical protection of fiber
5.The following measures are taken to ensure the cable water resistance:
       Steel wire used as the central strength member
       Loose tube filling compound
       100% cable core filling

Application


 1.Widely used in long distance communication, communication, bad environment, etc.;
 2.Is suitable for the aerial, pipeline, directly buried, the moistureproof, rodents and other high places;
 3.Suitable for to 40 ºC, 70 ºC within the scope of installation, operation or storage.

Standard

GYTC8Y cable complies with Standard YD/T901-2009 as well as IEC60794-1





Our team has many years of experience in the field of communication. Especially in Ethernet and wireless networking products. Our engineers from companies such as tp-link and enhances our R & D capabilities and product quality. At the same time we are also microsemi and Realtek's strategic partners.

Our main products include power over Ethernet switch, wireless access point, wireless router, outdoor CPE and fiber optical transceiver. Also we supply fiber switch and media converter, Stable performance and competitive price.

Phynam communications adhering to "create bring convenience to the life", with innovative products and reliable product quality to win customer trust. Phynam communication based on customer demand, supply PoE to the terminal (PTTT), optical fiber to the desktop (FTTD), and wireless products, provide the perfect solution.

Fhynam communication PoE to the terminal product mainly includes PoE 10/100M/1000M series PoE (power over Ethernet) switches, PD and PoE injector. My company POE switches are widely used in video monitoring, wireless city, the communication between IP telephone, data acquisition etc. Phynam forward the concept of POE to terminal, provides many kinds of POE products in a reliable way.

Phenam communication wireless cover products such as wireless router, wireless AP, mainly used in public buildings, shopping malls hotels, office buildings and other occasions, to provide users with stable and reliable, fast and convenient wireless network.

Phynam communication FTTD products mainly include fiber optic router, fiber optic Ethernet switches, fiber optic network adapter, optical transceiver and fiber patchcord. FTTD is the final solution to solve broadband highway "last 1 meter" transmission bottleneck. Phynam communication was originally proposed the concept of optical communication field "last 1 meter", and make unremitting efforts to solve it.

Phynam adhering to the idea of "Create benefits to the public life", with innovative products and reliable quality to win customer's trust. Phynam believe that to create is the soul of the products and the quality is the body of the products. Let's creative work can benefit the public life.
